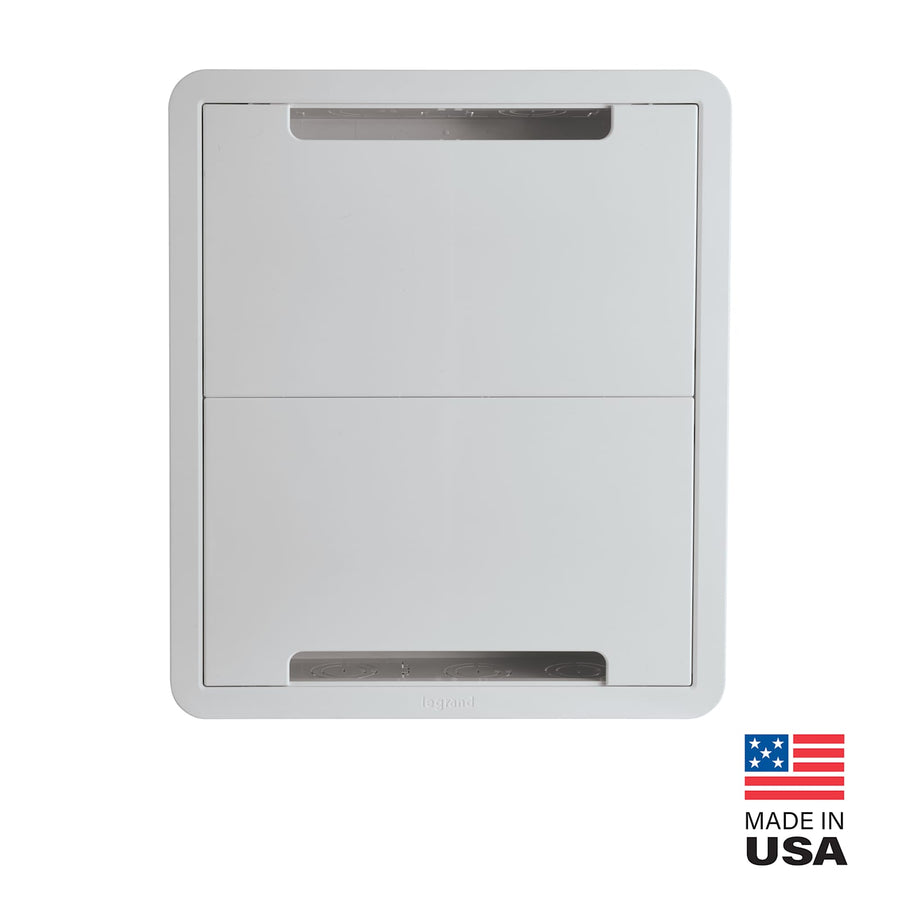

17 Inch Dual-Purpose In-Wall Enclosure
17-inch dual-purpose in-wall enclosure for AV components and structured wiring, featuring Wi-Fi transparent ABS construction
The On-Q ENP1700NA is a 17-inch dual-purpose in-wall enclosure designed for the storage and distribution of structured wiring and AV components. Constructed from Wi-Fi transparent ABS material, this enclosure is built to manage wireless components and AV devices at point-of-use locations, such as directly behind a TV or within media centers. It serves dual roles by accommodating networking equipment, access points, and switches, or acting as a dedicated space for media hardware. The unit features a universal mounting grid to maximize compatibility with 3rd party devices without requiring extra brackets. For a professional finish, the included trim ring conceals drywall cutouts, while the split cover is designed to snap into place for easy access to components even when partially covered by a mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | White |
| Conductor Material | Gold |
| Material | ABS |
Resources
You'll need these with it
2 Inch Rubber Grommet Pack for Plastic Enclosure - 5 Pack
AC1034$2.99
12-Port Cat6 Network Interface Module
AC1015$164.99
5 Inch Mounting Plate Combo Kit
AC1050EMK$29.99
Cable Management Clips
AC103520$24.99
Fiber Management Spools Pair
AC1041$5.49
5 Inch Mounting Plate with 1.5 Inch Elevation
AC1050$24.99
Duplex Power Kit
F7526$22.99
Forward Combo Pack - Small Device Mounting Clamps and Keyhole Post Clips
AC1051RCKH4$8.99
On-Q 6 Outlet Enclosure Surge Protector with One USB-A and One USB-C
AC1062$34.99
Questions about this part
Will the ENP1700NA work with my wireless devices?
Yes. The ABS construction is Wi-Fi transparent, making it suitable for housing wireless components like access points or streaming devices.
Can I mount this behind a television?
This enclosure can be placed behind most TV wall-mounts, including SANUS premium TV mounts, to hide hardware like the Samsung One Connect Box or Apple TV.
What hardware is needed for a retrofit installation?
The ENP1700NA includes drywall clips, allowing it to be used for both new construction and retrofit applications.
How do I manage cable entry and exit for this enclosure?
The unit features knockout configurations for in-wall wired connections and a cable pass through on the cover for outside cable connections.
Does this enclosure support power integration?
Yes, it includes two AC knockouts specifically designed to accommodate a single gang junction box for powering devices within the enclosure.
