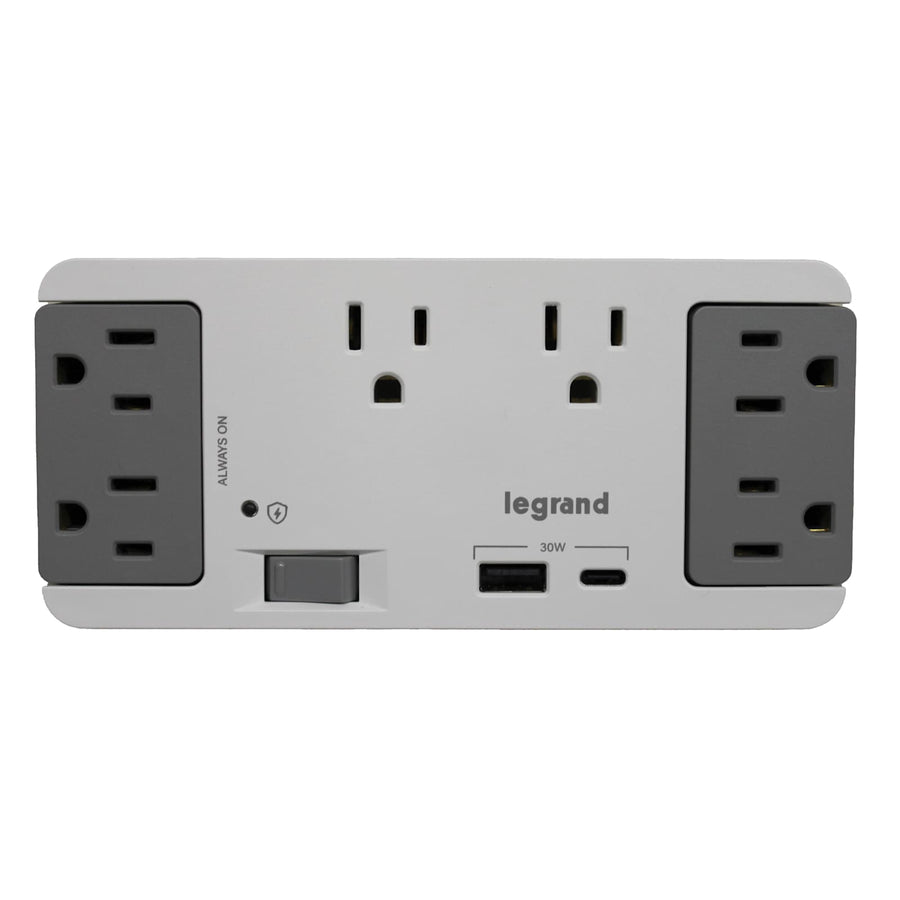

On-Q 6 Outlet Enclosure Surge Protector with One USB-A and One USB-C
Enclosure surge protector with 6 grounded outlets, one USB-A, and one USB-C port, featuring 1080 Joules of protection
The On-Q AC1062 surge protector is designed for immediate deployment by simply plugging it into an existing bottom outlet. This device provides 6 grounded receptacles and two USB ports—one USB-A and one USB-C—delivering a total of 30W of power for mobile device charging. To accommodate larger plug configurations without blocking adjacent outlets, the unit features 90-degree rotating outlets at both ends. This surge protector offers 1080 Joules of 3-line surge protection and includes an always-on indicator alongside a convenient power cycle button for easy resetting. Constructed from ABS plastic, the AC1062 is built to integrate with all On-Q enclosures and standard power outlets. It is UL listed (UL 1310, UL 1449, UL 498A) and is backed by a 5-Year Limited Warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 2.91 in (7.4 cm) |
| Length | 6.3 in (16 cm) |
| Number of USBs | 2 |
| Overall Dimensions | 6.3" x 2.91" x 2.28" (160.02 x 73.91 x 711.2mm) |
| Package Count | 1 |
| Package Depth | 3.1 in (7.9 cm) |
| Package Height | 2.8 in (7.1 cm) |
| Product Weight | 0.64 lbs (0.3 kg) |
All other specifications 19
| Receptacle Spacing | 0.53 in (1.4 cm) |
| USB Amperage | 3 Amp |
| USB Wattage | 30 W |
| Watts | 30 W |
| Color | White |
| Joule Rating | 1080 |
| Material | ABS Plastic |
| Mounting Style | Plug |
| Number of Duplex | 3 |
| Number of Ports | 8 |
| Number of Receptacles | 6 |
| Number of Units Per Shelf | 2 |
| Outlet Count | 8 |
| Surge Protection Type | Yes |
| Swivel | Yes |
| UPC | 804428435204 |
| USB Port | Yes |
| UL Listing Number | UL 1310UL 1449UL 498A |
| Warranty | 5-Year Limited Warranty |
Resources
Questions about this part
How do I install the On-Q AC1062?
The AC1062 is a plug-in style surge protector that installs simply by plugging it into an existing bottom outlet for immediate use.
Will the AC1062 fit in my On-Q enclosure?
Yes, this unit is specifically designed to integrate with all On-Q enclosures and is compatible with standard power outlets.
Can I use the USB ports for high-speed charging?
The AC1062 features one USB-A and one USB-C port that provide 30 W of power for your devices.
How do the rotating outlets work on the AC1062?
Both ends of the surge protector feature 90-degree rotating outlets, allowing you to accommodate larger plugs without losing access to neighboring outlets.
What documentation is available for the AC1062 installation?
You can refer to the AC1062 Installation Manual (PDF) for technical guidance or the AC1062 Sell Sheet (PDF) for product overview details.
