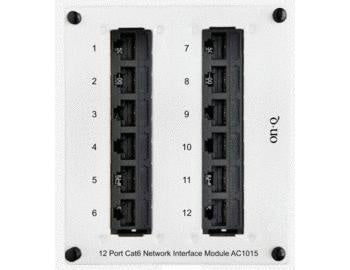

12-Port Cat6 Network Interface Module
12-port Cat6 interface module for reconfiguring outlets between voice and data using patch panel simplicity
The On-Q AC1015 is a high-density mini patch panel designed to simplify network reconfiguration. This 12-port Cat6 module allows an installer to easily switch a specific outlet from a voice connection to a data connection, or vice versa, within the structured wiring system. It is specifically engineered to meet Cat6 specifications and provides connectivity for up to 12 individual data or voice connections. This module includes a 2-bay bracket to ensure simple mounting within On-Q style enclosures. For ease of field termination, the RJ45 ports are labeled 1 through 12 and feature color-coded labels to assist with T568A termination.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Resources
You'll need these with it
Questions about this part
Can I use this module to switch an outlet from voice to data?
Yes, the AC1015 allows you to easily switch an outlet from voice to data or from data to voice via the patch panel.
What is the difference between the AC1015 and the AC1014?
The AC1015 is the Cat6 version of the module, whereas the AC1014 is the Cat5e version.
What kind of enclosure does this mount in?
This module comes with a 2-bay bracket specifically for mounting in On-Q style enclosures.
How many ports are on this module?
The AC1015 is a high-density module providing connectivity for 12 data or voice connections.
Does this module support T568A wiring?
Yes, the module features color-coded labels to facilitate T568A termination.
