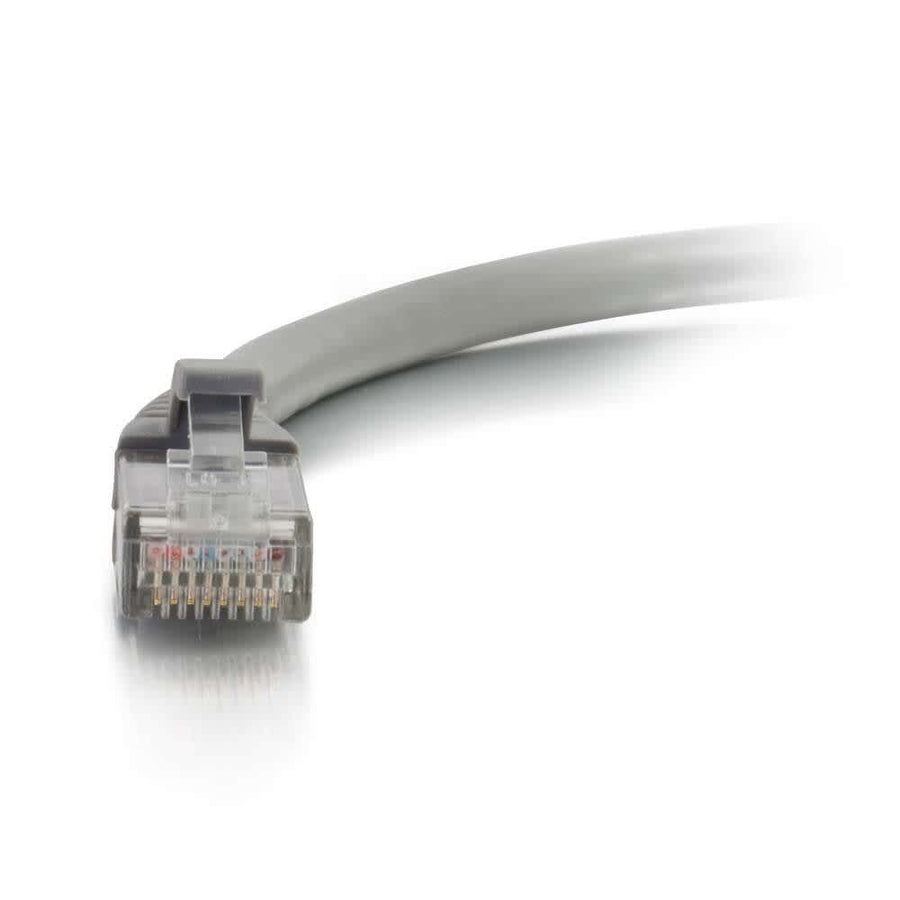

15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
15ft Cat6a Unshielded UTP patch cable with snagless boots, gray PVC jacket, and 26AWG stranded copper conductors
The C2G CG00667 is a 15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density environments. This gray patch cable supports 10GBase-T equipment, making it a reliable choice for connections between network adapters, hubs, switches, routers, modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring high-performance 10 Gigabit data transmission over a 4-pair copper cable for distances up to 100 meters. The cable features 26AWG (7/0.16) bare copper stranded conductors with HDPE insulation and a PVC jacket. To simplify management in crowded racks, the RJ-45 male connectors include snagless PVC hoods that protect the locking tab. For organizational purposes, each individual cable features a length label. This cable is rated for temperatures up to 75°C and uses a 568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006671 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00701$25.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is the C2G CG00667 suitable for 10 Gigabit Ethernet applications?
Yes, this Cat6a cable supports 10GBase-T ports and equipment, enabling 10 Gigabit data transmission over 4-pair copper cabling.
Will this cable work in high-density patch panels or switches?
The snagless hood design on the RJ-45 male connectors is specifically intended to protect the tabs in high-density switch applications.
What is the maximum transmission distance for this Cat6a cable?
This cable allows for 10 Gigabit data transmission for connections up to 100 meters.
What is the difference between this and the blue version?
The CG00667 is the gray version; the CG00701 is the 15ft blue equivalent in the same series.
What testing standards does this patch cable meet?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
