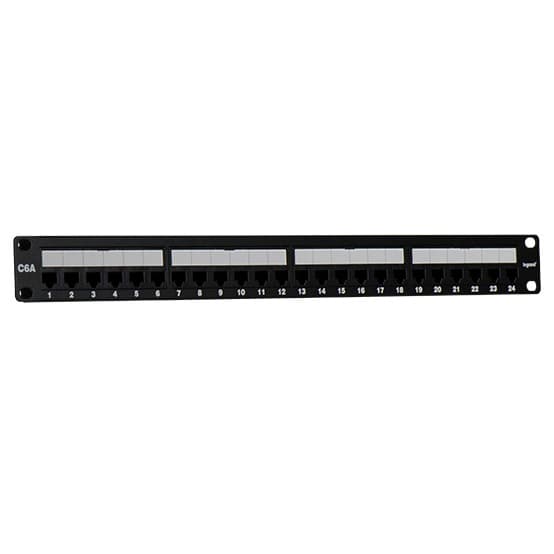

Cat6a 24-Port Rack Mount Patch Panel
24-port rack mount patch panel supporting Cat6a for 10 Gbps Ethernet networks and high-bandwidth digital media
The On-Q WP246A is a 24-Port Rack Mount Patch Panel designed to support high bandwidth 10 Gbps Ethernet networks. Fully tested up to 500 MHz, this component meets the TIA T568B.2-10 standard to ensure reliable connectivity for high-definition digital media content. It features 110-style termination that is universally wired for both T568A and T568B configurations. For efficient installation, the panel includes front labels for port identification and enhanced rear panel cable management to accommodate large conductor Cat6a cables. Its compact dual rack-mount design is suitable for residential or light commercial rack installations. This product is part of the On-Q 25 Year System Warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Number of Ports | 24 |
Resources
Questions about this part
What network speeds does the WP246A support?
This patch panel is designed for 10 Gbps Ethernet networks and is fully tested up to 500 MHz bandwidth.
Can I use this with T568A or T568B wiring?
Yes, the WP246A features universal 110 termination that supports both T568A and T568B wiring standards.
What is required for a clean installation of this panel?
The panel includes cable ties and features enhanced rear panel cable management to help manage large conductor Cat6a cables.
Is the WP246A part of a warranty program?
Yes, this component is part of the On-Q 25 Year System Warranty.
How are the ports identified once installed?
The patch panel includes front labels to allow for easy identification of each of the 24 ports.
