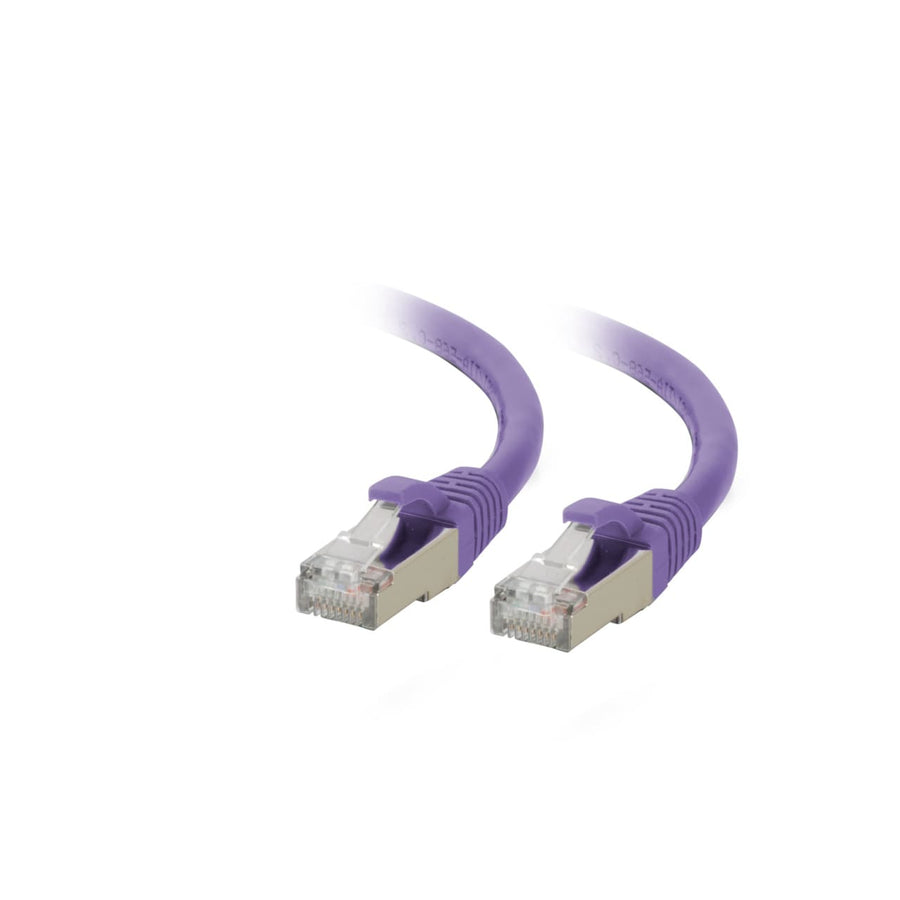

15ft (4.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Purple
Purple 15ft (4.6m) Cat6A STP snagless patch cable, 10 Gbps data rate, shielded to protect against electromagnetic interference
The C2G07402 is a 15 ft (4.6 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in purple. This shielded twisted pair (STP) cable is engineered to protect high-speed 10 Gigabit network connections from noise and electromagnetic interference (EMI). Designed for 10GBase-T ports and equipment, it is suitable for use with network adapters, hubs, switches, routers, and patch panels. This cable supports 10 Gbps data transfer rates and is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. Each individual pair is bonded together to maintain twist-spacing throughout the line, which minimizes Near-End Crosstalk (NEXT). The cable features 26 AWG stranded copper conductors and 50 µ in gold plating on the RJ-45 male connectors. The snagless, booted connector design is ideal for high-density environments, protecting the RJ-45 lock from damage during installation. This cable operates in temperatures ranging from -4°F (-20°C) to 176°F (80°C) and is RoHS and REACH compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120074021 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this C2G07402 cable work for 10 Gigabit Ethernet?
Yes, this Cat6a cable supports 10 Gbps data transfer rates and is designed for 10GBase-T ports and equipment.
Is the C2G07402 suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended for high-density environments to protect the RJ-45 lock from being damaged.
What is the maximum operating temperature for this cable?
The operating temperature range for this cable is -4°F (-20°C) up to 176°F (80°C).
Does this cable provide protection against electromagnetic interference?
Yes, the shielded twisted pair (STP) design is constructed to protect high-speed networks from noise and EMI.
What testing standards does the C2G07402 meet?
This patch cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements.
