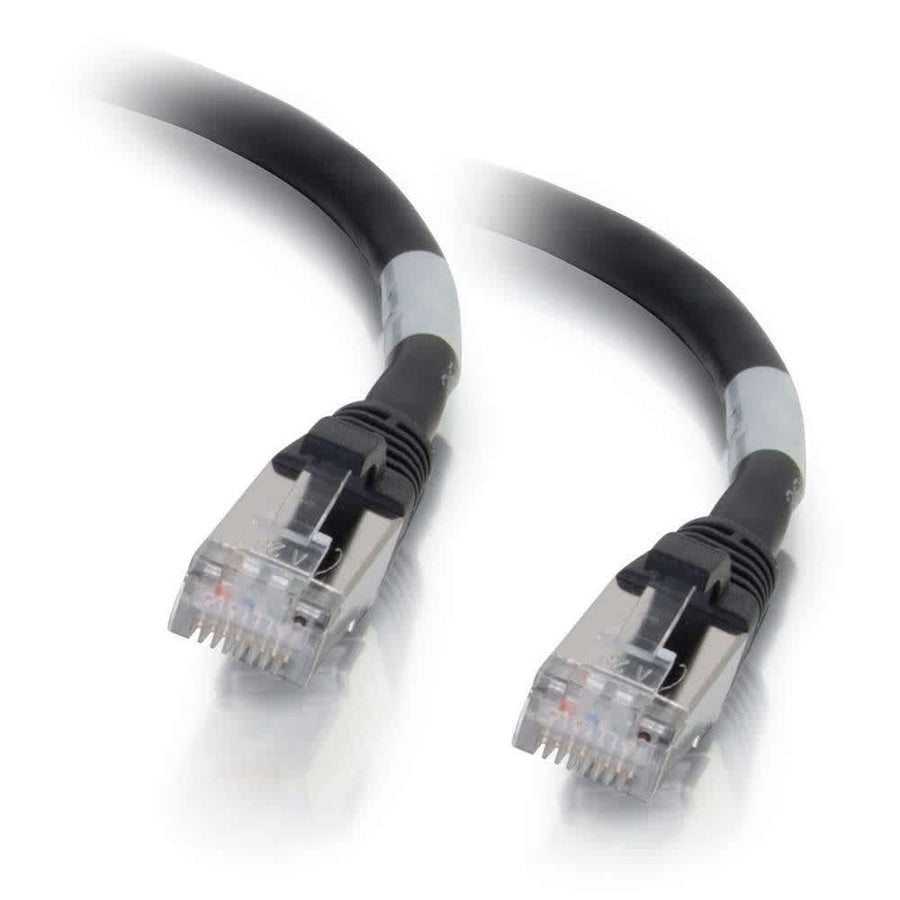

15ft (4.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat6a patch cable for 10GBase-T networking, 15 ft length, featuring snagless boots and stranded copper conductors
The C2G CG00718 is a 15 ft (4.6 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-speed 10GBase-T applications. This black patch cable is engineered to protect network connections from electromagnetic interference and noise, making it an essential component for bandwidth-intensive voice, data, and video distribution. The cable features stranded copper conductors with 26AWG (7/0.16) bare copper wiring, utilizing FMPE (Foam Polyethylene) insulation to ensure performance. Each individual pair is bonded together to maintain twist-spacing from the termination point to the end of the line, which helps minimize Near-End Crosstalk (NEXT) levels. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The snagless design includes PVC connector hoods and booted connectors to protect the RJ-45 male terminations. This cable is suitable for use with network adapters, hubs, switches, routers, and patch panels, and is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007180 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6a cable support 10Gbps speeds?
Yes, this cable is designed for use with 10GBase-T ports and equipment, supporting high-speed 10 Gigabit network connections.
What type of shielding does the CG00718 use?
The CG00718 is a Shielded STP (SSTP) cable with 26AWG stranded copper conductors and bonded pairs to minimize Near-End Crosstalk (NEXT).
What is the operating temperature range for this patch cable?
This cable is rated for operating temperatures from -4°F to 176°F (-20°C to 80°C).
Is this cable suitable for high-interference environments?
Yes, the Shielded STP construction is specifically intended to protect high-speed 10 Gigabit networks from electromagnetic interference and noise.
What is the termination standard for this cable?
The CG00718 uses the 568B wiring scheme for its RJ-45 male terminations.
