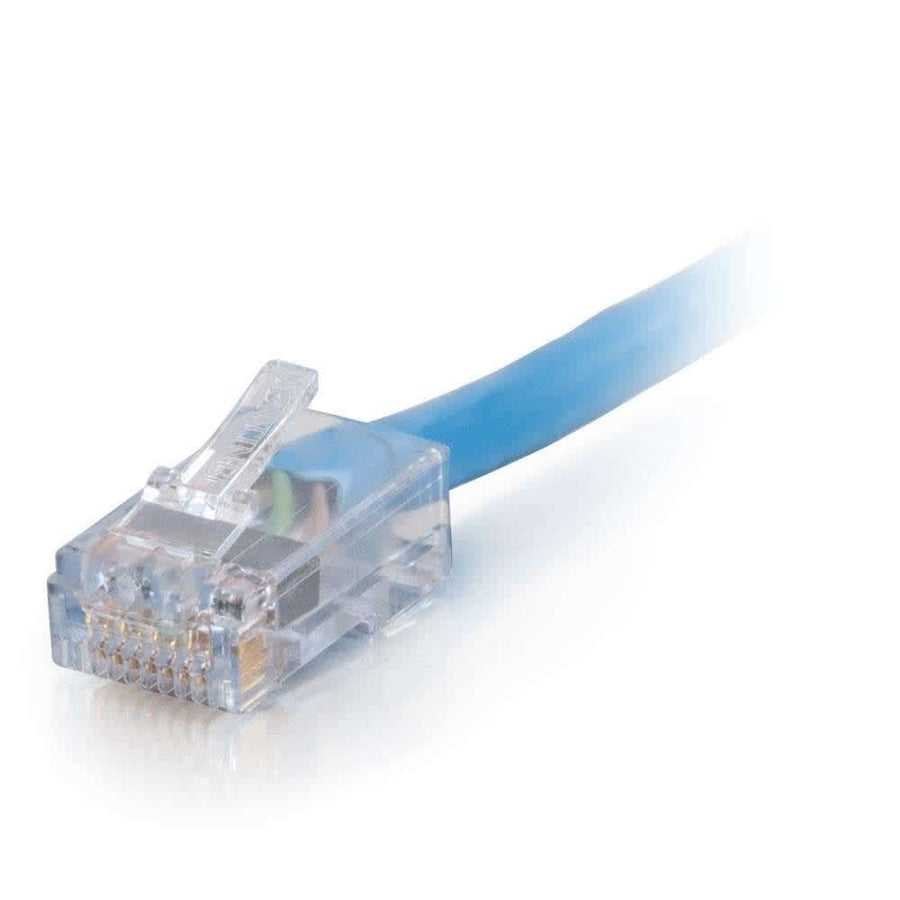

15ft (4.6m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
15ft blue Cat6 plenum patch cable, CMP rated, with 23AWG stranded copper conductors
The C2G CG15283 is a 15 ft (4.6 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for high-bandwidth applications in environments with strict building codes. This blue cable features a CMP-rated, FT6-rated plenum jacket, making it suitable for routing through plenum spaces such as raised floors or dropped ceilings in commercial settings like hospitals and schools. Constructed with 23AWG stranded copper conductors, this cable is tested to 550MHz and meets all TIA/EIA-568-C.2 standards. The design is engineered to minimize Near-End Crosstalk (NEXT) and reduce both impedance and structural return loss (SRL). Each end is equipped with 50 micron gold plated RJ-45 male connectors. This non-booted cable is TAA compliant and is rated for both in-wall and plenum applications, providing reliable connectivity for voice, data, and video distribution.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.41 lbs (0.2 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152835 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Is the C2G CG15283 suitable for plenum air spaces?
Yes, this cable features a CMP-rated and FT6-rated jacket, making it suitable for routing through plenum spaces in commercial buildings.
What is the maximum frequency rating for this Cat6 cable?
The CG15283 is tested to 550MHz and is designed to meet all TIA/EIA-568-C.2 standards for Cat6 performance.
Does this cable meet TAA compliance requirements?
Yes, the CG15283 is TAA compliant and meets NDAA 889 requirements for government and commercial installations.
What is the conductor specification for this patch cable?
This cable uses 23AWG stranded copper conductors and features 50 micron gold plated RJ-45 male connectors.
What other versions of the CG15283 series are available?
The series is available in other colors including Black and Gray and comes in lengths up to 100ft.
