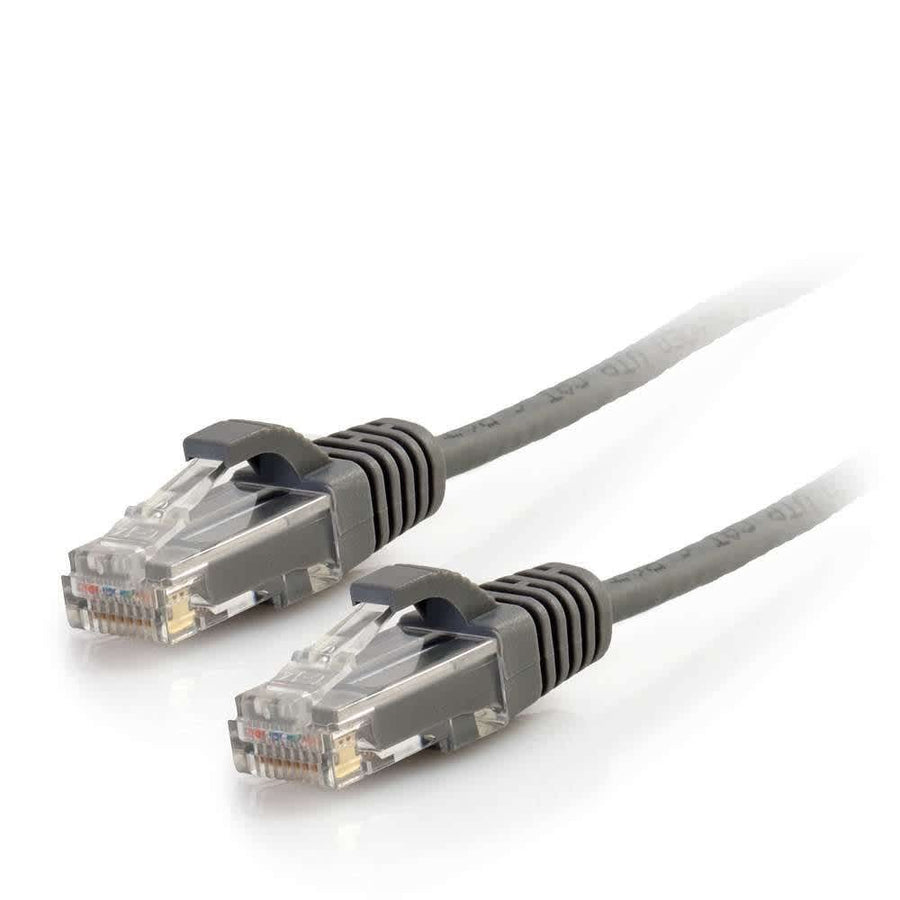

15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Gray
15ft Cat6 Slim Unshielded UTP Snagless Patch Cable in Gray, featuring 28 AWG conductors for high-density environments
The C2G02218 is a 15ft (4.6 m) Cat6 Slim Unshielded UTP Snagless Patch Cable designed specifically for high-density datacenter applications. Utilizing 28 AWG stranded copper conductors, this cable provides a 36% reduction in diameter compared to standard Cat6 network patch cables. This slimmer 0.15 in (3.8 mm) profile reduces the cable surface area, which facilitates increased airflow within crowded enclosures. The reduced diameter and 0.6 in (15.2 mm) bend radius allow for easier routing through cable management panels. This cable is engineered for fast Ethernet networks supporting bandwidth-intensive voice, data, or video distribution. It features molded, snagless PVC boots to provide strain relief and prevent snags during installation. For high-performance channel layouts, the maximum recommended channel is 96 meters, allowing for 90 meters of horizontal cabling combined with up to 6 meters of these slim patch cables. This product is compliant with ANSI/TIA-568-C.2 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022183 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What is the maximum channel length for this C2G02218 cable?
For a 96 meter channel, you can use up to 6 meters of this slim patch cable alongside 90 meters of horizontal cabling.
Is the C2G02218 suitable for PoE/PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation due to the reduced diameter.
Will this cable fit in high-density rack environments?
Yes, the 0.15 in (3.8 mm) diameter and 0.6 in (15.2 mm) bend radius are optimized for routing through tight cable management panels.
What is the maximum data transfer rate of this Cat6 cable?
This Cat6 cable supports a data transfer rate of 10 GBPS and operates with a 500 mHz bandwidth.
Does this cable require additional components for a full installation?
This is a patch cable; depending on your setup, you may need accessories like the 48-Port Rack Mount Patch Panel (48845CC6) or Network Interface Modules (AC1068).
