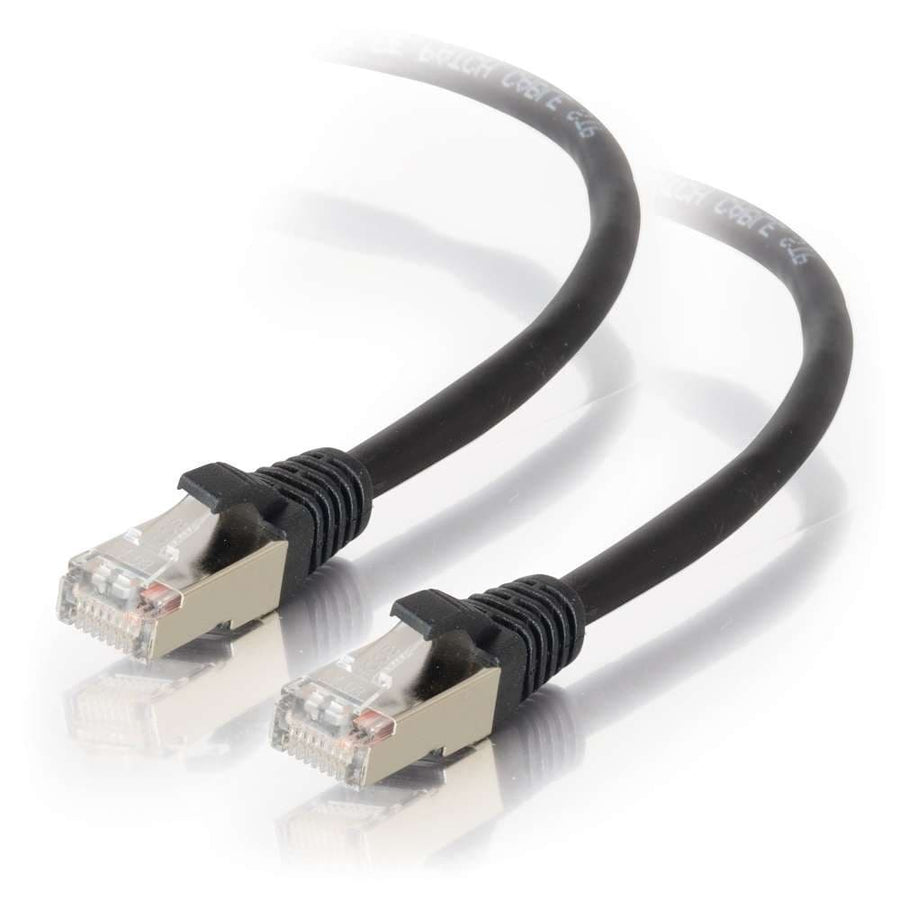

150ft (45.7m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
150ft Cat5e shielded STP patch cable in black, featuring snagless boots and 24 AWG stranded copper for high-interference environments
The C2G CG28717 is a 150ft (45.7 m) Cat5e shielded STP Ethernet network patch cable designed specifically for high-interference environments. This F/UTP cable utilizes an overall cable foil shield combined with a drain wire to provide essential protection against EMI/RFI noise and electromagnetic interference. Each cable features 24 AWG stranded copper conductors and is built to meet or exceed industry standards for NEXT and return loss. The termination uses shielded, 50 micron gold-plated RJ45 male connectors, and the snagless, booted design provides added strain relief and durability during installation. The cable has a 0.24 in (6 mm) diameter and is rated for operating temperatures from -4°F (-20°C) to 176°F (80°C). For maximum protection against interference in a complete end-to-end system, this cable should be used in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 4.11 lbs (1.9 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287179 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
What is the primary use for the C2G CG28717 patch cable?
This F/UTP shielded cable is designed for making network connections in environments with high levels of EMI/RFI noise and electromagnetic interference.
Will this cable work in a standard non-shielded setup?
While it can be used, for maximum protection against EMI/RFI, it is recommended to use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What type of shielding does this Cat5e cable use?
The CG28717 uses F/UTP shielding, which consists of an overall cable foil shield and a drain wire to protect the signal.
What is the connector type on this 150ft cable?
The cable is equipped with two shielded, 50 micron gold-plated RJ45 male connectors featuring a snagless boot for strain relief.
What is the temperature rating for this ethernet cable?
This cable is rated for an operating temperature range of -4°F (-20°C) to 176°F (80°C).
