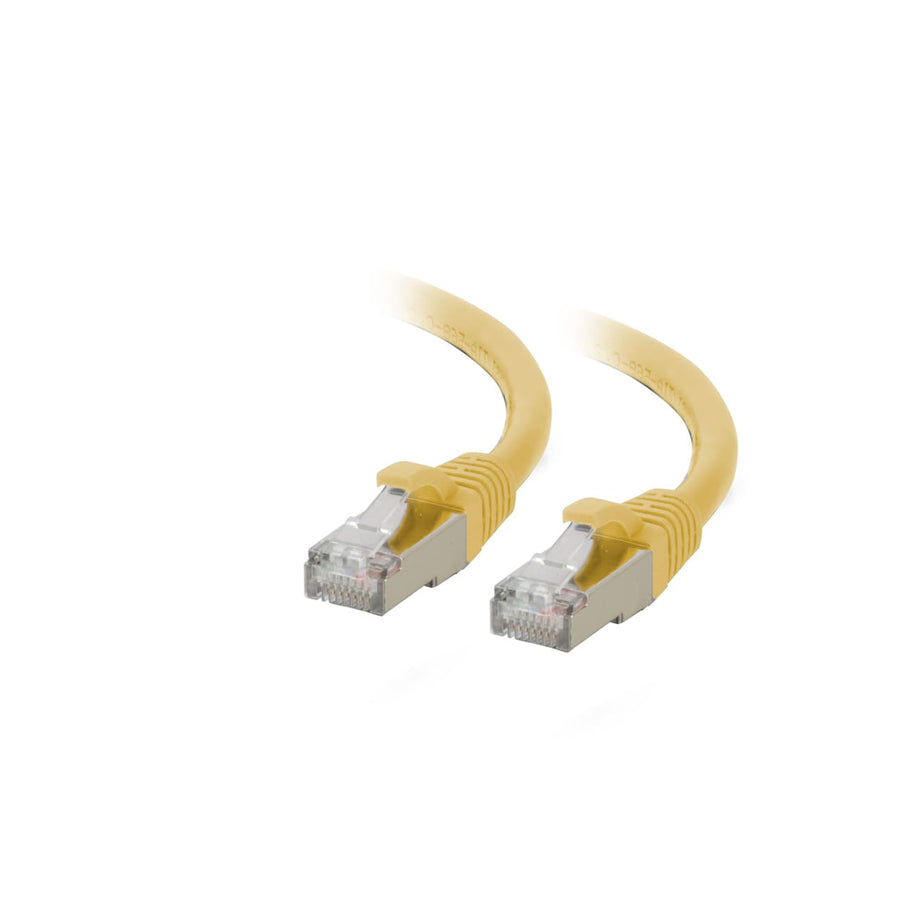

14ft (4.3m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
14 ft (4.3 m) shielded Cat6a patch cable, 10Gbps support, snagless RJ-45 connectors, yellow
The C2G07378 is a 14 ft (4.3 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in yellow, engineered for high-speed 10 Gigabit Ethernet environments. This cable is designed to protect network connections from electromagnetic interference (EMI) and noise, making it an ideal choice for sensitive 10GBase-T applications involving hubs, switches, routers, or network adapters. Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution. The construction features 26 AWG stranded copper conductors with FMPE (Foam Polyethylene) insulation to minimize impedance and structural return loss. To maintain signal integrity, the individual pairs are bonded to preserve twist-spacing up to the termination point, which helps reduce Near-End Crosstalk (NEXT). The snagless RJ-45 male connectors feature a PVC hood to protect the locking tabs in high-density environments, while the yellow jacket allows for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073789 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
