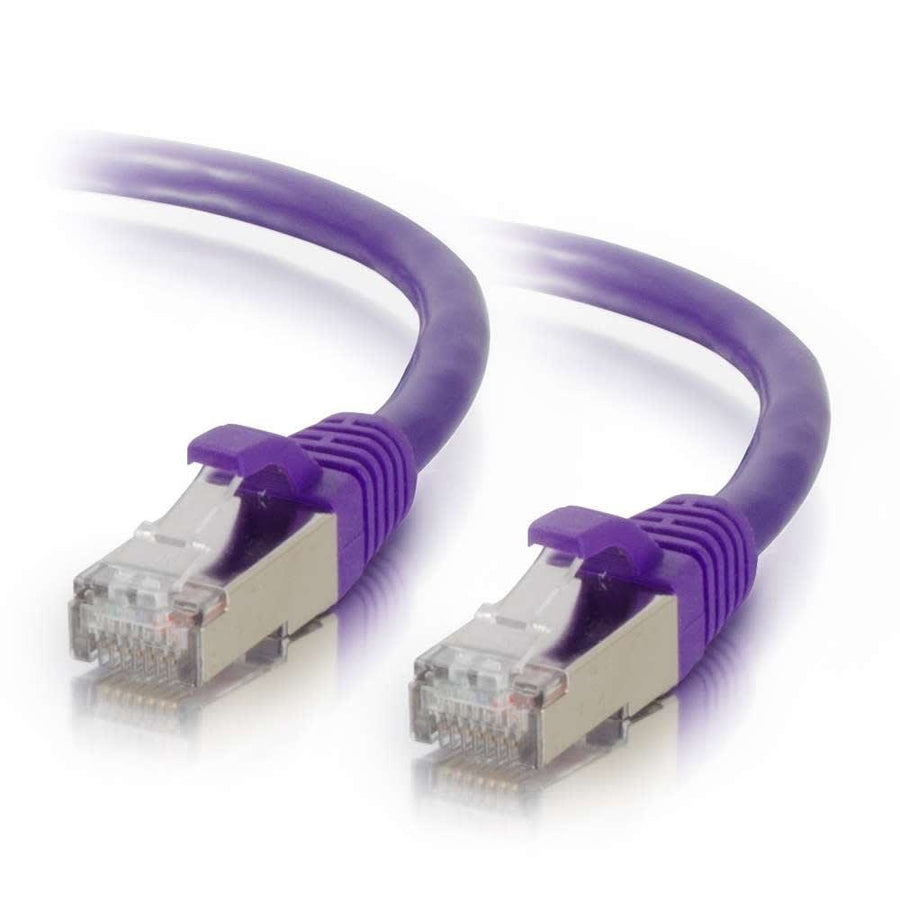

14ft (4.25m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
14ft (4.3 m) shielded Cat6 STP patch cable in purple with snagless boots and stranded copper conductors
The C2G CG00908 is a 14ft (4.3 m) Cat6 Shielded STP Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This purple cable is ideal for voice, data, and video distribution, handling bandwidth-intensive applications while drastically reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction utilizes 26AWG bare copper stranded conductors, with each individual pair bonded together to maintain twist-spacing throughout the line up to the termination point. This design minimizes Near-End Crosstalk (NEXT) levels. Featuring snagless, booted RJ-45 male connectors with PVC hoods, this cable is built for reliability in complex installations. For ease of use in high-density environments, each cable includes an individual length label. This SKU is part of a larger series with 156 variants available in various lengths and colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.45 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009085 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video applications?
Yes, this shielded STP cable is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
What is the wiring standard for the CG00908?
This patch cable follows the T568B wiring scheme and features 4-pair 26AWG stranded copper conductors.
What compatible networking equipment can I use this with?
This cable is compatible with various hardware, including the SOHOTest-E™ Residential Cable Tester and various RJ45 shielded keystone jacks.
Is this cable suitable for environments with high electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) design is specifically intended to protect networks from noise and electromagnetic interference.
Does this cable include a length identification feature?
Yes, each cable features an individual length label to assist with identification during installation and maintenance.
