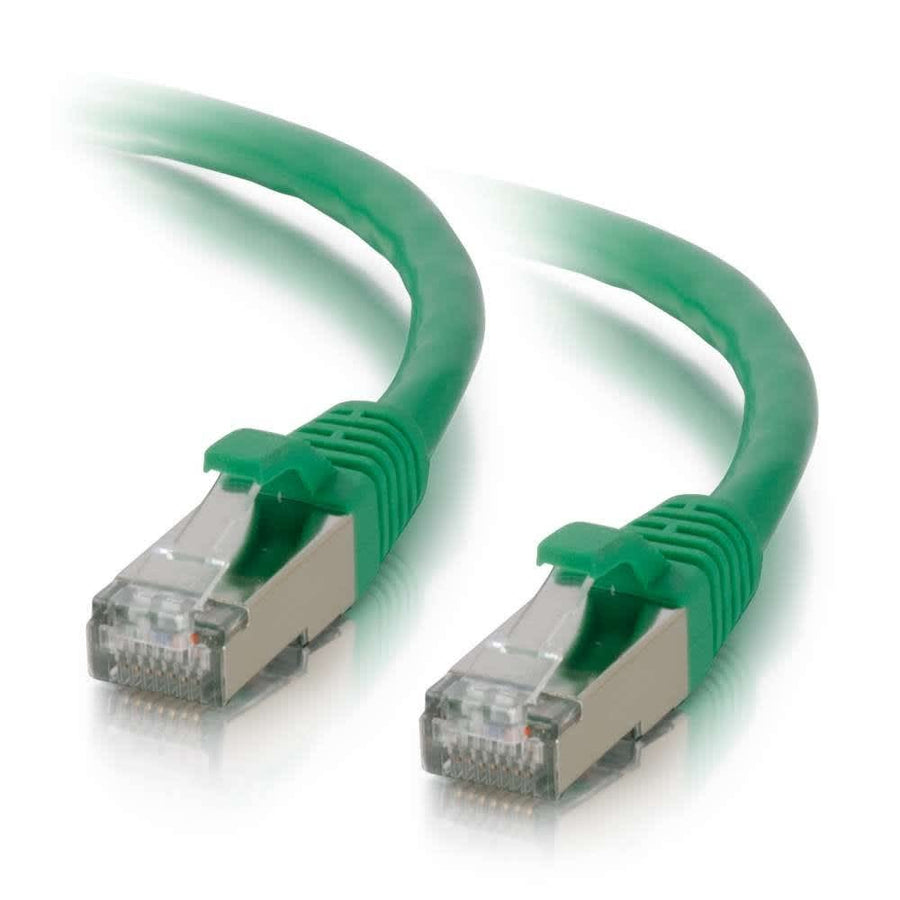

14ft (4.25m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
14ft Cat6 shielded STP patch cable in green with snagless boots and T568B wiring
The C2G CG00836 is a 14 ft (4.3 m) Cat6 shielded STP Ethernet patch cable designed to protect high-speed network environments from electromagnetic interference and noise. This green cable utilizes stranded copper conductors with a 26AWG (7/0.16) gauge and FM-PE insulation to handle bandwidth-intensive voice, data, and video distribution. The shielded (STP) design is engineered to drastically reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each pair is bonded to maintain twist-spacing through the termination point, and the cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The assembly features RJ-45 male connectors with PVC hoods and snagless, booted protection. For easy organization, each cable includes an individual length label. This cable is rated for temperatures up to 75°C and uses a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008361 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
14ft (4.25m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00819$22.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00836 cable work with my Cat6 infrastructure?
Yes, this Cat6 shielded patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements for reliable performance.
What is the difference between this and the black CG00819 cable?
The CG00836 is the green version of the 14ft snagless shielded Cat6 cable, whereas the CG00819 is the identical model in black.
Is this cable suitable for high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction is designed to protect against noise and electromagnetic interference to maintain signal integrity.
Does this cable require specific tools for installation?
As a pre-terminated patch cable with RJ-45 male connectors, no specialized termination tools are required for standard deployment.
What wiring standard does this patch cable use?
This cable follows the T568B wiring scheme and uses 26AWG stranded copper conductors.
