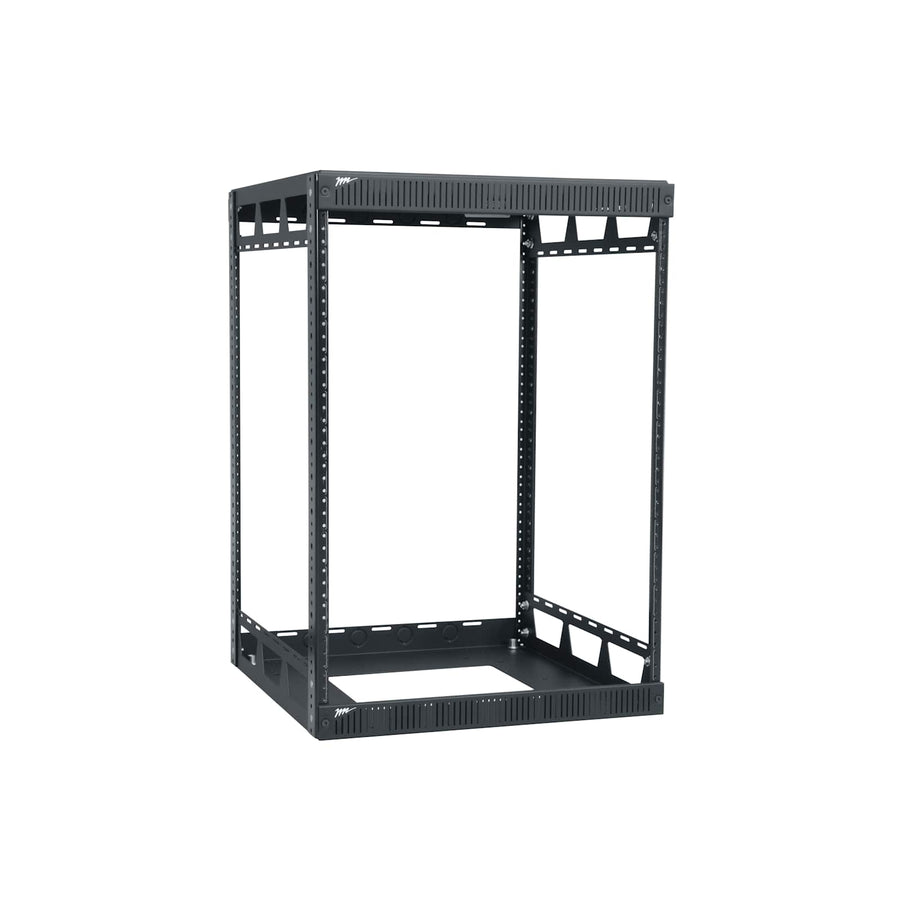

14 RU Slim 5 Series 19-1/8 Inch Wide Rack Frame, 20 Inches Deep
14 RU floor-standing rack frame, 20 inch depth, 400 lbs UL load capacity, TAA compliant and knockdown design
The Middle Atlantic 14-MAY is a 14 RU Slim 5 Series rack frame designed for versatile integration in various professional AV environments. This floor-standing rack frame features a 20 in (50.8 cm) usable depth and a 28.25 in (71.8 cm) height. Built with strong steel construction, the unit utilizes a unique interlocking corner joint to ensure exceptional structural strength. For ease of shipping and onsite assembly, this rack features a knockdown design that ships ready-to-assemble. The frame includes standard front and rear fixed 10-32 threaded rackrails with marked spaces for precise equipment placement. To manage airflow and security, installers can add optional removable steel side panels or mount cooling fans using the two laser knockout locations on the top. This TAA compliant frame is also gangable, allowing for multiple units to be joined together in a single configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 28.25 in (71.8 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 27 lbs (12.3 kg) |
| Rack Units | 14 RU |
| Shipping Weight | 31.91 lbs (14.5 kg) |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 20 in (50.8 cm) |
All other specifications 10
| Usable Height | 24.5 in (62.2 cm) |
| Width | 19.13 in (48.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| TAA Compliant | Yes |
| UPC | 656747000935 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
20 Inch Deep Runner Kit for RS Series Racks
5-RS20$65.70
Leveling Feet
LF$40.50
Caster Kit for Slim 5 Series Locking
5WL$120.60
1 RU Brush Grommet Panel
BR1$86.40
Caster Base for 20 Inch Deep Slim 5 Series
CBS-5$306.90
14 RU Plexi Front Door for Slim 5 Racks
DOP-5-14$828.90
Leveling Feet Isolating
LF-ISO$55.80
Questions about this part
What accessories are required to secure or enclose this rack?
For security and airflow control, you can add optional removable steel side panels or a DOP-5-14 14 RU Plexi front door. Leveling feet (LF) or a CBS-5 caster base can also be utilized for stability or mobility.
How do I manage heat and airflow within the 14-MAY frame?
The top of the frame includes two laser knockout locations specifically for mounting cooling fans, such as the QTFP-2 100 CFM Fan Panel.
What is the load capacity for this 14 RU frame?
This rack frame is UL listed with a load capacity of 400 lbs (181.4 kg).
Is this rack compatible with vertical power strips?
Yes, the frame can accommodate PD Slim High Density Vertical Power Strips, including the PD-815SC or the PD-815SC-NS model.
Which installation tools are needed to assemble the knockdown frame?
Because this is a bolt-together knockdown design, you will need the specific tools required for the hardware assembly, which are not included in the frame package.
