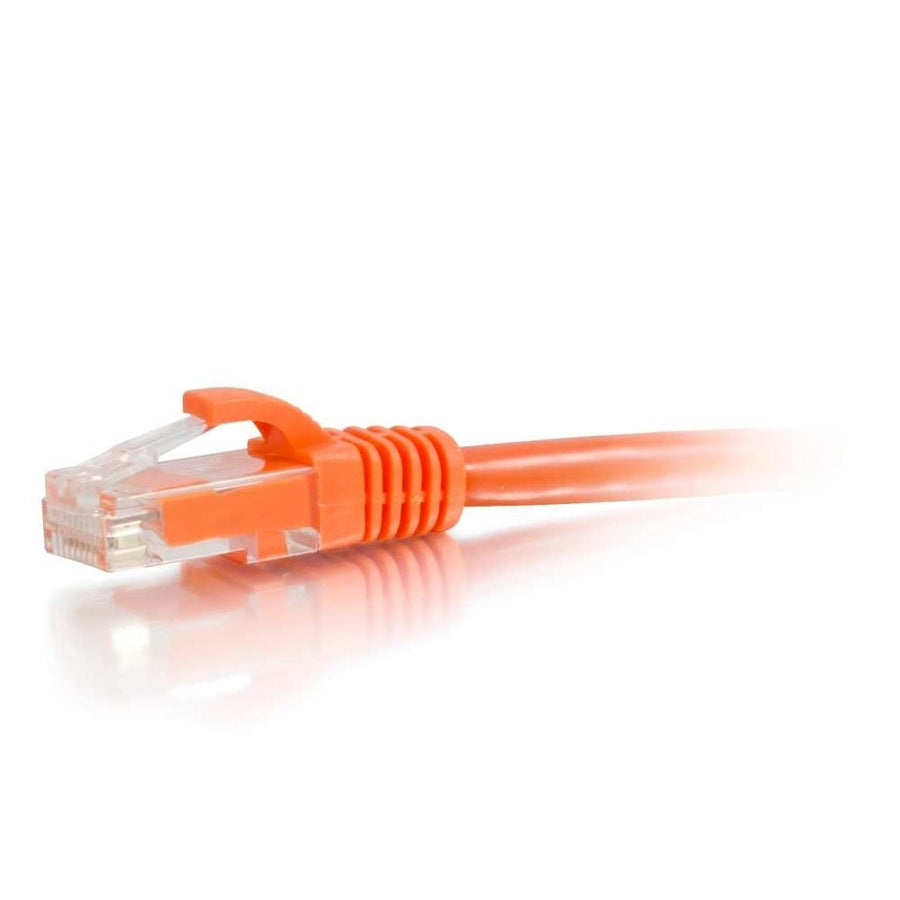

12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
12ft Orange Cat6 Snagless UTP Ethernet patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG04021 is a 12ft (3.7m) Cat6 Snagless UTP Ethernet Network Patch Cable in orange, designed for high-bandwidth voice, data, and video distribution in fast Ethernet and Gigabit computer networks. This unshielded twisted pair (UTP) cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To ensure consistent performance, each individual pair is bonded together to maintain twist-spacing from the cable to the termination point, which helps reduce impedance and structural return loss (SRL). This cable features a snagless, booted design with PVC connector hoods, providing extra strain relief and protecting the RJ-45 clips from damage during installation or frequent plugging and unplugging. The orange jacket is made of PVC and follows standard T568B wiring schemes. This product is compliant with NDAA 889, RoHS, and REACH standards and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.35 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040217 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Will the C2G CG04021 work with my Cat6 network equipment?
Yes, this Cat6 cable is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards for high-bandwidth applications.
What is the wiring scheme for the CG04021 patch cable?
The CG04021 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
How does the snagless design benefit installation?
The snagless, booted design protects the connector clips from being broken or snagged, while providing added strain relief for the cable.
Is this cable suitable for high-performance data distribution?
Yes, the bonded pair construction helps maintain twist-spacing to reduce impedance and structural return loss (SRL) for reliable performance.
Does this cable meet environmental and compliance standards?
The CG04021 is compliant with NDAA 889, RoHS, REACH, and TSCA requirements.
