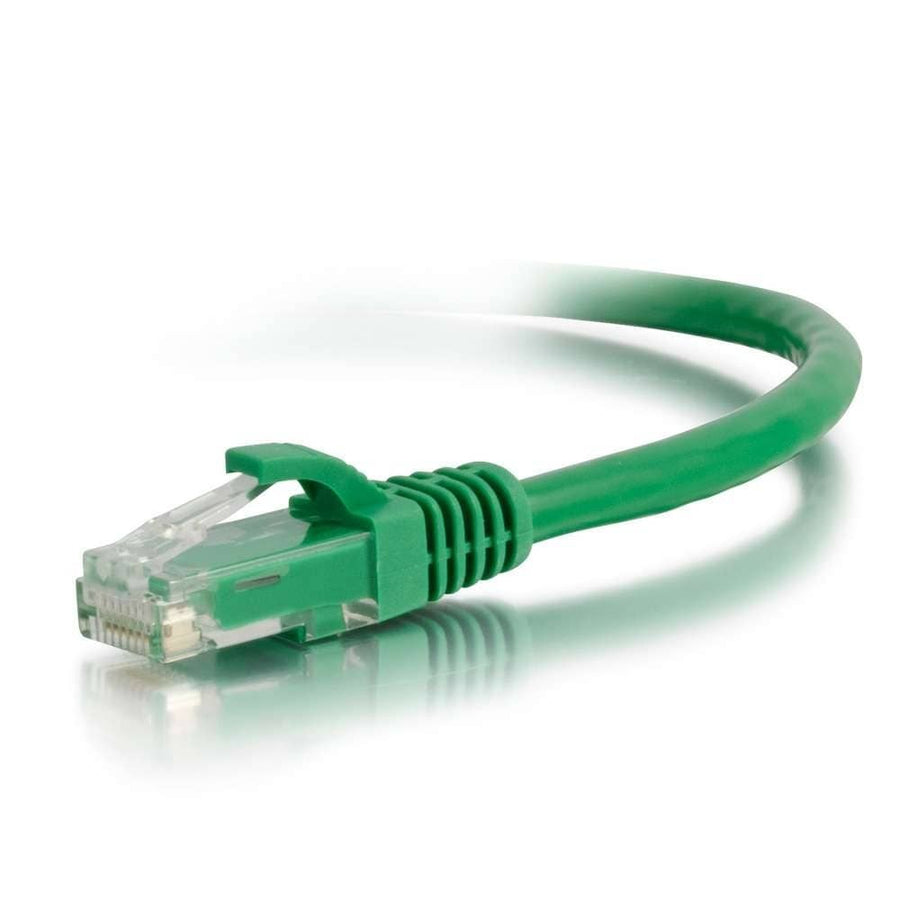

12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Green
Green Cat6 snagless unshielded UTP patch cable, 12 ft (3.7 m) length, with molded strain relief
The C2G CG03994 is a 12 ft (3.7 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is engineered to meet all Cat6 TIA/EIA standards, helping to drastically reduce both impedance and structural return loss (SRL). To ensure signal integrity, each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The construction features high-quality 24 AWG stranded copper conductors and a PVC jacket. For easier installation, the cable includes molded snagless boots that protect the RJ-45 clips from damage during plugging and unplugging while providing essential strain relief. This green cable can be used to color-code network segments in complex installations. This specific SKU is part of a broader series of Cat6 Snagless Patch Cables available in various colors and lengths up to 150 ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039945 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Will this Cat6 cable work with my patch panel?
Yes, it is compatible with various hardware including the C2G Cat6 48-Port Rack Mount Patch Panel (SKU: 48845CC6) and the 24-Port Rack Mount Patch Panel (SKU: 24845CC6).
What is the wiring standard for this patch cable?
This 12 ft (3.7 m) cable follows the T568B wiring scheme.
What is the difference between this and a standard Cat6 cable?
This is a snagless version, meaning the molded boot protects the connector clips from snapping during installation or removal.
What certifications does this cable carry?
This cable is rated for CE, RoHS, and REACH compliance.
Does this cable support high-speed data applications?
Yes, it is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards for high-bandwidth distribution.
