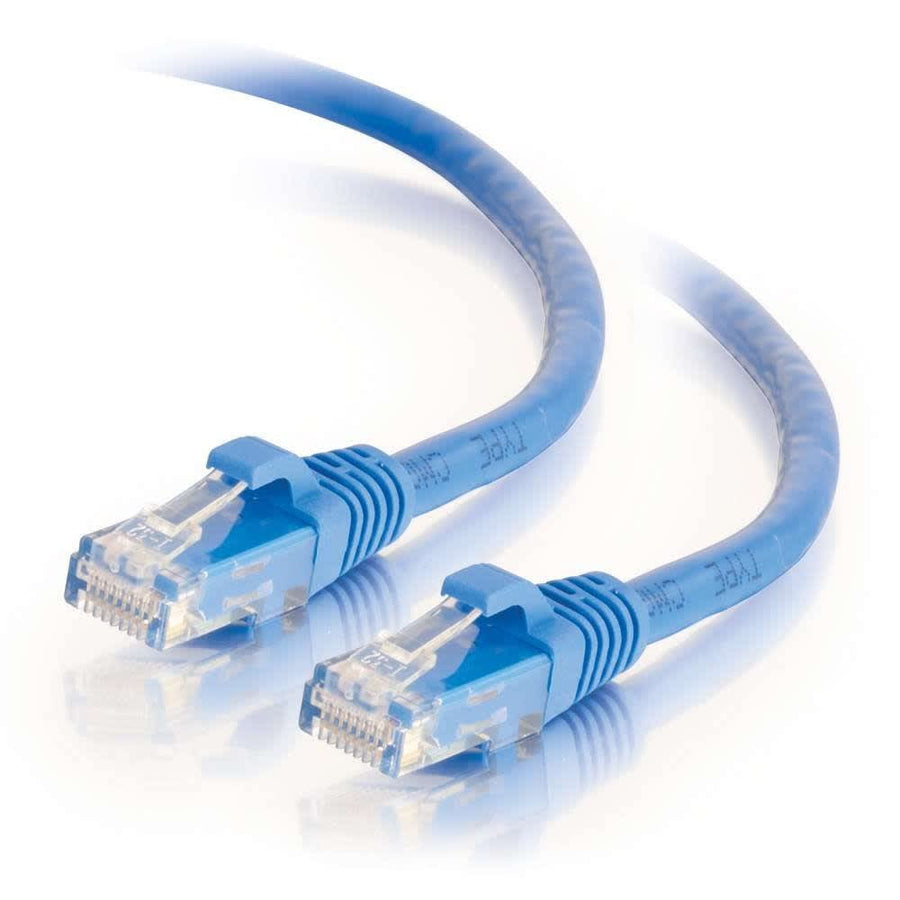

12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
12ft Blue Cat6 snagless unshielded UTP Ethernet patch cable with stranded copper conductors
The C2G CG03978 is a 12ft (3.7m) Blue Cat6 snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth applications. This cable is suitable for fast Ethernet and Gigabit computer networks requiring reliable voice, data, or video distribution. It meets all Cat6 TIA/EIA standards, helping to reduce both impedance and structural return loss (SRL). Each pair is bonded together to maintain twist-spacing through to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The cable features 24 AWG stranded copper conductors and is housed in a PVC jacket. For installation ease, the molded snagless boots protect the RJ-45 clips from damage during plugging and unplugging while providing additional strain relief. This Blue SKU is part of a series available in 10 colors and lengths up to 150ft to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039785 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What is the maximum length available for the Cat6 Snagless Patch Cable series?
While this SKU is 12 ft (3.7 m), the series is available in lengths up to 150 ft.
What connectivity type does the CG03978 use?
This cable uses standard RJ-45 Male to RJ-45 Male unshielded twisted pair (UTP) connectors.
Is the CG03978 compatible with network patch panels?
Yes, it can be used with compatible items like the 48-Port Rack Mount Patch Panel (SKU: 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU: 24845CC6).
What certifications does this cable carry?
This product is compliant with NDAA 889, REACH, RoHS, TSCA, CE, and Prop 65.
Does this cable feature stranded or solid conductors?
The CG03978 features 24 AWG stranded copper conductors for patch applications.
