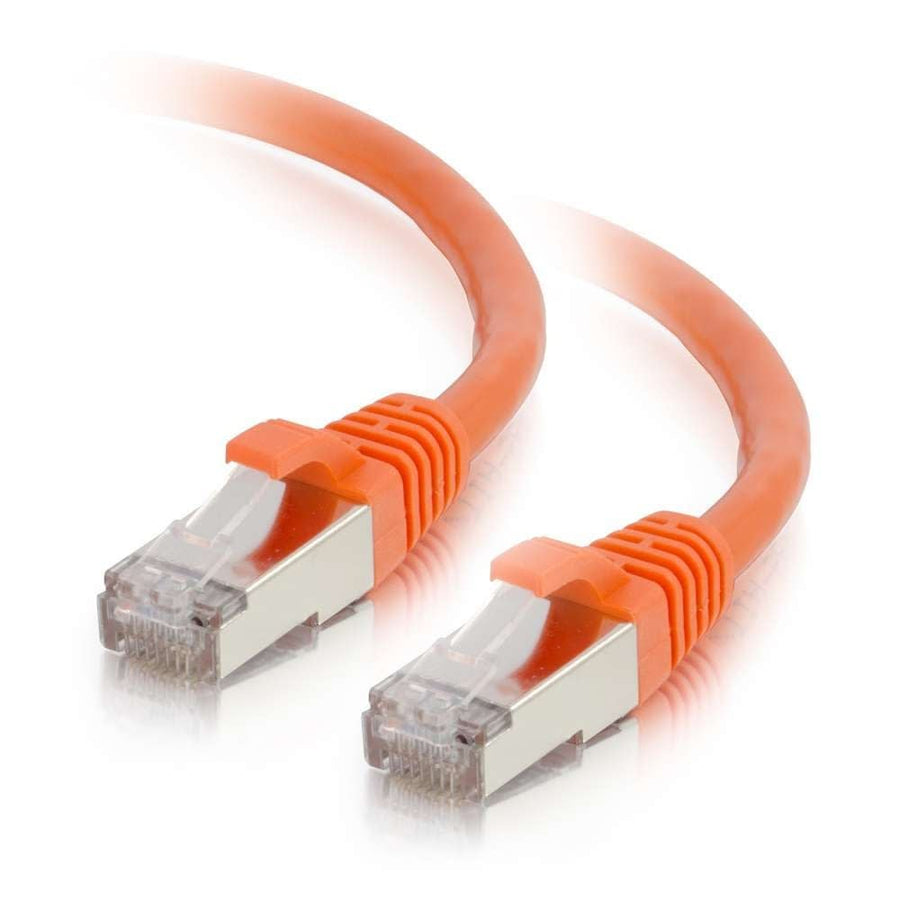

12ft (3.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
12ft (3.7m) orange Cat6 shielded STP Ethernet patch cable with 26AWG stranded copper and snagless boots
The C2G CG00886 is a 12ft (3.7m) Cat6 shielded STP Ethernet patch cable designed to protect high-speed networks from noise and electromagnetic interference. This orange cable utilizes stranded SSTP construction and 26AWG (7/0.16) bare copper conductors to handle bandwidth-intensive voice, data, and video distribution. By bonding individual pairs together, the cable maintains consistent twist-spacing through the termination point, which drastically reduces impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT) levels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements and features a T568B wiring scheme. For ease of identification in complex installations, each cable includes an individual length label. The jacket is made of PVC and is rated for temperatures up to 75°C. This snagless design includes PVC connector hoods to protect the RJ-45 male terminations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.37 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008866 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
12ft (3.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00818$20.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00886 cable work for high-bandwidth video distribution?
Yes, this Cat6 STP cable is designed for bandwidth-intensive applications and reduces structural return loss (SRL) and impedance.
What is the wiring scheme for the CG00886 patch cable?
The CG00886 utilizes a T568B wiring scheme with 26AWG stranded copper conductors.
Is this Cat6 cable suitable for environments with high electromagnetic interference?
Yes, the shielded STP (SSTP) design is specifically engineered to protect high-speed networks from noise and EMI.
Does this cable come with snagless boots for protection?
Yes, it features snagless RJ-45 male connectors with PVC connector hoods to prevent accidental damage to the plug.
How do I differentiate this orange cable from other C2G Cat6 cables?
This SKU is the orange version; the CG00818 is the black version of the same 12ft Cat6 shielded STP cable.
