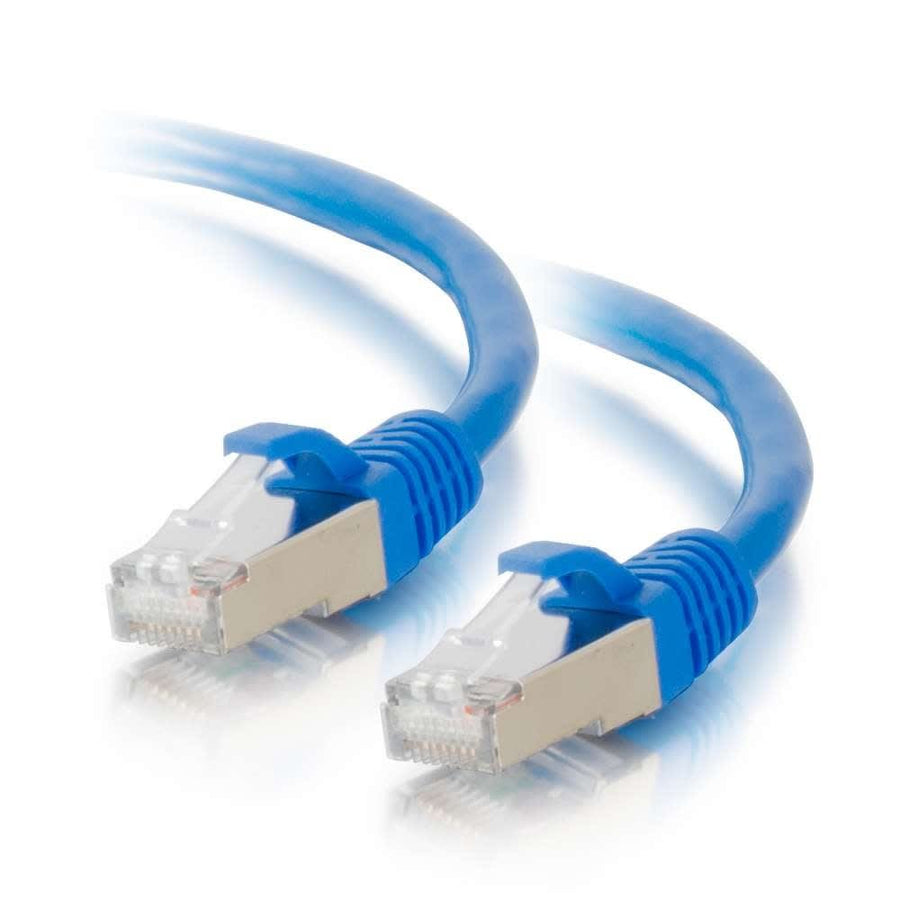

12ft (3.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
12ft (3.7m) Blue Cat6 Shielded STP Ethernet Network Patch Cable with snagless boots
The C2G CG00801 is a 12 ft (3.7 m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This blue patch cable utilizes 26AWG bare copper stranded conductors and an FM-PE insulation to ensure reliable performance for bandwidth-intensive voice, data, and video distribution. By bonding individual pairs together, the cable maintains twist-spacing through the termination point to minimize Near-End Crosstalk (NEXT) and reduce structural return loss (SRL) and impedance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features PVC jacket and hood materials, with snagless, booted RJ-45 male connectors on both ends. This cable is rated for temperatures up to 75°C and is organized for easy identification via individual length labels on each cable.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008019 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
12ft (3.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00818$20.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00801?
This Cat6 patch cable uses the T568B wiring scheme for all connections.
Will this Cat6 cable work in high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction and bonded individual pairs help minimize impedance and structural return loss.
What is the maximum temperature rating for this cable?
This C2G patch cable is rated for temperatures up to 75°C.
What is the diameter of the CG00801 cable?
The cable has a diameter of 0.24 in (6.2 mm).
Are there other color options available for this Cat6 series?
Yes, this series is available in various colors including Black (CG00818), Gray, Green, Orange, Purple, Red, and White.
