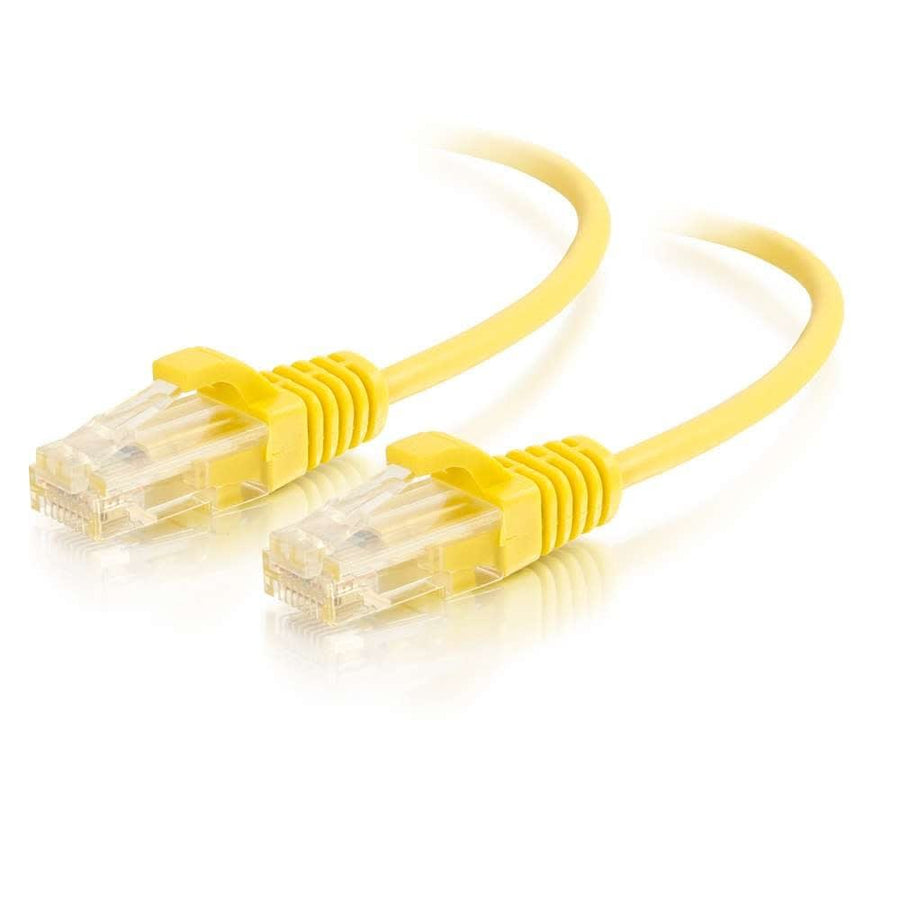

10ft (3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Yellow
Yellow 10ft Cat6 slim unshielded UTP patch cable with 28 AWG stranded copper conductors for high-density environments
The CG01174 is a 10ft (3.1 m) Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable in yellow, specifically engineered for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This reduced 0.15 in (3.8 mm) diameter provides a smaller surface area, which facilitates increased airflow within crowded network enclosures. The slim profile also allows for a smaller bend radius, making it easier to route through cable management panels. This cable is built for fast Ethernet networks requiring bandwidth-intensive video, data, or voice distribution. It is designed to minimize Near-End Crosstalk (NEXT) levels and features a molded, snagless PVC boot to provide extra strain relief and prevent accidental snags during installation. For POE/POE+ applications, installers should limit cable bundles to 40 units to ensure proper heat dissipation due to the reduced conductor diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011743 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What are the channel length limitations for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim patch cables with 90 meters of horizontal cable. For a 93 Meter Channel, use up to 10 meters of these cables with 83 meters of horizontal cable.
Is the CG01174 suitable for PoE or PoE+ applications?
Yes, but because of the heat dissipation characteristics of the 28 AWG reduced diameter conductors, it is recommended to limit bundles to 40 cables.
Can I use this cable in high-density patch panels?
Yes, the 0.15 in (3.8 mm) diameter and smaller bend radius are designed specifically for easier routing through cable management panels in high-density environments.
What is the termination standard for this patch cable?
This cable uses the T568B wiring scheme and is constructed with high-quality copper stranded conductors to minimize Near-End Crosstalk (NEXT).
What documentation is available for submittals?
You can refer to the C2G Ethernet Patch Cable Matrix or the Cat6 Slim Data Sheet for detailed technical performance specifications.
