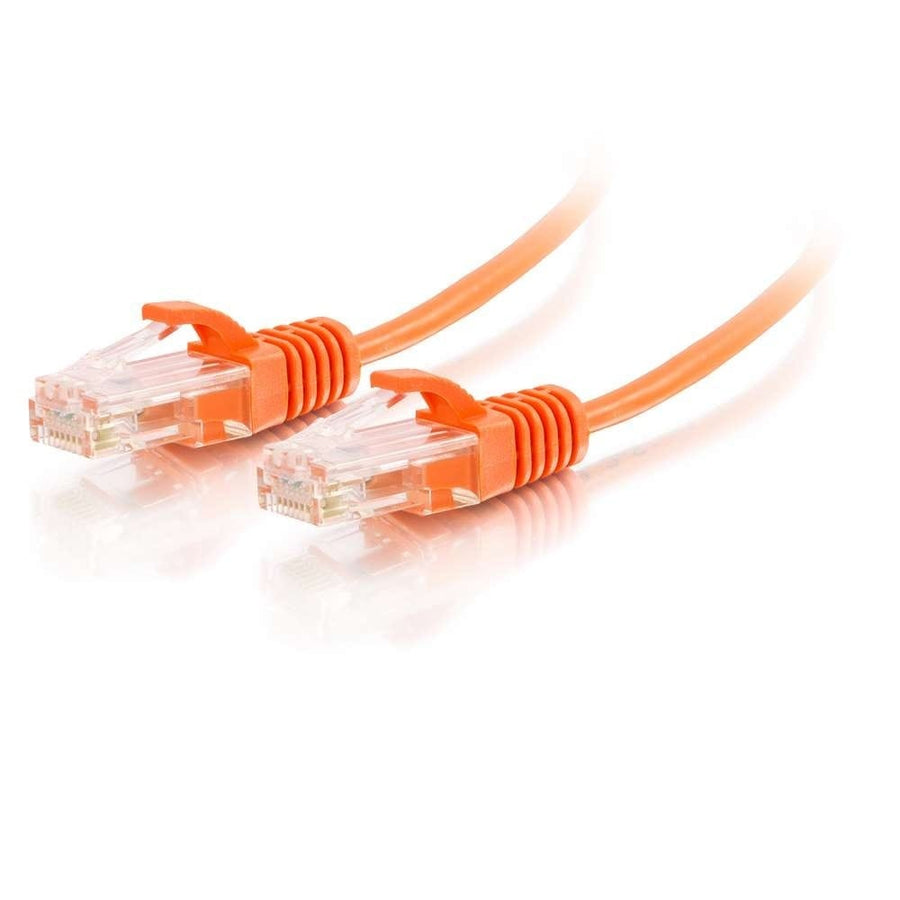

10ft (3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Orange
10ft Cat6 Slim UTP patch cable in orange, featuring 28 AWG stranded copper conductors for high-density environments
The C2G CG01179 is a 10ft (3.1 m) Cat6 Slim Snagless Unshielded UTP Network Patch Cable designed for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This significantly smaller 0.15 in (3.8 mm) cable diameter increases airflow within crowded enclosures by reducing the total cable surface area. The slim profile and reduced bend radius allow for much easier routing through high-density cable management panels. This cable is engineered for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, maintaining a 500 mHz bandwidth. Each cable features a molded, snagless PVC boot to provide strain relief and prevent snags during installation. For deployments utilizing POE or POE+ applications, it is recommended to limit cable bundles to 40 units to manage heat dissipation caused by the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011798 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum channel length for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of this slim network patch cable with 90 meters of horizontal cable.
Can I use this cable for POE or POE+ applications?
Yes, but it is recommended to limit cable bundles to 40 cables to properly manage heat dissipation in the 28 AWG conductors.
What is the color coding for the CG01179?
This specific SKU is orange, which can be used to help color-code your network installation.
What is the maximum bandwidth supported by this cable?
The CG01179 supports a bandwidth of 500 mHz for fast Ethernet, voice, and video distribution applications.
Does this cable come with a warranty?
This C2G Cat6 Slim Patch Cable is covered by a lifetime warranty.
