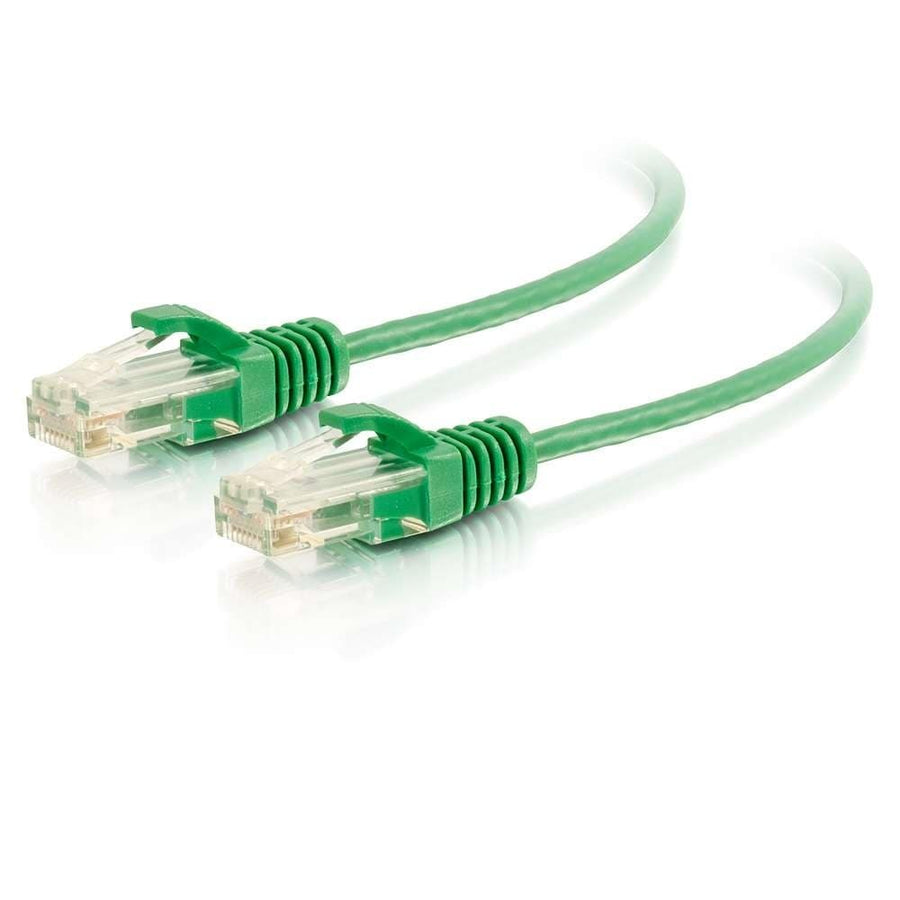

10ft (3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Green
10ft Cat6 slim patch cable, 28 AWG unshielded UTP, green finish, ideal for high-density datacenter airflow
The C2G CG01164 is a 10ft (3.1 m) Cat6 Slim Snagless Unshielded UTP Ethernet Network Patch Cable in Green. Engineered specifically for high-density datacenter applications, this cable utilizes 28 AWG stranded copper conductors. This construction allows for a 36% reduction in cable diameter compared to standard Cat6 cables, resulting in a slim 0.15 in (3.8 mm) profile. This reduced diameter increases airflow within crowded racks and enables a smaller bend radius, making the cable easier to route through cable management panels. The snagless molded PVC boot provides extra strain relief and prevents snags during installation. This cable is designed for high-bandwidth Ethernet networks used in voice, data, or video distribution. While suitable for various networking tasks, it is important to note that for POE/POE+ applications, bundles should be limited to 40 cables to manage heat dissipation caused by the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011644 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum channel length when using CG01164 in a setup?
For a 96 meter channel, you can use up to 6 meters of these slim patch cables combined with 90 meters of horizontal cable. If using a 93 meter channel, you can use up to 10 meters of this cable with 83 meters of horizontal cable.
Can this cable be used for PoE or PoE+ applications?
Yes, but it is recommended to limit cable bundles to 40 units to account for heat dissipation caused by the 28 AWG reduced diameter.
What kind of shielding does this patch cable have?
The CG01164 is an unshielded (UTP) cable that uses stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels.
Which documents are available for technical submittals?
You can refer to the C2G Ethernet Patch Cable Matrix or the Cat6 Slim Data Sheet for detailed performance and category information.
Is this cable compatible with rack mount patch panels?
Yes, this cable can be used with various hardware including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
