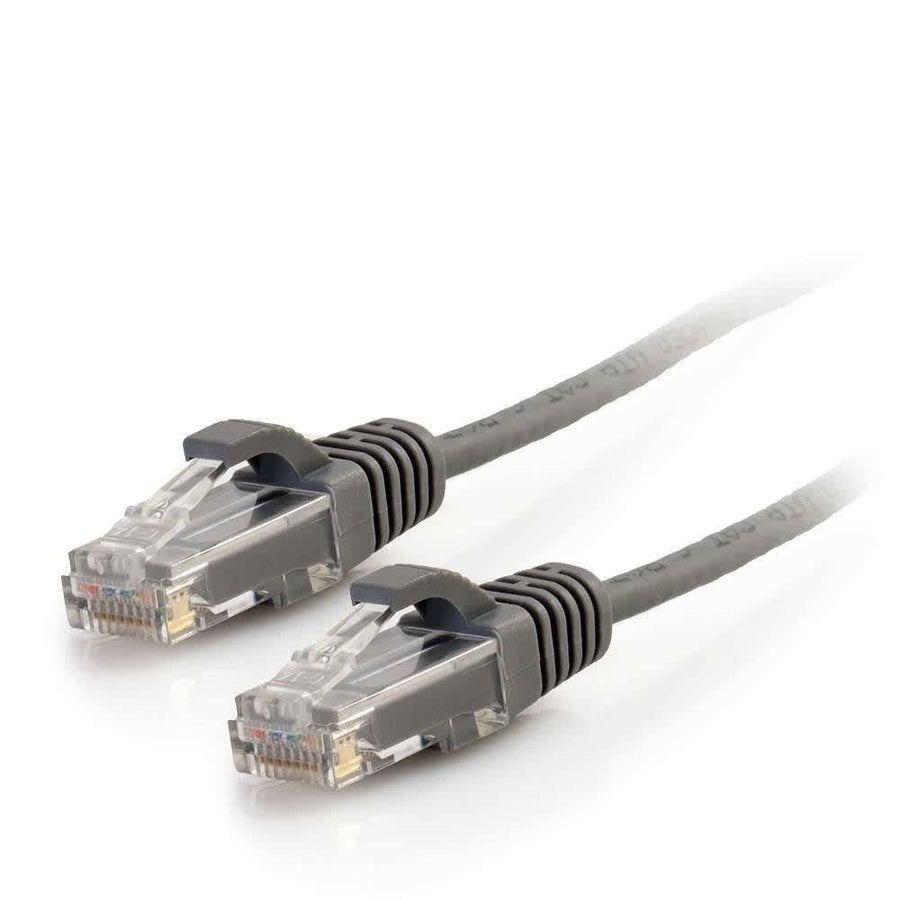

10ft (3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Gray
10ft Cat6 slim unshielded UTP patch cable, 28 AWG, 0.15 in diameter, gray finish
The C2G CG01096 is a 10ft (3.1 m) Cat6 Slim Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables, measuring just 0.15 in (3.8 mm). This slim profile allows for a smaller bend radius, making it easier to route through crowded cable management panels and increasing airflow within server racks. The snagless, molded PVC boots provide extra strain relief and protect against accidental snags during installation. This cable is built for bandwidth-intensive voice, data, or video distribution in fast Ethernet networks and complies with the ANSI/TIA-568 standard. For POE/POE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation caused by the reduced diameter. This gray cable uses a T568B wiring scheme and is rated for a 500 mHz bandwidth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010968 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
CG01083$14.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Is the C2G CG01096 suitable for high-density server racks?
Yes, the 0.15 in (3.8 mm) slim diameter and small bend radius are designed specifically to improve airflow and routing in high-density datacenter environments.
What is the maximum channel length when using this slim patch cable?
For a 96-meter channel, you can use up to 6 meters of slim network patch cables alongside 90 meters of horizontal cable.
Can this cable be used for POE or POE+ applications?
This cable can be used for POE/POE+ applications, but it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation.
What is the wiring scheme for the CG01096?
This patch cable uses the T568B wiring scheme with RJ-45 male connectors on both ends.
What documentation is available for technical submittals?
You can reference the C2G Ethernet Patch Cable Matrix or the Cat6 Slim Data Sheet for detailed technical specifications.
