10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
10ft Cat5e snagless patch cable, unshielded UTP, yellow color for easy network color-coding

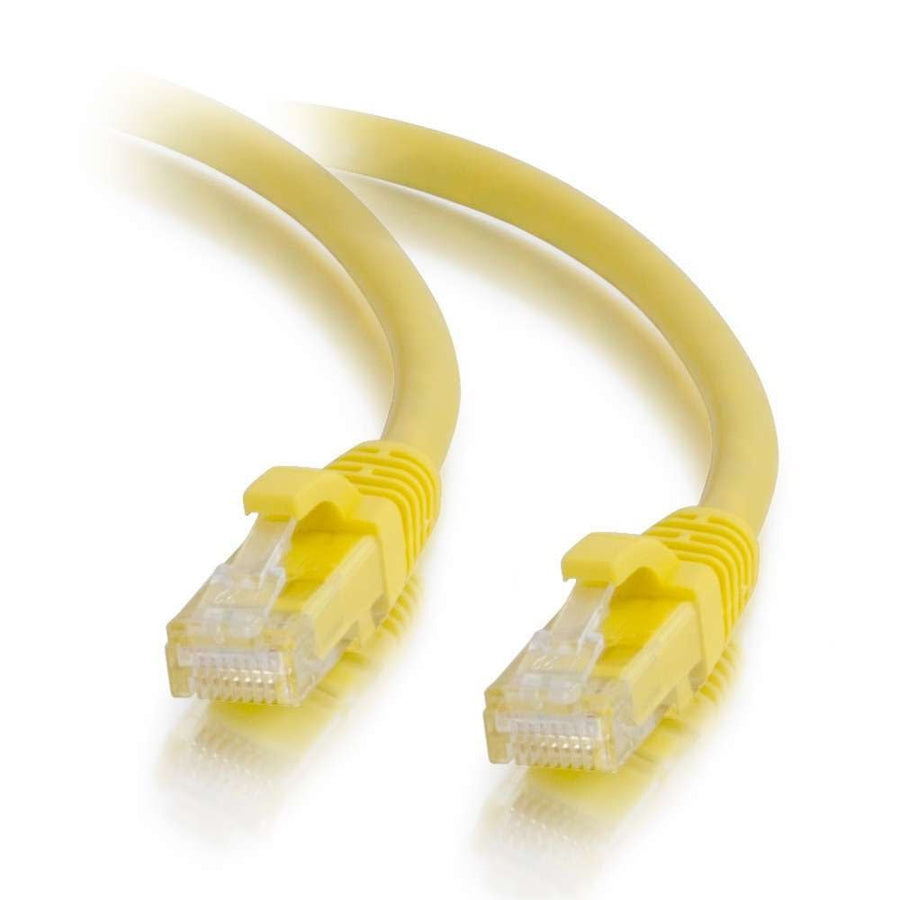

The C2G CG15204 is a 10ft (3.1 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point. The cable features a 0.21 in (5.3 mm) diameter and is built with a PVC jacket and hood material. For ease of installation and maintenance, the molded snagless boot protects the RJ-45 Male clips from damage during plugging and unplugging while providing additional strain relief. This yellow cable is ideal for color-coding specific network segments within a larger installation. The cable supports a bandwidth of 350 mHz and utilizes a T568B wiring scheme. It is NDAA 889, RoHS, and REACH compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152040 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
