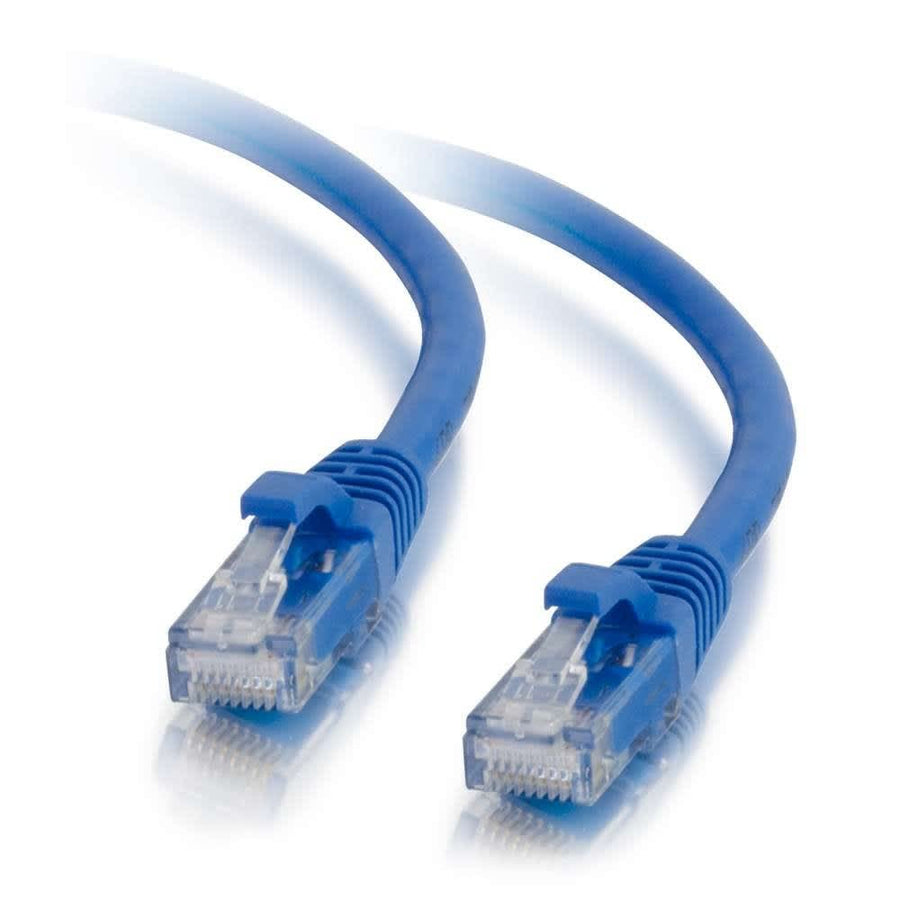

10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
10ft (3.1 m) Blue Cat5e Unshielded UTP Patch Cable with snagless boots for strain relief
The C2G CG15200 is a 10ft (3.1 m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in Blue. Designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, this cable meets all Cat5e TIA/EIA standards. It features a 350 mHz bandwidth and uses stranded copper conductors with a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to help maintain twist-spacing throughout the line right up to the termination point, which reduces impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and is constructed with a PVC jacket and PVC connector hoods. The molded, snagless boots protect the RJ-45 Male clips from damage during installation and provide additional strain relief. This unshielded twisted pair (UTP) cable utilizes a T568B wiring scheme for standard network connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152002 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG15202$8.99
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
Questions about this part
Will the CG15200 fit my network equipment?
The CG15200 features standard RJ-45 Male connectors, making it compatible with most networking hardware requiring Cat5e connectivity, including switches and routers.
What is the maximum bandwidth for this Cat5e cable?
This patch cable supports a bandwidth of 350 mHz, making it suitable for high-speed data and video distribution applications.
Does this cable include strain relief for the connectors?
Yes, the CG15200 is built with a molded, snagless boot that protects the connector clips and provides extra strain relief during handling.
Is this cable shielded or unshielded?
The CG15200 is an Unshielded Twisted Pair (UTP) cable, designed to reduce impedance and structural return loss without the bulk of shielding.
What other C2G cables are available in different colors?
The series includes the CG15202 in Black, and other colors are available to assist with network color-coding.
