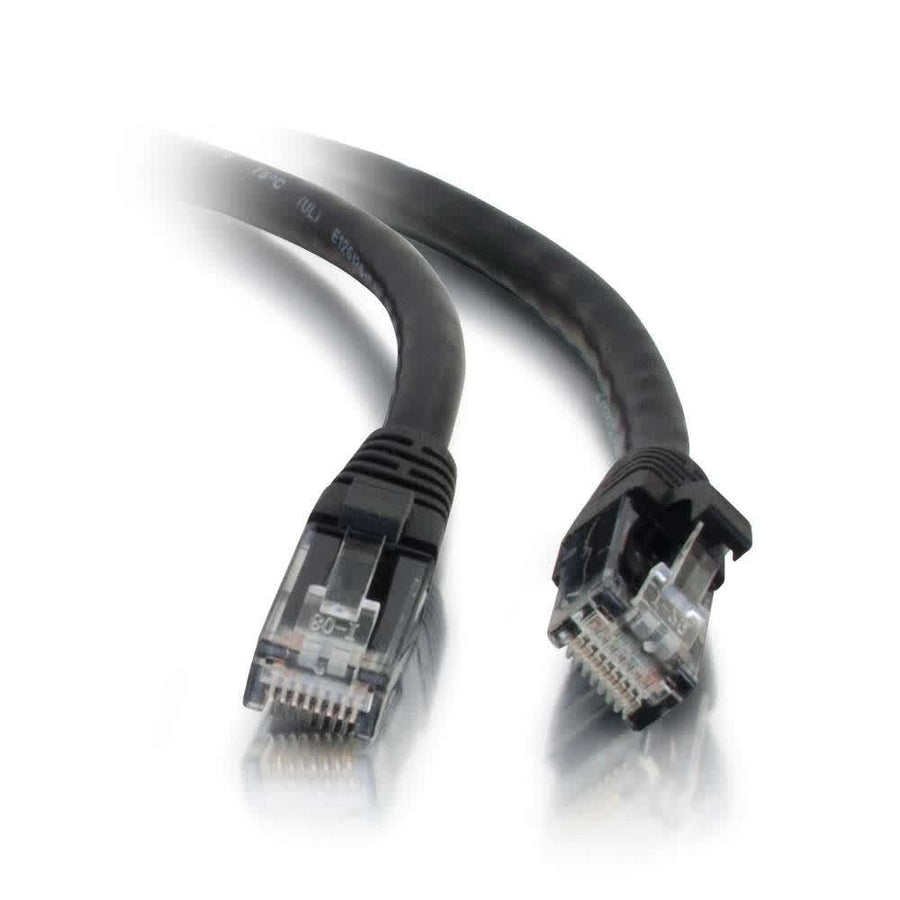

10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
10ft (3.1 m) Cat5e Snagless UTP Ethernet Patch Cable in Black, featuring a snagless boot and T568B wiring scheme
The C2G CG15202 is a 10ft (3.1 m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications in fast Ethernet networks. This cable meets all Cat5e TIA/EIA standards, specifically engineered to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing from the termination point to the end of the line, which helps minimize Near-End Crosstalk (NEXT) levels. Constructed with stranded copper conductors, this cable features a 24 AWG wire gauge and a 0.21 in (5.3 mm) cable diameter. The snagless PVC connector boot protects the RJ-45 clips from damage during installation and provides added strain relief. This UTP cable utilizes a T568B wiring scheme and is rated for standard non-rated environments. For large-scale deployments, this black patch cable is part of a series available in 10 colors to facilitate network color-coding and can be ordered in various lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152026 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG15200$7.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
Questions about this part
Will this Cat5e cable work with my existing T568B wiring?
Yes, the CG15202 is wired using the T568B scheme, making it compatible with standard T568B network installations.
What is the maximum bandwidth for this patch cable?
This Cat5e patch cable supports a bandwidth of 350 mHz for data, voice, or video distribution.
How does the snagless design benefit the installation?
The snagless boot protects the RJ-45 clips from snapping during plugging and unplugging, while also providing extra strain relief to the cable.
Is this cable suitable for high-density networking environments?
The stranded copper design and bonded pairs are engineered to minimize Near-End Crosstalk (NEXT) and reduce structural return loss.
Are there other color or length options available for this series?
Yes, this series is available in 10 different colors for color-coding and in various lengths up to 150ft.
