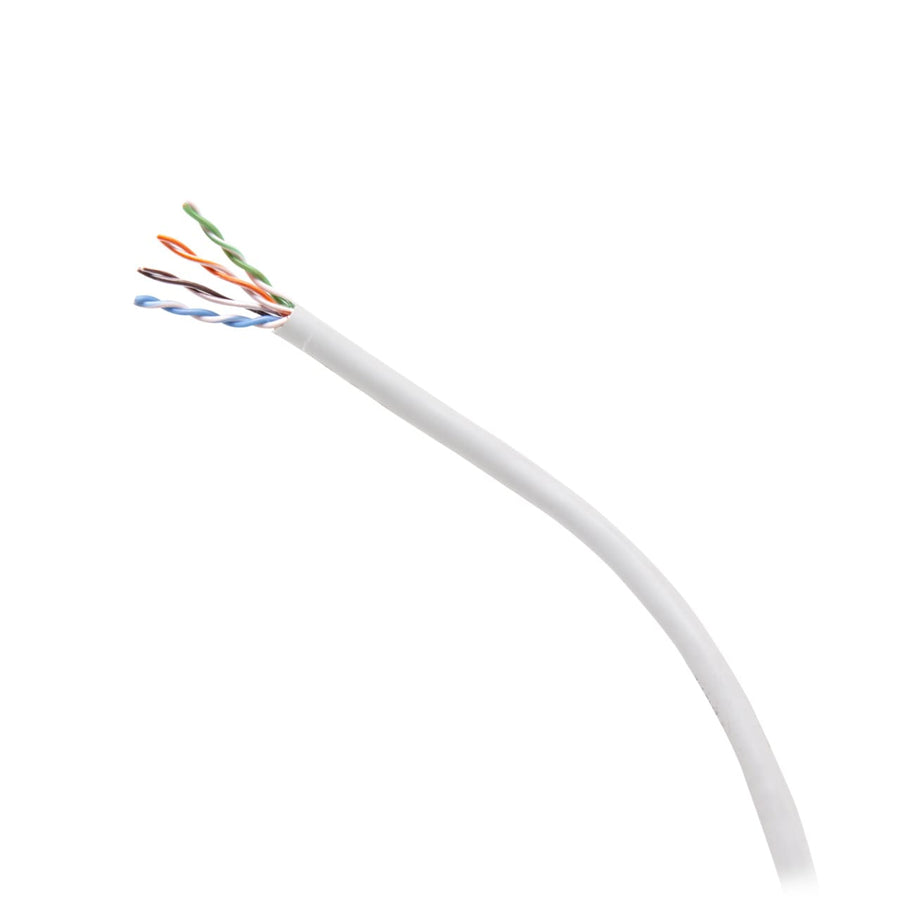

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - White
Plenum-rated Cat6 UTP bulk Ethernet cable, 1000 ft (304.8 m) spool, solid copper conductors, TAA-compliant, white jacket
C2G56044 is a 1000 ft (304.8 m) spool of Cat6 unshielded twisted pair (UTP) bulk Ethernet network cable designed for high-performance data transmission. This cable features solid copper conductors with a 23 AWG wire gauge to ensure reliable signal integrity. It is specifically engineered for use in plenum spaces, featuring a CMP-rated jacket made of Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) and FEP (Fluorinated Ethylene Propylene) insulation. This TAA-compliant cable is suitable for various professional network installations requiring high-speed data transfer. The cable's construction supports an operating temperature range of -4°F to 140°F (-20°C to 60°C) and maintains a minimum bend radius of 0.79 in (20 mm). This specific white SKU is part of the C2G Bulk Category Cable series, offering a reliable solution for large-scale LAN deployments where plenum-rated compliance is mandatory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.79 in (20 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26 lbs (11.8 kg) |
| Shipping Weight | 25.79 lbs (11.7 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560449 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it

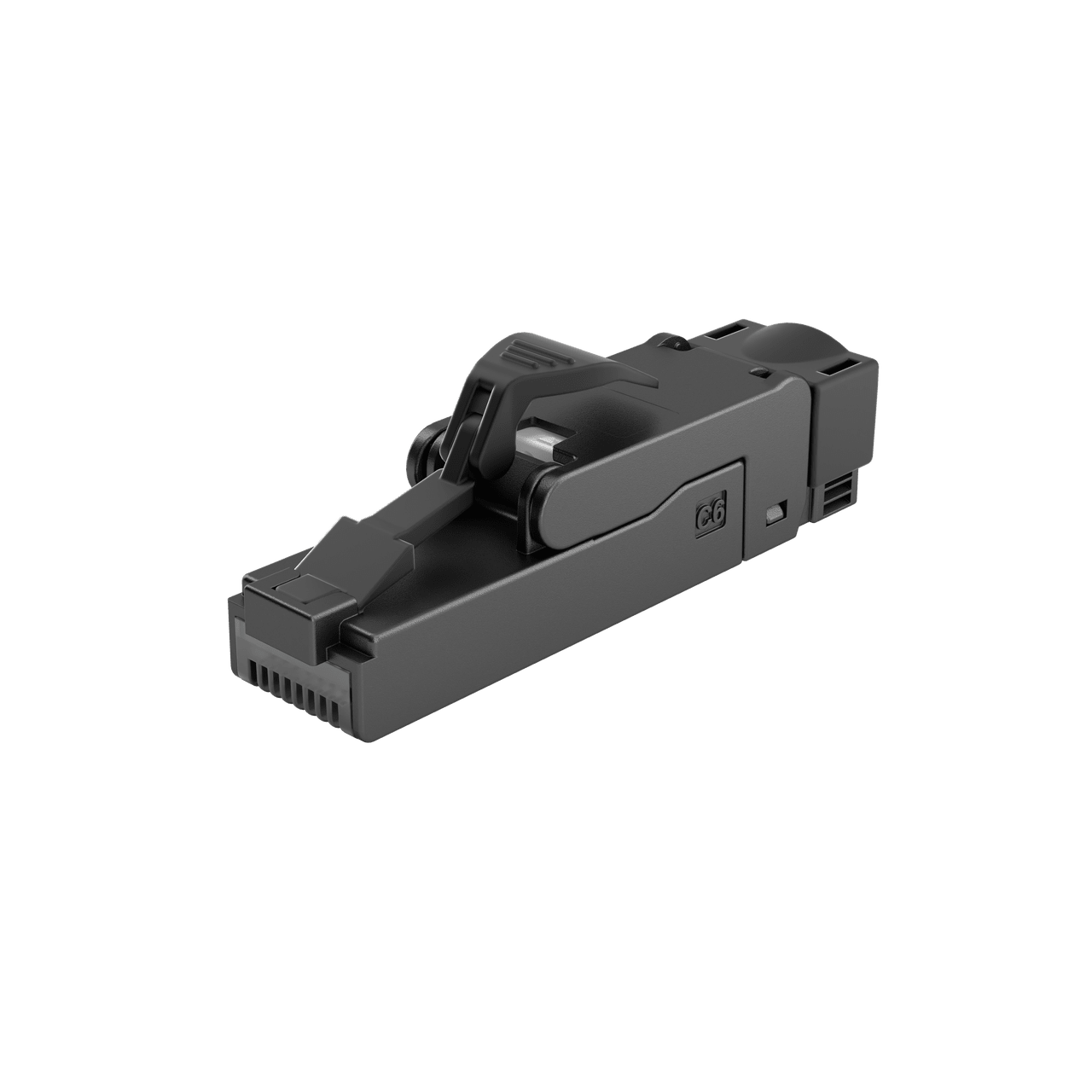

Cat6/5e Unshielded High-Density Field Terminated Modular Plug-5 Pack
C2G01157$67.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
6-Port Cat5e Network Interface Module
AC1012$59.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
Questions about this part
Is the C2G56044 suitable for plenum air spaces?
Yes, this is a plenum-rated cable with a CMP jacket and FEP insulation, making it appropriate for installation in plenum spaces.
What is the conductor material and gauge for this Cat6 cable?
The C2G56044 features 23 AWG solid copper conductors designed for standard Category 6 performance applications.
What accessories are compatible with this bulk cable?
This cable can be terminated with accessories like the CG29746 USB-C to Ethernet Adapter or the CG29747 USB-C to Ethernet Adapter with 3-Port USB Hub.
What is the minimum bend radius for the C2G56044?
This cable has a minimum bend radius of 0.79 in (20 mm) to ensure proper signal performance and cable integrity.
Is this cable TAA compliant for government contracts?
Yes, the C2G56044 is TAA compliant, making it suitable for projects with specific procurement requirements.
