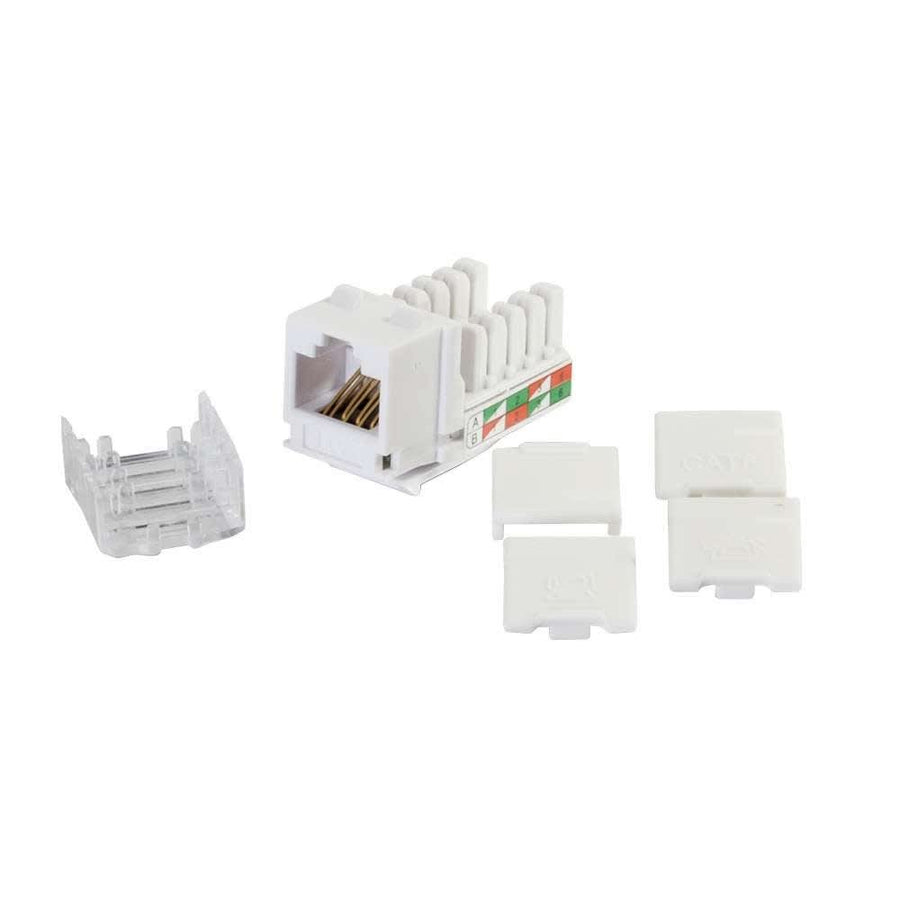

Cat6 RJ45 UTP Keystone Jack - White
White Cat6 RJ45 UTP keystone jack featuring 110-type IDC termination and 50-micron gold plating
The C2G CG29311 is a Cat6 RJ45 UTP keystone jack designed for high-performance network terminations. This unshielded (UTP) jack utilizes 110-type IDC horizontal punchdown termination, specifically engineered for 22-26 AWG solid UTP wire. It features strain relief caps and 50-micron gold plating on the jack contacts to ensure a secure, reliable connection. This jack meets or exceeds industry standards for Category 6/Class E per TIA/EIA 568B 2.1 and ISO 11801 2nd edition, managing signal transmission for insertion loss and crosstalk from 1 to 250 MHz. Designed for easy integration, it is compatible with C2G wall plates, surface boxes, and any standard keystone or angled multimedia wall plates or patch panels.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.03 lbs (0 kg) |
| Cable Type | Cat6 |
| Color | White |
| Connector 1 | (1) RJ-45 Female(1) RJ-45 Female |
| Product Type | JackKeystone |
| Special Features | TIA-606 |
| UPC | 757120293118 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
Will this jack fit in my existing wall plate?
Yes, the CG29311 is designed to work with any standard keystone wall plate, angled multimedia wall plate, or patch panel.
What wire gauge is required for the termination?
This jack is designed for 110/KRONE IDC horizontal punchdown termination using 22-26 AWG solid UTP wire.
Does this keystone jack support color-coding?
Yes, it complies with TIA-606 requirements, and this SKU is available in white to match your housing or assist in port designation.
What are the performance specifications for this Cat6 jack?
This jack balances signal transmission for insertion loss and crosstalk across a frequency range of 1 to 250 MHz.
Is the CG29311 compliant with environmental standards?
The product is listed with RoHS, REACH, and TSCA certifications, and is compliant with NDAA 889.
