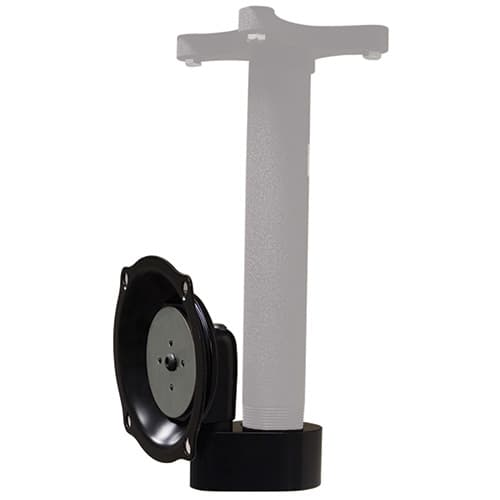

100 x 100 mm up to 400 x 200 mm 75 lbs US 20-43 Black
Ceiling mount for 20"–43" displays with 75 lbs capacity, featuring Centris tilt technology and toolless leveling
The Chief JHSVB is a single-screen ceiling mount designed for flat panel displays ranging from 20" to 43" (508 mm to 1092 mm). This mount utilizes exclusive Centris tilt technology, which allows the display to self-adjust and hold securely to various weights, ensuring the screen angle stays locked in place until the installer chooses to re-adjust it. The unit supports both landscape and portrait orientations and is compatible with VESA mounting patterns including 100 x 100mm, 200 x 100mm, 200 x 200mm, and 400 x 200mm. Installation is streamlined via a 1.5" NPT extension column that facilitates easy cable routing. This model includes a post-installation leveling roll that requires no tools for fine-tuning. It is important to note that the ceiling plate and extension column must be ordered separately to meet your specific installation requirements. For non-VESA compatible screens, the MSB interface bracket can be purchased as an accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 19.5" x 10.38" x 3"(495.3 x 263.7 x 76.2 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Typical Screen Size | 20" - 43" (508mm - 1092mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Ceiling |
| Color | Black |
| Mounting Method | VESA |
All other specifications 8
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872100562 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Unistrut Adapter
CMA370$23.20
Questions about this part
Will the Chief JHSVB fit my specific display?
This mount is designed for displays between 20" and 43" with VESA patterns of 100x100mm, 200x100mm, 200x200mm, and 400x200mm. It is rated for a weight capacity of 75 lbs (34 kg).
What else do I need to order to complete the installation?
The JHSVB is a mounting component only; you must separately order a ceiling plate and an adjustable or fixed extension column to complete the assembly.
How do I adjust the screen after it is mounted to the ceiling?
The mount features Centris tilt technology for screen positioning and includes a post-installation leveling roll that allows you to level the display without using tools.
Can I mount my display in portrait orientation?
Yes, the JHSVB supports both landscape and portrait mounting orientations for flexible installation in any environment.
How do I manage cables with this ceiling mount?
The 1.5" NPT extension column allows you to easily route cables through the column to maintain a clean, professional appearance.
