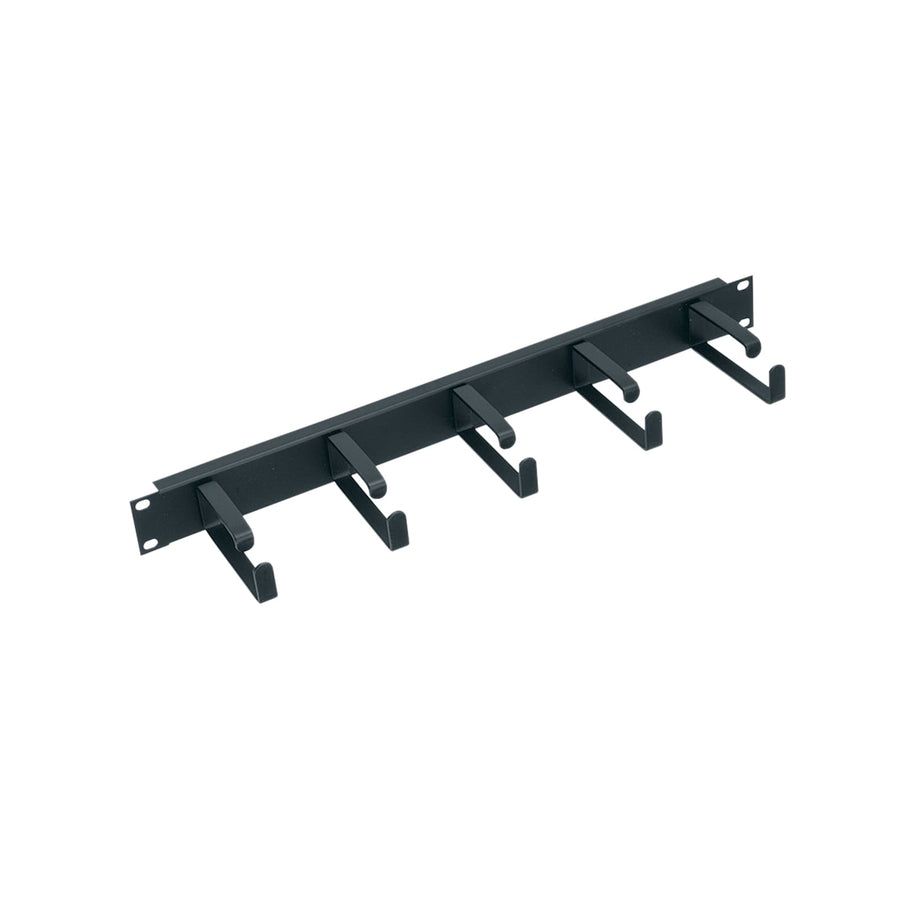

1 RU D-Ring Horizontal Cable Manager
1 RU horizontal cable manager with D-rings, designed to organize patch cords and maintain proper bend radius
The Middle Atlantic HCM-1D is a 1 RU horizontal cable manager designed to organize patch cords and maintain the required bend radius for sensitive cabling. This component uses a D-Ring style to provide a creative solution for routing cables, whether you are adding individual rings to a rack or mounting them to a wall using appropriate fasteners. Constructed from heavy-duty 16-gauge steel, this manager is built for durability in professional rack environments. This specific model is a 1 RU unit with 2 mounting points and a depth of 4.22 in (10.7 cm). For optimal performance and to ensure cables are not stressed, do not exceed a 50% fill rate when passing cables through the cable rings. This unit is a 19 in (48.3 cm) wide component intended for horizontal cable management applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.22 in (10.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 2.05 lbs (0.9 kg) |
| Width | 19 in (48.3 cm) |
| Component Type | Horizontal |
| Mounting Points | 2 |
| TAA Compliant | No |
| UPC | 656747008108 |
Resources
You'll need these with it

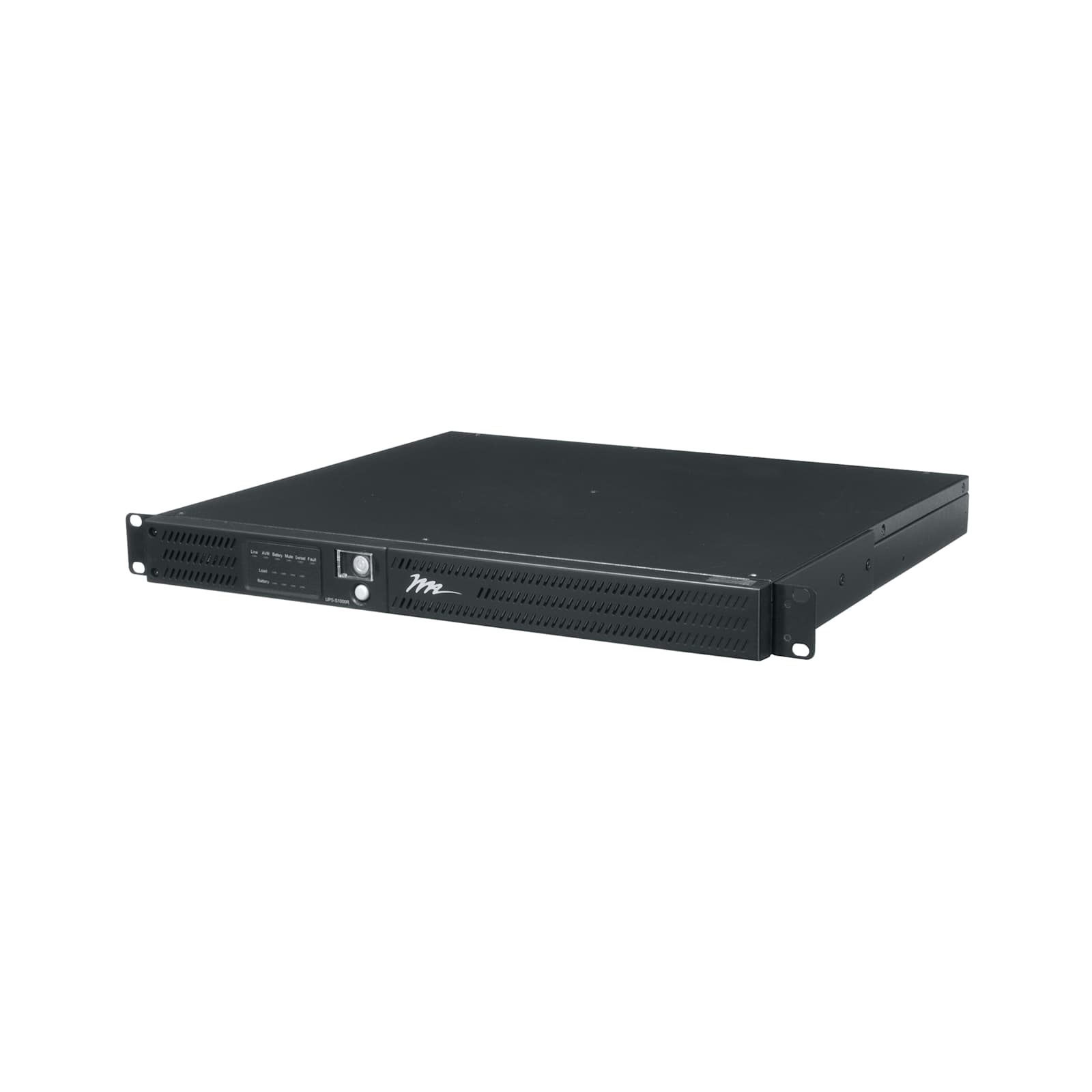

1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20

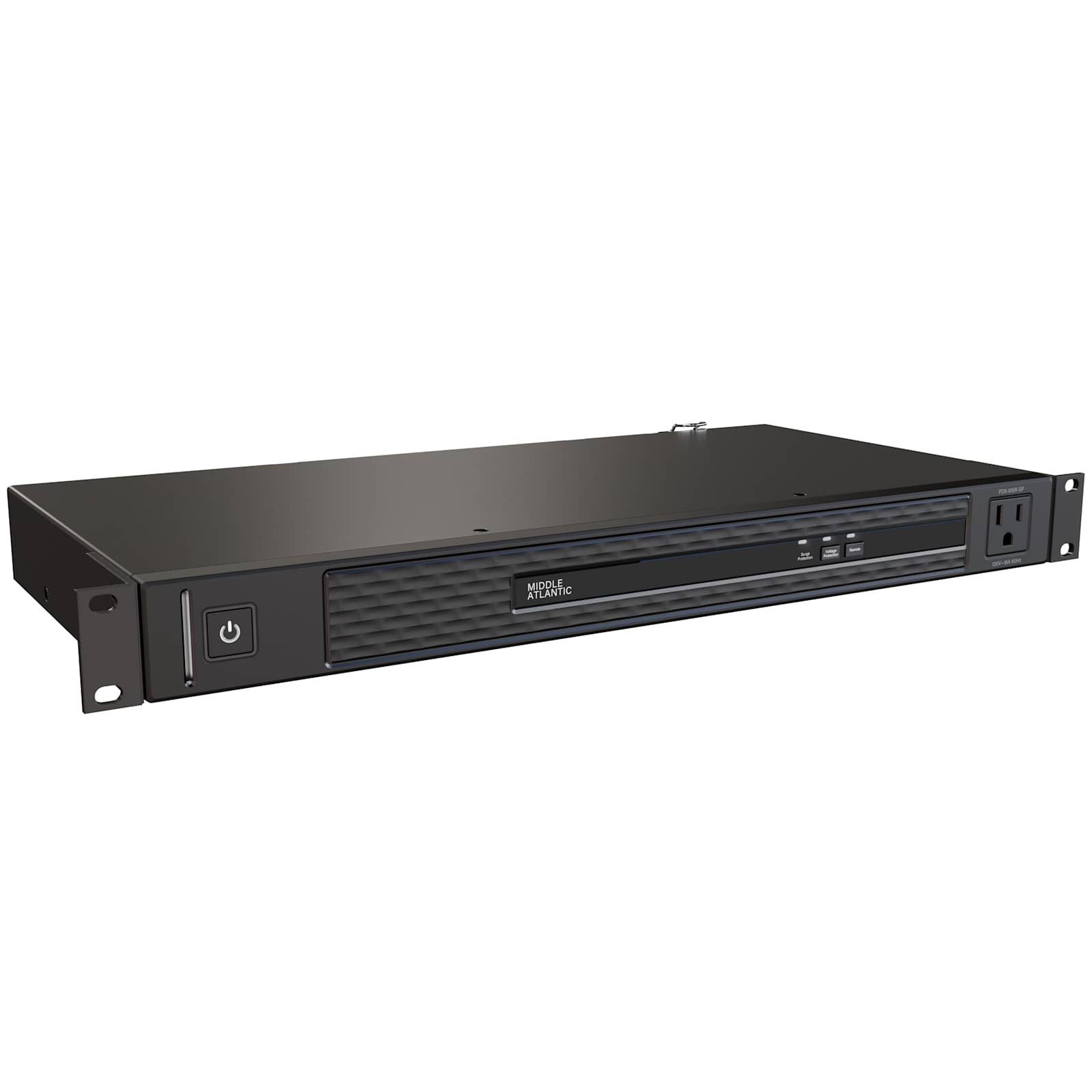

NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90

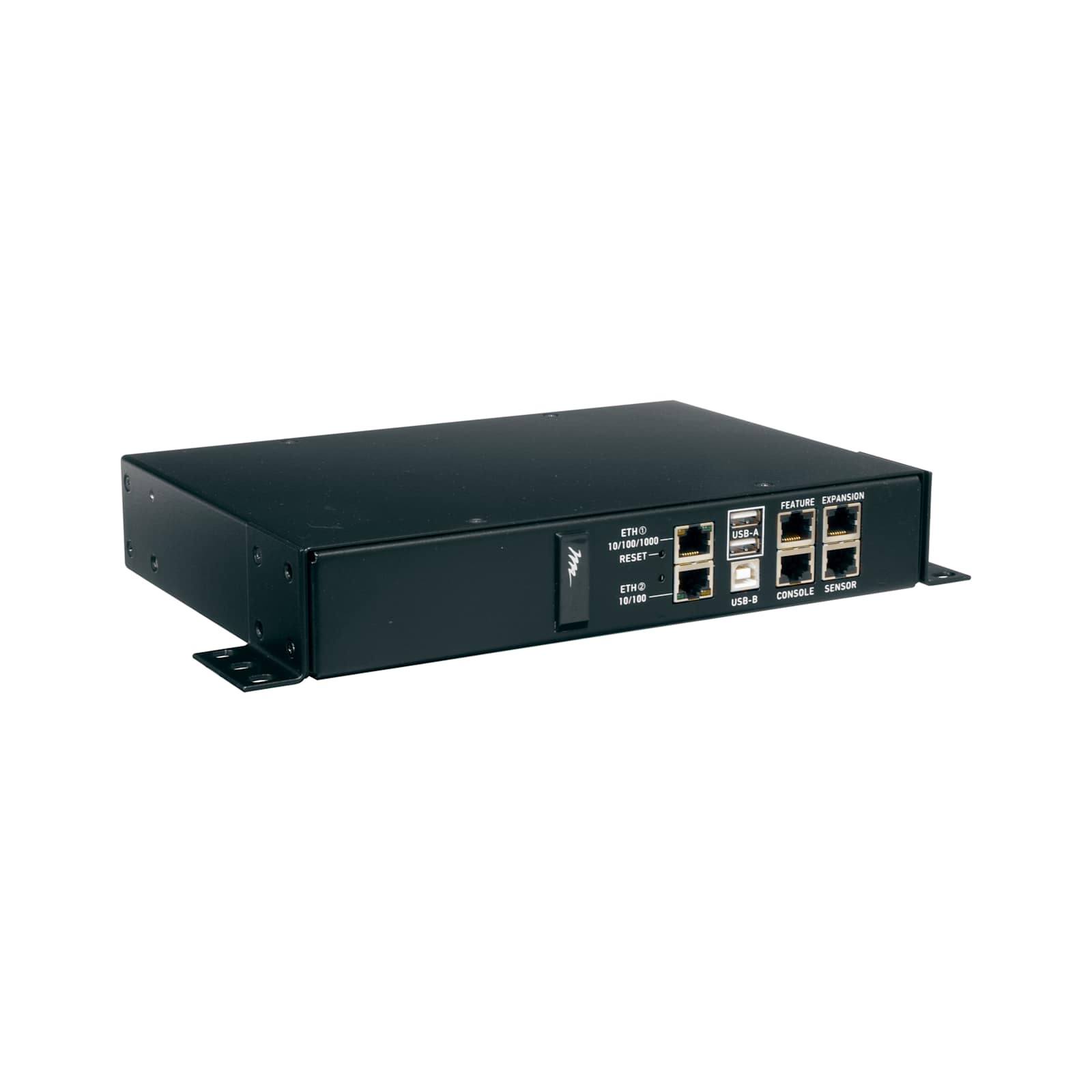

Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00

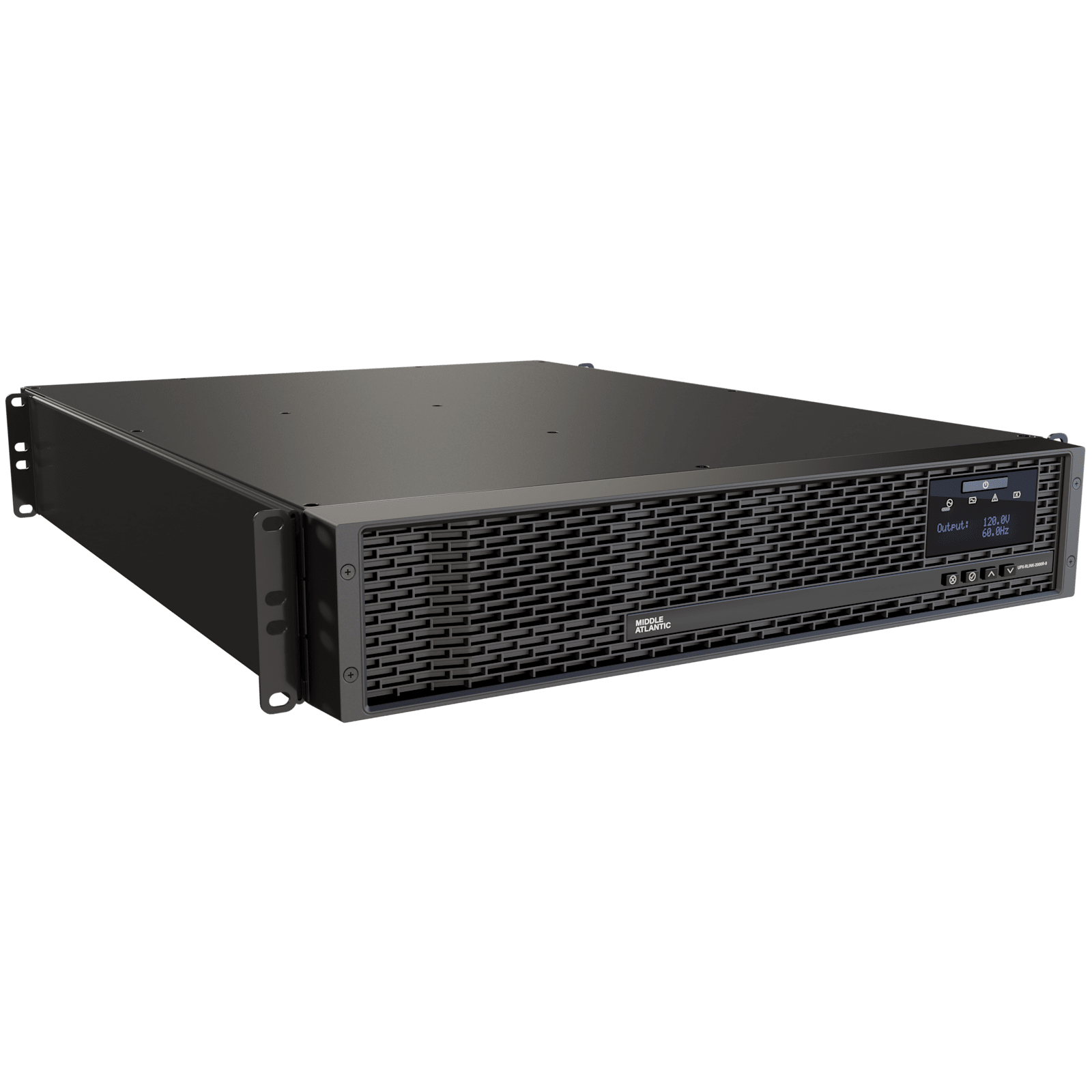

NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80

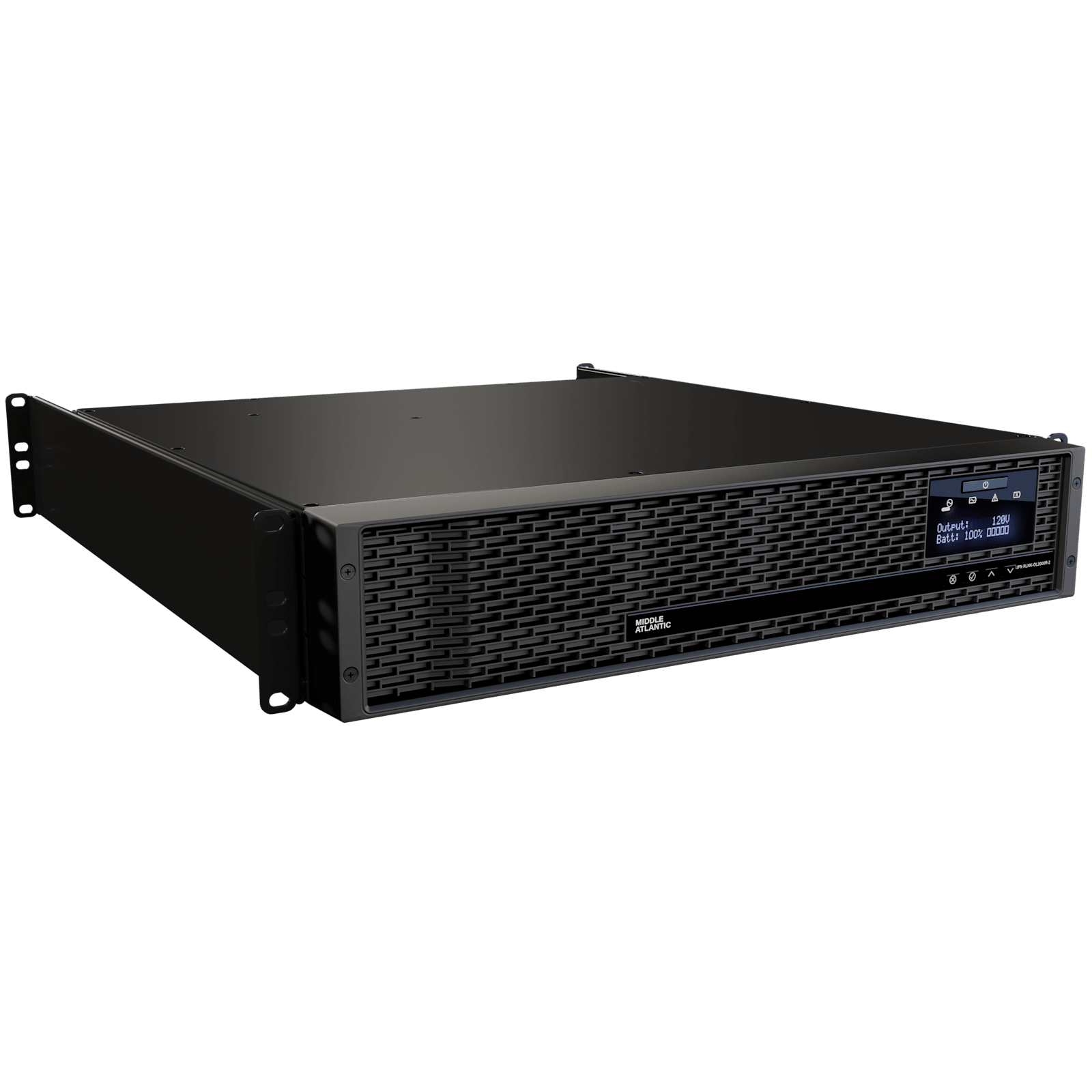

NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
Questions about this part
How do I ensure the best performance for my cabling?
For optimal performance and to protect your patch cords, do not exceed a 50% fill rate when passing cables through the D-rings.
What is the maximum capacity for the HCM-1D?
The HCM-1D is a 1 RU unit with a depth of 4.22 in (10.7 cm) and features two mounting points for installation.
Can I use this for wall mounting?
Yes, the D-Ring design allows for adding individual rings to a rack or on a wall using appropriate fasteners.
Which documents are available for submittals?
You can download the HCM Series Horizontal Cable Management A&E Specification PDF or the CAD Technical Specification Drawings (dwg) for submittal purposes.
Is the HCM-1D TAA compliant?
No, this specific model is not listed as TAA compliant.
