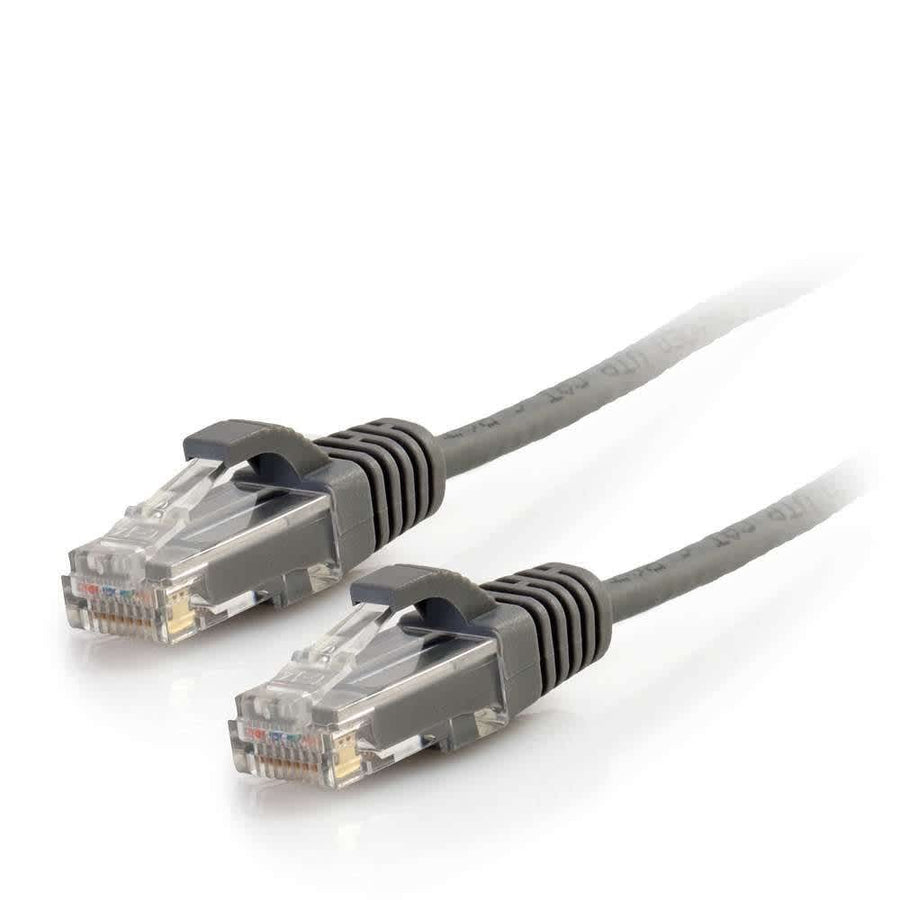

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Gray
0.5 ft (0.2 m) Cat6 Slim UTP patch cable in gray, featuring a 28 AWG conductor for high-density environments
The C2G CG01084 is a 0.5 ft (0.2 m) Cat6 Slim Snagless Unshielded (UTP) Network Patch Cable in gray, engineered specifically for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim 0.15 in (3.8 mm) profile significantly improves airflow within crowded equipment racks and allows for a much smaller bend radius, making it easy to route through tight cable management panels. This cable is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, supporting a 500 mHz bandwidth. For installations utilizing POE or POE+ applications, heat dissipation requirements limit bundling to 40 cables. This slim series is available in multiple colors and lengths to accommodate color-coded network architectures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010845 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What is the maximum recommended channel length using CG01084?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables alongside 90 meters of horizontal cable.
How does this slim cable differ from a standard Cat6 patch cable?
The CG01084 uses 28 AWG conductors which result in a 36% reduction in cable diameter and a smaller bend radius compared to standard Cat6 cables.
Can this cable be used for POE or POE+ applications?
Yes, but because of the heat dissipation characteristics of reduced diameter cables, it is recommended to limit cable bundles to 40 cables.
Is the CG01084 compatible with high-density patch panels?
Yes, its small diameter and bend radius make it ideal for routing through cable management panels and high-density hardware like the 48-Port Rack Mount Patch Panel (SKU 48845CC6).
What is the maximum bandwidth for this Cat6 slim cable?
This Cat6 Slim Patch Cable supports a bandwidth of 500 mHz for high-speed data, voice, and video distribution.
