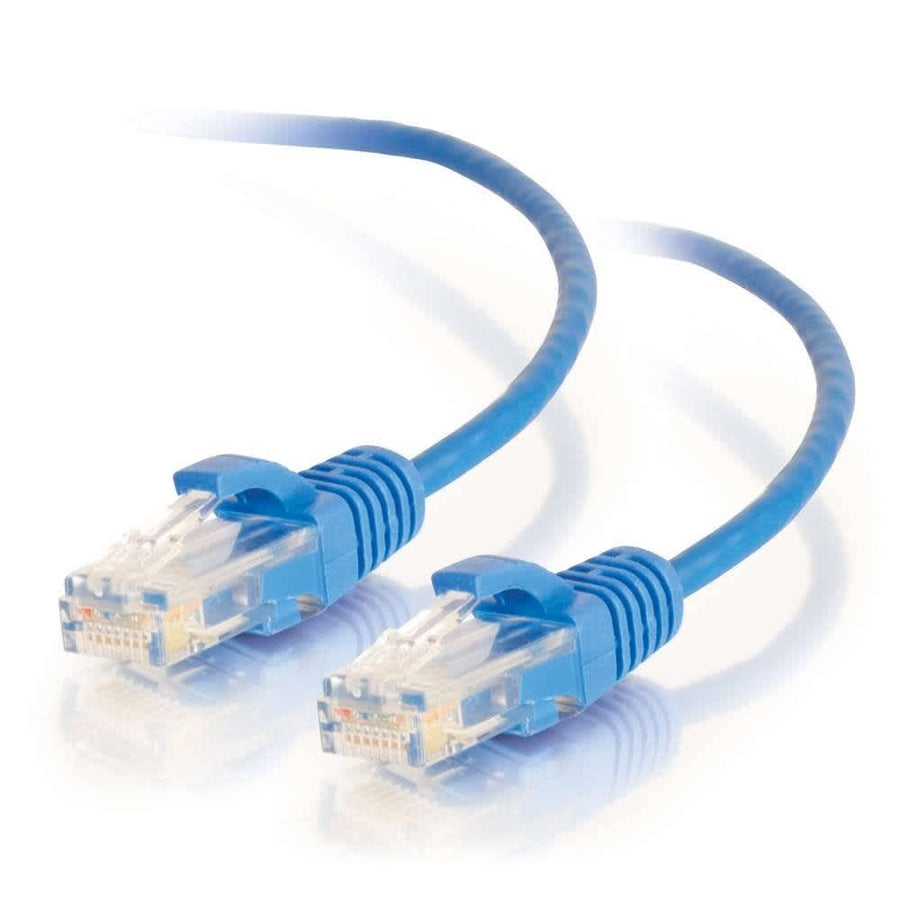

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
0.5ft (0.15m) blue Cat6 slim UTP patch cable with snagless boots, ideal for high-density datacenter applications
The CG01071 is a 0.5ft (0.15m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable in blue. Designed specifically for high-density datacenter applications, this slim series cable utilizes 28 AWG stranded copper conductors, which results in a 36% reduction in diameter compared to standard Cat6 patch cables. This 0.15 in (3.8 mm) diameter allows for increased airflow and a smaller bend radius, making it easy to route through crowded cable management panels. This cable supports bandwidth-intensive applications including voice, data, and video distribution with a 500 mHz bandwidth. The molded snagless PVC boots provide extra strain relief and prevent accidental snags during installation. When using this cable for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to manage heat dissipation caused by the reduced diameter. This cable is compliant with the latest ANSI/TIA-568 standards and is NDAA 889 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.01 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010715 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

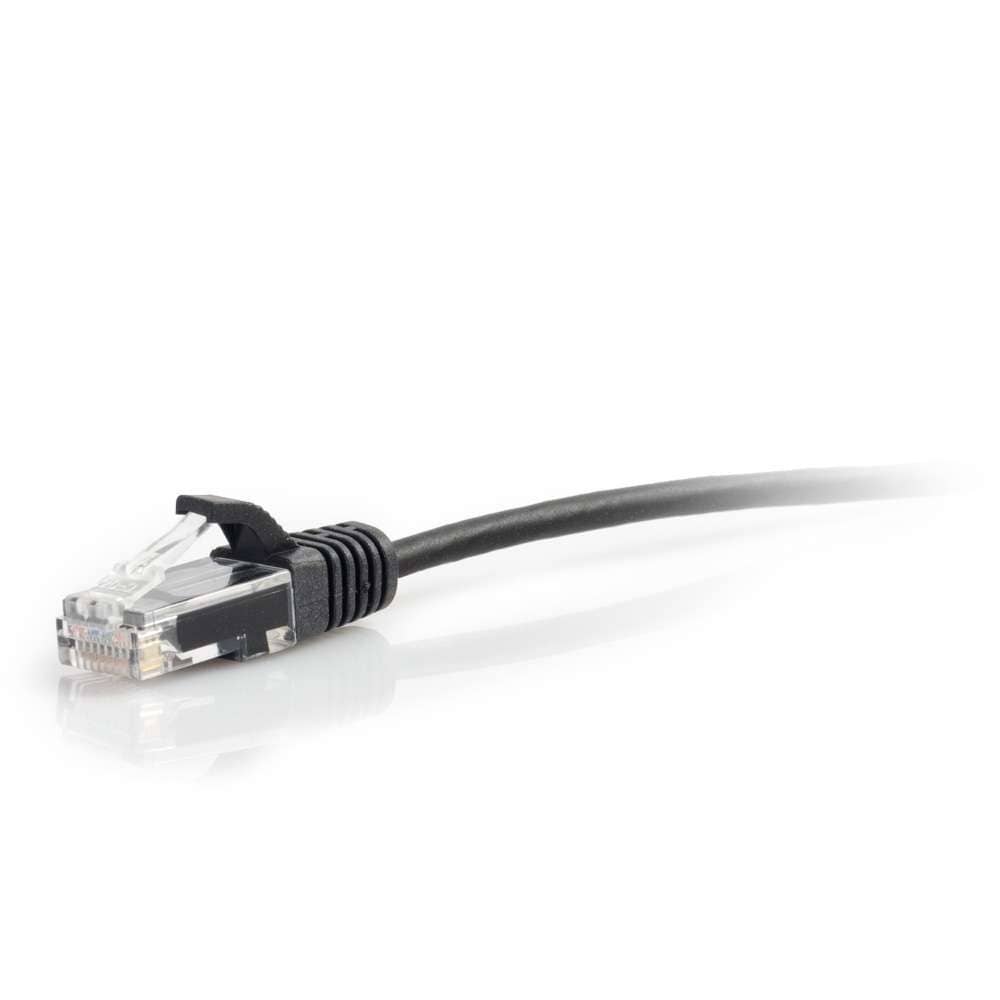

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
CG01097$7.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Is this cable suitable for high-density datacenter environments?
Yes. The CG01071 uses a slim 28 AWG design that reduces cable diameter by 36%, improving airflow and easing routing through dense management panels.
What is the maximum channel length when using these slim patch cables?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables. For a 93 Meter Channel, you can use up to 10 meters.
Can I use this cable for PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 cables to ensure proper heat dissipation.
What is the maximum bandwidth for this Cat6 cable?
This Cat6 slim cable supports a bandwidth of 500 mHz, making it suitable for bandwidth-intensive video and data distribution.
What other colors and lengths are available in this series?
The series includes various lengths from 0.5ft to 15ft and multiple colors such as Black, Green, Orange, and Red.
