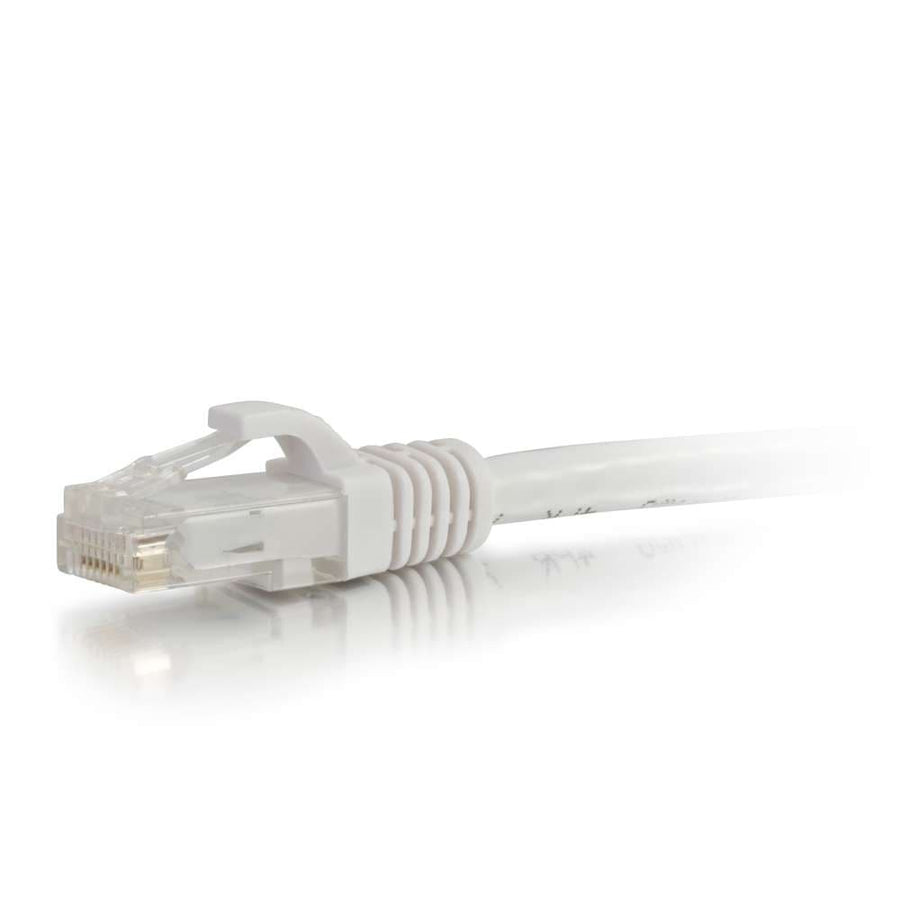

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
White Cat6 snagless patch cable, 0.5 ft (0.2 m) length, unshielded UTP with stranded copper conductors
The C2G CG00959 is a 0.5 ft (0.2 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in white, designed for high-bandwidth voice, data, or video distribution. Built for fast Ethernet and Gigabit computer networks, this cable meets all Cat6 TIA/EIA standards to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing from the termination point to the end of the line, which helps minimize Near-End Crosstalk (NEXT) levels. The cable features a 0.24 in (6.2 mm) diameter and uses high-quality stranded copper conductors with a 24 AWG wire gauge. For ease of installation, the RJ-45 male connectors include a molded, snagless PVC boot that protects the clips during frequent plugging and unplugging and provides extra strain relief. This unshielded twisted pair (UTP) cable is part of a series that is available in up to 10 colors for network color-coding and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009597 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for high-bandwidth applications including fast Ethernet and Gigabit computer networks.
What is the difference between this and other C2G patch cables?
This SKU is a 0.5 ft (0.2 m) white variant; the C2G series offers up to 150ft lengths and 10 different colors for color-coding.
Does the snagless boot provide extra protection?
Yes, the molded snagless boot protects the connector clips from being damaged during installation and provides additional strain relief.
Is this cable suitable for high-density patch panels?
Yes, it is compatible with various C2G components like the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) and 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What are the compliance certifications for the CG00959?
This product carries CE, RoHS, and REACH certifications and is NDAA 889 compliant.
