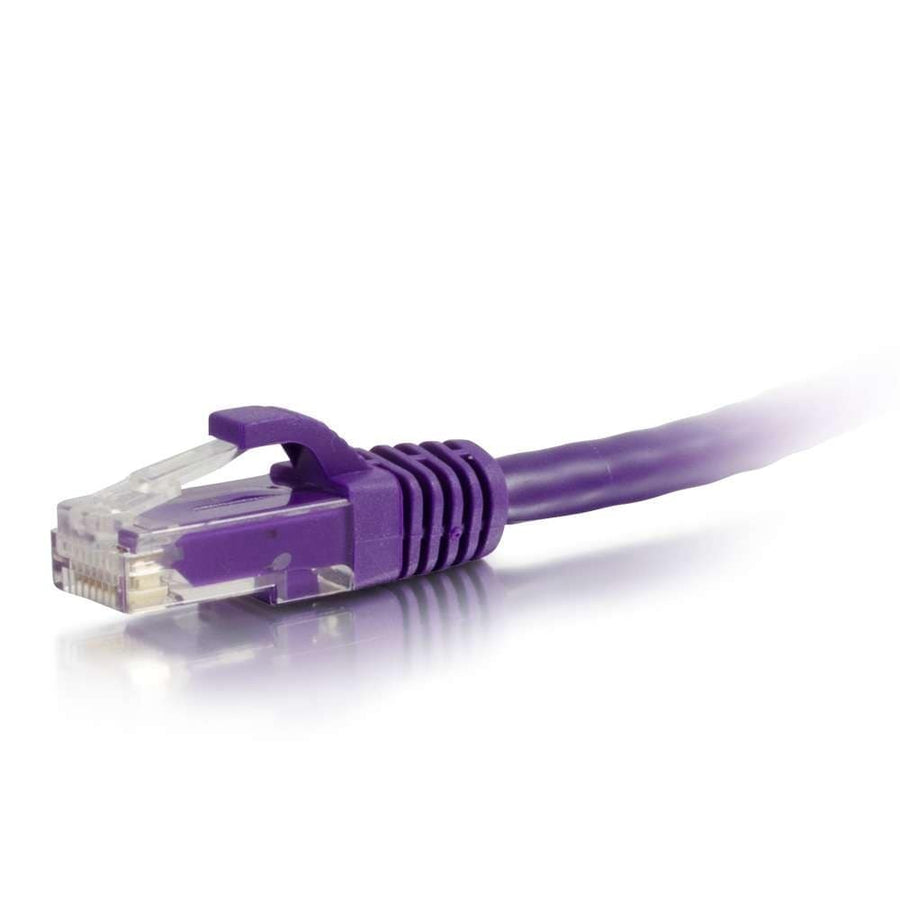

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
0.5 ft (0.2 m) Cat6 Unshielded UTP Ethernet patch cable in purple, featuring snagless boots and stranded copper conductors
The C2G CG00958 is a 0.5 ft (0.2 m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications requiring fast Ethernet, Gigabit computer networks, voice, data, or video distribution. This purple cable is constructed with high-quality stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point, which drastically reduces impedance and structural return loss (SRL). The cable utilizes a standard T568B wiring scheme and features 0.24 in (6.2 mm) diameter PVC jacket. Both RJ-45 male connectors are equipped with molded, snagless boots made of PVC to protect the clips from damage during installation and provide added strain relief. This Cat6 performance application is suitable for various networking environments and is available in multiple colors for easy organization.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009580 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
