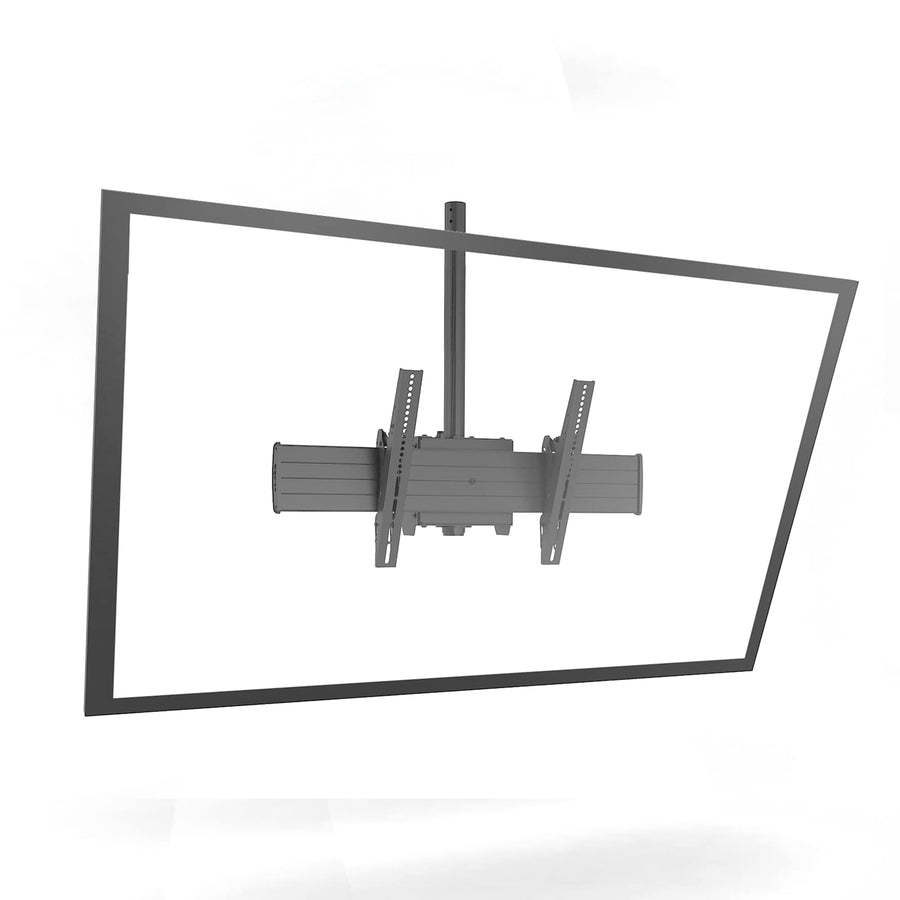

XCM1U, Fusion® Extra-Large Single Pole Flat Panel Ceiling Mounts
Single pole ceiling mount for extra-large displays up to 250 lbs, supporting landscape orientation with tilt adjustability
The Chief XCM1U is a single pole drop ceiling mount designed specifically for extra-large flat panel displays in landscape orientation. This solution is intended for digital signage installations where precise positioning is required. It supports displays that are 5" deep and thinner. For heavier or deeper displays, installers should consider the Chief XCM7000 dual drop solution. This unit is UL Listed and features post-installation leveling rolls to ensure a plumb finish once mounted. The XCM1U is compatible with both traditional 1.5" NPT ceiling plates and the newer CPA pinned ceiling plate and column systems. For a finished look, Chief Fusion Universal Back Covers can be used to provide aesthetic covering to the rear of the display and mounting components. Note that the ceiling plate and extension column are required and must be ordered separately to complete the assembly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 51" x 12" x 7" (129.5 x 30.5 x 17.8 cm) |
| Shipping Weight | 30.8 lbs (14 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Adjustability | Tilt |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
All other specifications 7
| Post-Installation Leveling Roll | Yes |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +5° and - 20° |
| UPC | 841872159393 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Verified fitment
Questions about this part
Will the Chief XCM1U fit my specific display?
This mount is verified against 12,601 display models from 335 manufacturers, including Sony 65BZ30P, LG 100QNED85AU, and Samsung 400CX.
What else do I need to buy to complete the installation?
The XCM1U requires a ceiling plate and an extension column to be ordered separately; it is compatible with 1.5" NPT or CPA pinned systems.
Can I adjust the tilt once the display is mounted?
Yes, the mount features tilt adjustability of +5° to -20° and includes post-installation leveling rolls for fine-tuning.
Is there a way to hide the cables and mounting hardware?
Yes, you can use Chief Fusion Universal Back Covers to provide an aesthetic covering to the rear side of the displays and components.
What is the weight capacity of this single pole mount?
The XCM1U has a weight capacity of 250 lbs (113.4 kg) and is designed for displays up to 5" deep.
