WR Series Roll Out Racks in Steel Enclosure - WR-37-42
37 RU roll out rack in a steel host enclosure, 36" usable depth, with 750 lbs UL load capacity

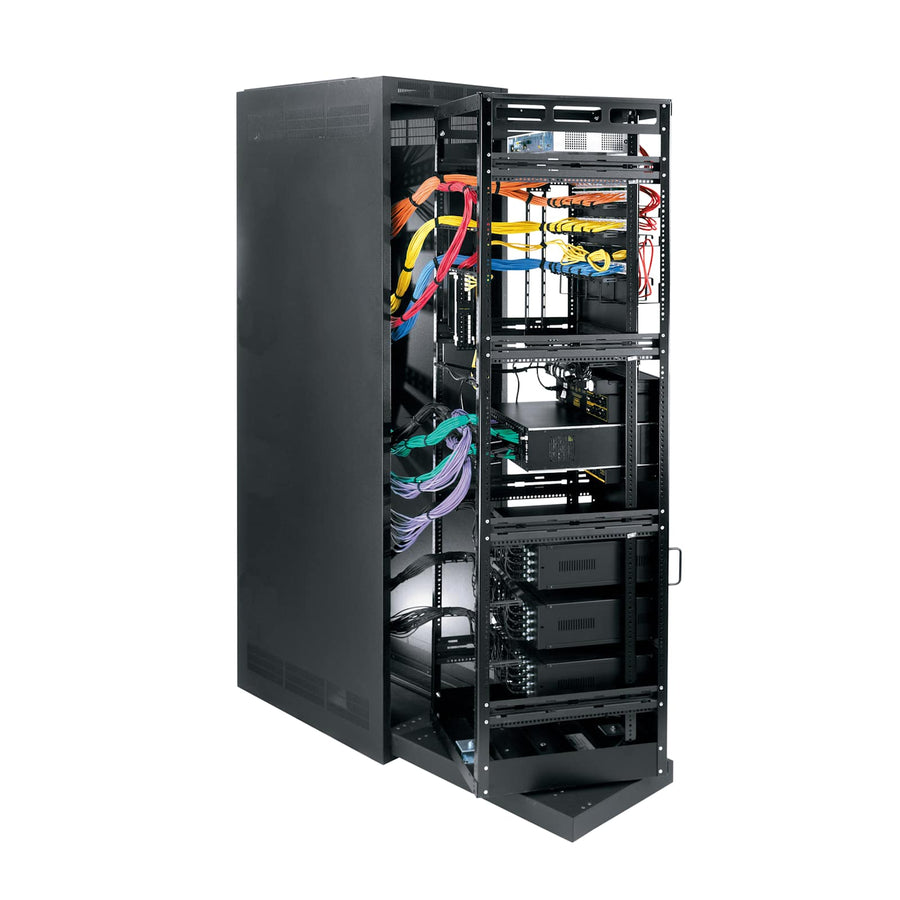

The Middle Atlantic WR-37-42 is a 37 RU roll out rack housed in a steel enclosure, designed to solve the challenges of servicing equipment in tight spaces. This system is specifically engineered for installations where equipment bays are placed against a wall or in back-to-back configurations, making rear access difficult. The detachable rack frame pulls out and rotates, allowing installers to access rear connections without needing a dedicated service aisle. This makes it an essential solution for large-scale audio, video, and security deployments where space is limited. The host enclosure can be pre-installed on-site, and the frame itself can be integrated with equipment and tested before final installation. For thermal management, the enclosure features optimized engineered ventilation for passive cooling. The 37 RU frame includes built-in cable management tie points and features standard front and rear 10-32 threaded rackrails with marked spaces for precise installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42.88 in (108.9 cm) |
| Height | 76.61 in (194.6 cm) |
| Product Weight | 319.6 lbs (145 kg) |
| Rack Units | 37 RU |
| Shipping Weight | 360 lbs (163.3 kg) |
| UL Load Capacity | 750 lbs (340.2 kg) |
| Usable Depth | 36 in (91.4 cm) |
| Usable Height | 64.75 in (164.5 cm) |
All other specifications 7
| Width | 24 in (61 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747102882 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar 6 Inch Offset, L-Shaped - 10 Pieces
LBP-6A$130.50
37 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-37-OP$320.40
100 CFM Fan Panel, 27dB, Anodized, Intake Only
UQFP-4RA-INT$647.10
37 RU Rear Access Panel for WR Racks
WR-RAP-37$364.50
100 CFM Fan Panel, 27dB, 220 - 240VAC
IUQFP-4$630.90
37 RU Rackrail 10-32 for WR Series
WR-RR-37$158.40
10-32 Rackscrew 3/8 Inch Long - 500 Piece
HPQ-500$187.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Will this rack work in a space without a rear service aisle?
Yes, the WR-37-42 is designed for installations where equipment is placed against a wall or back-to-back. The rack frame rotates and pulls out to provide access to rear connections.
What is the load capacity of the WR-37-42?
This unit has a UL load capacity of 750 lbs (340.2 kg), making it suitable for heavy audio, video, and security equipment.
How much usable depth does this 37 RU rack provide?
While the overall enclosure depth is 42.88 in (108.9 cm), the usable depth of the rack is 36 in (91.4 cm).
Can I test my equipment before the final installation?
Yes, the detachable rack frame can be integrated with your equipment and tested off-site before it is mounted in the host enclosure.
What kind of rackrails does this enclosure use?
The unit features standard front and rear 10-32 threaded rackrails that come with marked spaces for easy installation.
