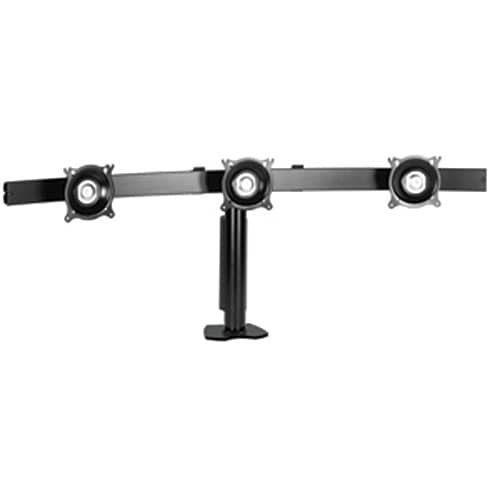

Widescreen Triple Horizontal Desk Clamp Mount - KTC325B
Triple monitor desk clamp mount for 10"–24" displays with height adjustment and tilt capability
The Chief KTC325B is a widescreen triple horizontal desk clamp mount designed for professional workstations, graphic designers, and broadcasters who require multiple small monitors. This 3x1 array configuration supports three displays, each with an individual weight capacity of 20 lbs (9.07 kg). It accommodates monitors with a typical screen size between 10" and 24" (254mm - 609.6 mm) and is compatible with VESA® 75 x 75 mm and 100 x 100 mm patterns. This mount utilizes Centris Technology to allow for smooth, fingertip tilt adjustments in all directions, ensuring screen angles remain locked until manually repositioned. For cable management, the system features snap-on covers and cable clips to protect wiring. The heavy-duty steel desk clamp and oversized pole provide stability for the 14.5" x 53.8" x 12.8" (368 x 1367 x 324mm) assembly. This TAA compliant solution allows for both landscape and portrait orientation through independent adjustment of each screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12.8 in (32.5 cm) |
| Equipment Height Range | 10" - 26" (25 - 66cm) |
| Equipment Width Range | 10" - 25" |
| Height | 14.5 in (36.8 cm) |
| Overall Dimensions | 14.5" x 53.8" x 12.8" (368 x 1367 x 324mm) |
| Shipping Weight | 22.35 lbs (10.1 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 20 lbs (9.07 kg) |
All other specifications 14
| Width | 53.8 in (136.7 cm) |
| Adjustability | Height AdjustableTilt |
| Application | Desk-Tabletop |
| Array Configuration | 3x1 |
| Color | Black |
| Mounting Method | Desk Clamp |
| Number of Displays | 3 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872145822 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Verified fitment
Questions about this part
Will the KTC325B fit my specific monitors?
This mount is verified against 7,500 device models from 258 manufacturers. Examples include Samsung 150MP, Philips 100WT10P, LG 15LA60, Dell 1703FP, NEC 1940CX, and Sharp AS173MBK.
How much weight can each monitor weigh on this mount?
The KTC325B supports a weight capacity of 20 lbs (9.07 kg) per monitor for a total of three monitors.
What mounting hardware or accessories do I need for digital media players?
You can add digital media player or CPU mounts using accessories such as the PAC261P, PAC261W, or PAC260D for direct-to-display VESA100 mounting.
Does this mount allow for screen orientation changes?
Yes, the KTC325B supports both landscape and portrait orientations to accommodate different workstation setups.
Can I use this for submittals or CAD work?
Technical drawings (PDF) and CAD drawings (dwg) are available for this series to assist with installation planning.
