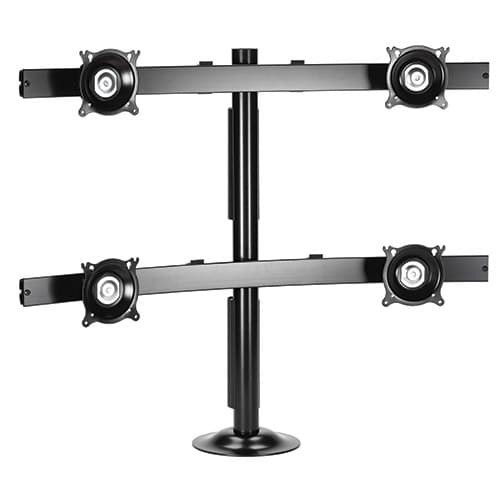

Widescreen Quad Monitor Grommet Mount - KTG445B
Widescreen quad monitor grommet mount for 10"–30" displays, 20 lbs capacity per monitor, in a 2x2 array configuration
The Chief KTG445B is a robust, bolt-down grommet mount designed for professional workstations, such as those used by graphic designers and broadcasters. This solution supports a 2x2 array of up to four displays, providing a stable, centralized mounting platform for multiple small flat panel monitors. Each individual monitor in the array has a weight capacity of 20 lbs (9.07 kg) and is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns. The system features Centris Technology, allowing for smooth, fingertip tilt in all directions to achieve precise ergonomic alignment. Users can adjust the equipment height within a range of 10" to 18" (25.4 - 45.7cm). This mount is TAA compliant and utilizes a teardrop hole pattern to facilitate quick and easy installation. The solid steel construction includes an oversized pole and heavy-duty bolting plates for maximum stability, while integrated cable management with snap-on covers helps maintain a clean workspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.9 in (17.5 cm) |
| Equipment Height Range | 10" - 18" (25.4 - 45.7cm) |
| Height | 28.5 in (72.4 cm) |
| Overall Dimensions | 28.5" x 34.5" x 6.9" (724 x 876 x 174mm) |
| Shipping Weight | 35.35 lbs (16 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Width | 34.5 in (87.6 cm) |
All other specifications 13
| Adjustability | Height AdjustableTilt |
| Application | Desk-Tabletop |
| Array Configuration | 2x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872106458 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Verified fitment
Questions about this part
Will this mount fit my specific monitors?
The KTG445B is verified against 8,296 display models from 260 manufacturers. It is compatible with 10" to 30" displays, including models such as the Samsung 150N, LG 15LA60, NEC 1940CX, and Dell 1703FP.
What is the weight limit for each monitor?
Each of the four monitors in the array has an individual weight capacity of 20 lbs (9.07 kg).
What can I use to mount a digital media player with this setup?
You can add digital media player mounts such as the Chief PAC260P or the PAC261W to your configuration.
How do I adjust the screen position after installation?
The mount features Centris Technology for smooth, fingertip tilt adjustment and includes a post-installation leveling roll to ensure proper alignment.
What are the mounting requirements for the desktop?
This grommet mount is designed for desk or tabletop applications with a desktop thickness range of 0.5" to 5" (13mm - 127mm).
