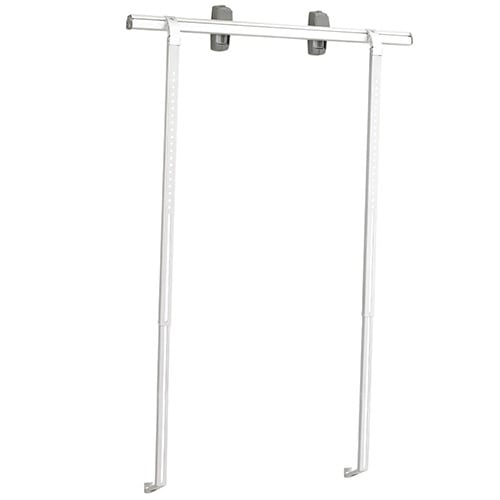

WBM3E, Micro-Adjustable Telescoping Whiteboard Mount
Telescoping whiteboard mount with micro-adjustable height and lateral shift for interactive boards, 125 lbs capacity, UL Listed
The Chief WBM3E is a micro-adjustable telescoping whiteboard mount designed to be installed directly to a wall over pre-existing chalkboards or dry erase boards. This mounting solution allows installers to provide maximum flexibility in classrooms or training environments where board heights may vary. The system features telescoping legs that can be anchored between 57.84" (146.91 cm) and 87.78" (222.96 cm) in height, allowing for precise positioning. The WBM3E offers micro-adjustment, lateral shift, and height adjustability to ensure the display is perfectly aligned after the initial wall installation. It is UL Listed and supports a weight capacity of 125 lbs (56.7 kg). While designed for SMART™ interactive boards, the WBAU Whiteboard Universal Adapter Kit is required for mounting other interactive board brands. The unit has a profile depth of 4.92" (12.5 cm) and is intended for landscape orientation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.92 in (12.5 cm) |
| Extension | 57.84" - 87.78" (146.91cm - 222.96cm) |
| Height | 82.78 in (210.3 cm) |
| Overall Dimensions | 82.78" x 46.93" x 4.92" (2102 x 1192 x 125 mm) |
| Shipping Weight | 27.55 lbs (12.5 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 46.93 in (119.2 cm) |
| Adjustability | Micro-Adjustable, Lateral Shift, Height Adjustable |
All other specifications 5
| Application | Wall |
| Orientation | Landscape |
| TAA Compliant | No |
| UPC | 841872157597 |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the WBM3E fit my interactive board?
The WBM3E is verified against 436 display models from 66 manufacturers. It is compatible with SMART™ models 480, 560, 580, and 660, as well as brands like LG, Panasonic, Samsung, Newline, and Pioneer.
How do I mount a non-SMART interactive board with this SKU?

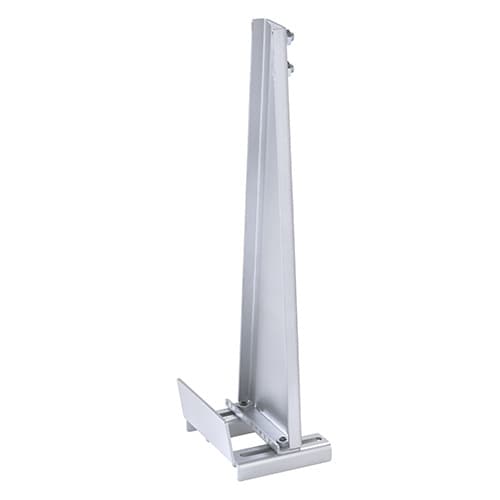

To mount interactive boards other than SMART™ brands, you will need to purchase the WBAU Whiteboard Universal Adapter Kit.
Can I adjust the board position after it is mounted to the wall?
Yes, this mount provides micro-adjustment, lateral shift, and height adjustability to facilitate precise positioning after installation.
What is the height range for the telescoping legs?
The telescoping legs can be anchored at a height between 57.84" (146.91 cm) and 87.78" (222.96 cm).
Does this mount require drilling into the existing whiteboard?
The WBM3E is designed to install directly to the wall over the board, allowing you to mount over pre-existing dry erase boards or chalkboards without causing damage.
