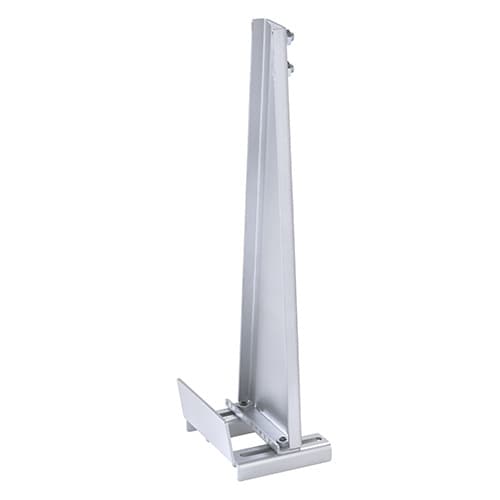

Whiteboard Universal Adapter Kit
Universal adapter kit for WBM2 uprights that supports interactive boards 39"-58" tall with a 125 lbs capacity
The Chief WBAU Whiteboard Universal Adapter Kit is used to adapt the WBM2 upright mount system for use with a wide variety of interactive boards. While the WBM2 is designed specifically for SMART ™ 685 and 690 boards, this kit enables the installation of other interactive boards, including Promethean 100, 300, and 500 Activboards, as well as Polyvision Eno Classic and TS series models. The kit captures around the bezel of the interactive board to provide a secure mounting solution. It is designed for landscape orientation and is compatible with boards that have a height between 39" and 58" and a depth between 1.1" and 2.7". The system offers height adjustment, lateral shift, and micro-adjustability to ensure proper positioning on the wall. This TAA compliant and UL Listed kit supports a weight capacity of 125 lbs (56.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18" x 10" x 6"(457.2 x 254 x 152.4 mm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Height AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| Orientation | Landscape |
| TAA Compliant | Yes |
| UPC | 841872155432 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the WBAU work with my interactive board?
The kit is designed for boards 39" to 58" tall and 1.1" to 2.7" deep, including Promethean 100, 300, and 500 Activboards and Polyvision Eno Classic or TS series boards.
What do I need to buy to use this adapter kit?
This kit must be used in conjunction with the WBM2 upright mount system.
What is the weight limit for the WBAU kit?
The adapter kit has a maximum weight capacity of 125 lbs (56.7 kg).
Can I adjust the position of the board once it is mounted?
Yes, the kit allows for height adjustment, lateral shift, and micro-adjustment to help with precise positioning.
Where can I find technical drawings for the WBAU?
Technical drawings for this product include a WBAU Technical Drawing in PDF format and a WBAU CAD Drawing in dwg format.
