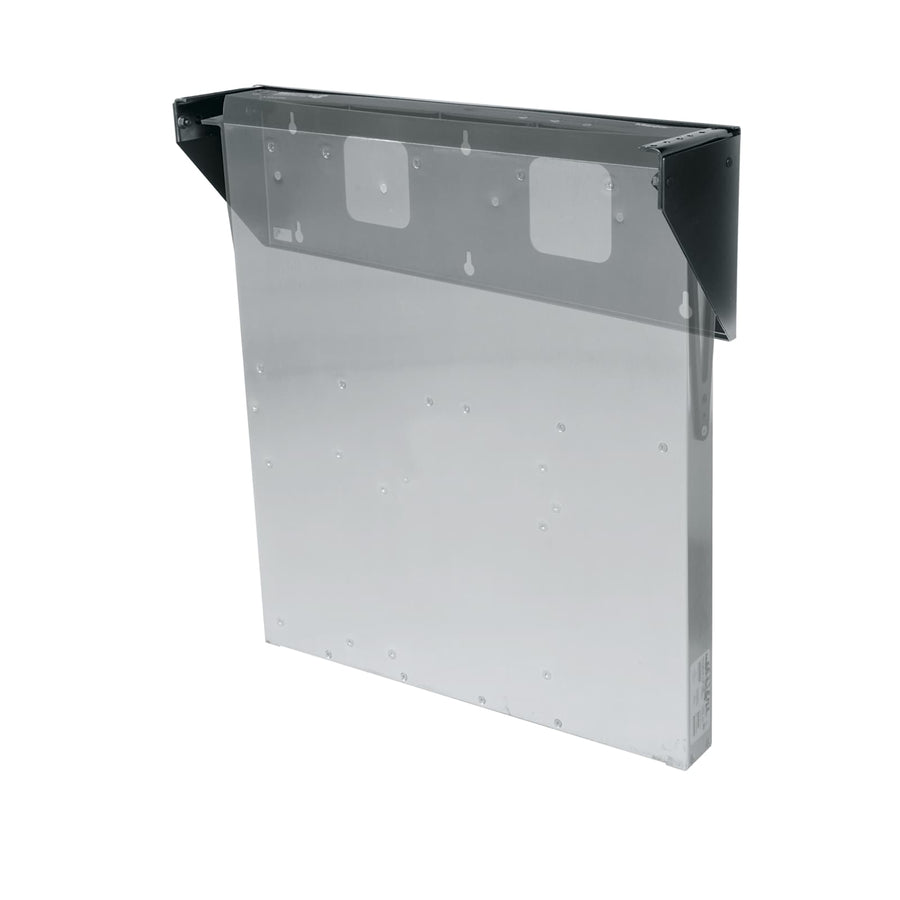

VPM Series Vertical Panel Mount Rack - VPM-3
3 RU vertical panel mount rack supporting all equipment depths with a 200 lbs weight capacity
The Middle Atlantic VPM-3 is a 3 RU vertical panel mount rack designed for installations where a full protective enclosure is not required. This versatile rack can be mounted horizontally under a desk or table, or installed vertically on a wall. It features heavy-duty 10-32 threaded rack rails and can accommodate equipment of any depth. For installers mounting this unit horizontally under a desk, the rack includes a specific hole for a safety screw to ensure secure attachment. The VPM-3 is TAA compliant and offers a weight capacity of 200 lbs (90.7 kg), making it a robust choice for professional audio-visual deployments. For maximum stability in 4-point mounting applications, installers can use two units together.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6 in (15.2 cm) |
| Height | 5.25 in (13.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747123757 |
| Certifications | TAA |
| Usable Height | 5.25 in |
Resources
You'll need these with it
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
1 RU Mounting Rackshelf - 50 Piece
UTR1MP$2,194.20
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
Questions about this part
How can I mount the VPM-3 under a desk?
The VPM-3 can be installed horizontally under a desk or table and includes a dedicated hole for a safety screw to secure the mount.
What is the weight capacity of the VPM-3 rack?
This 3 RU rack supports a weight capacity of 200 lbs (90.7 kg) using its heavy-duty 10-32 threaded rack rails.
Can this rack be used for equipment of any depth?
Yes, the VPM series is designed to accommodate all depths of equipment in both vertical and horizontal mounting configurations.
Is the VPM-3 TAA compliant?
Yes, the VPM-3 is TAA compliant and manufactured in Mexico.
Can I use two VPM-3 units together for mounting?
Yes, you can use two VPM units to provide a 4-point mounting solution for your installation.
