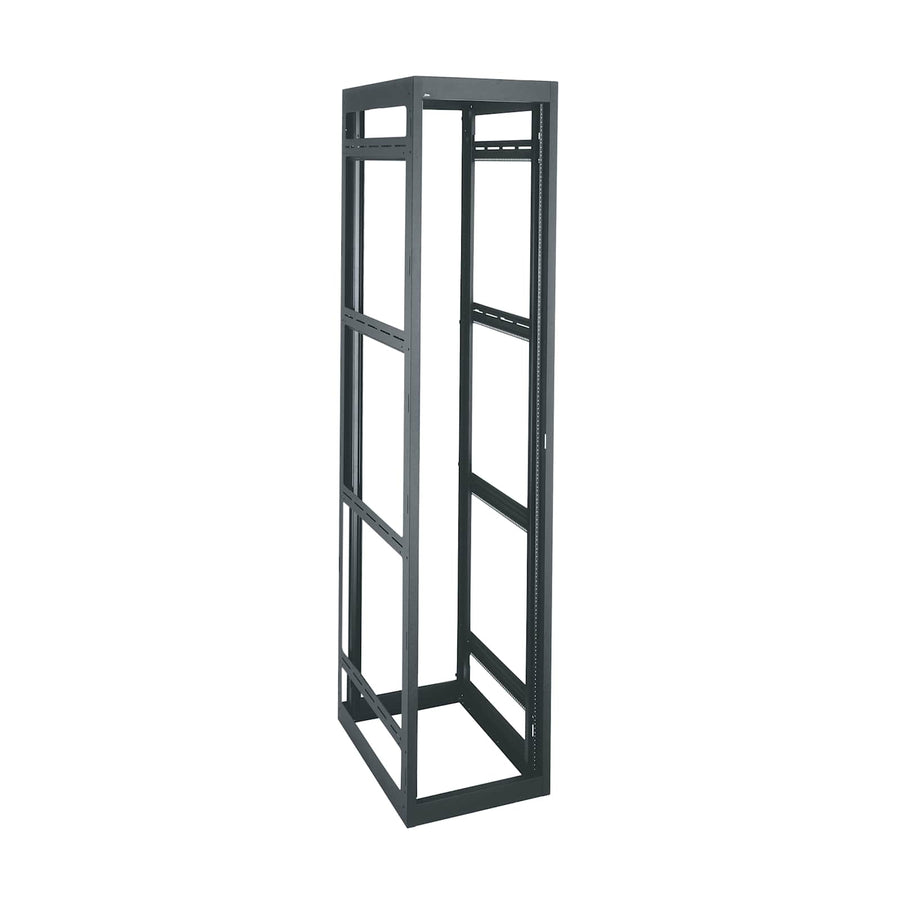

VMRK Series 22 Inch Wide Rack - VMRK-54LRD
Floor-standing 22" wide video rack with 54 RU of height and a 10,000 lbs weight capacity, seismic rated and TAA compliant
The VMRK-54LRD is a 22-inch wide floor-standing video rack designed to maximize vertical space in broadcast or professional AV environments. This taller version of the standard VMRK series provides 54 RU of total racking height, offering significant density for high-capacity installations. The frame features fully welded construction for maximum structural integrity, supporting a weight capacity of 10,000 lbs (4535.9 kg) and a UL Load Capacity of 2,500 lbs (1,134 kg). It is Seismic Rated with an ASCE 7-10 rating and a seismic load capacity of 640 lbs (290.3 kg). For cable management, the rack includes multiple lacing points and slotted rail brackets, alongside built-in horizontal lacing bars to facilitate quick tie-and-slide lacing for video cable bundles. The unit features standard 10-32 threaded "L-Rail" mounting with numbered spaces and is gangable, allowing multiple racks to be joined together when fully loaded. This TAA compliant rack provides a 29 in (73.7 cm) usable depth and 94.5 in (240 cm) usable height within its 31.4 in (79.8 cm) total depth footprint.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.4 in (79.8 cm) |
| Height | 100.64 in (255.6 cm) |
| Rack Units | 54 RU |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 29 in (73.7 cm) |
| Usable Height | 94.5 in (240 cm) |
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 22 in (55.9 cm) |
All other specifications 10
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747040269 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 640 lbs (290.3 kg) |
Resources
You'll need these with it
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
2 RU Brush Grommet Panel
BR2$106.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

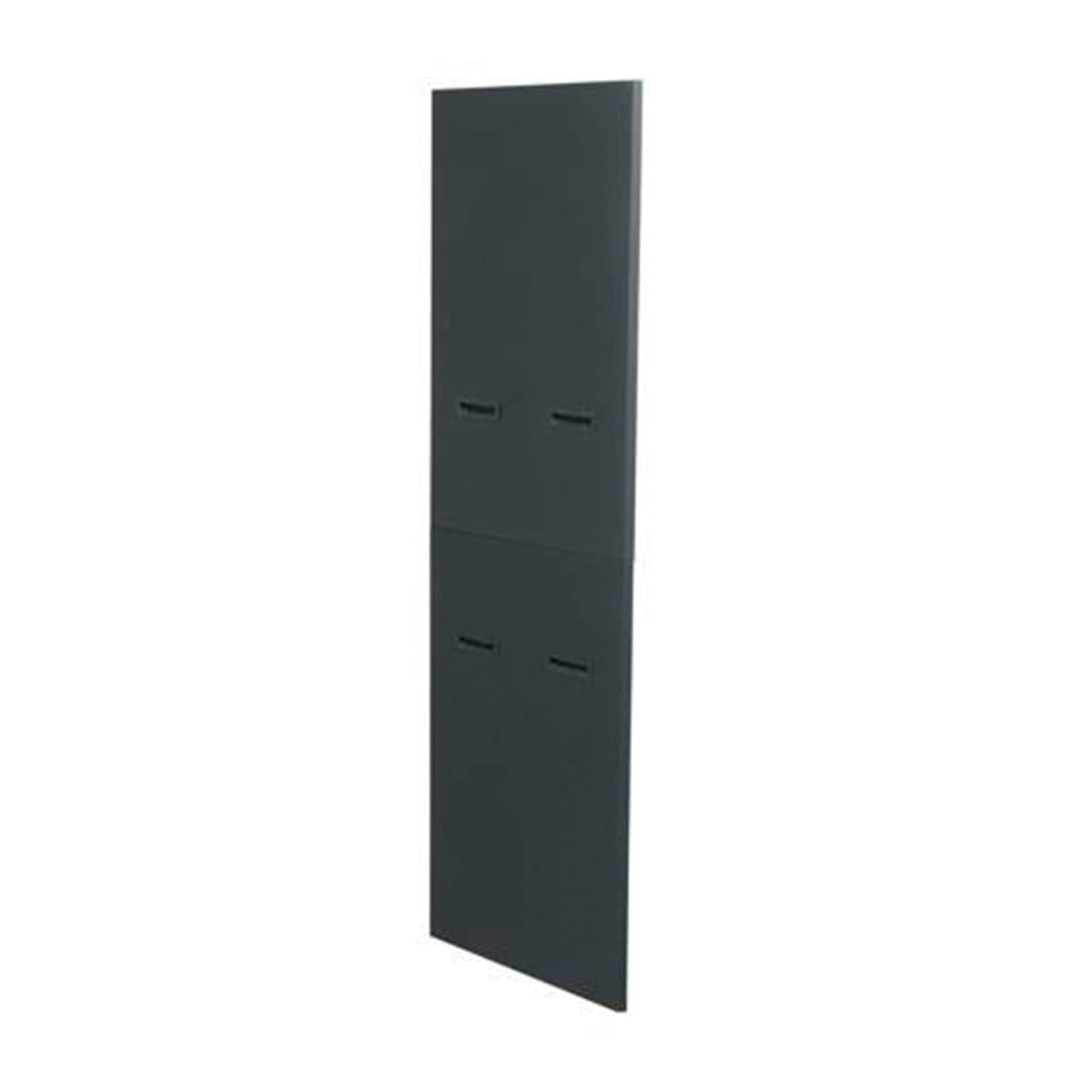

54 RU Side Panels for 31-32 Inch Deep VMRK Racks
SPN-54-312$1,367.10
2 RU Horizontal Cable Manager with Front/Rear D-Rings
HCM-2DR$84.60

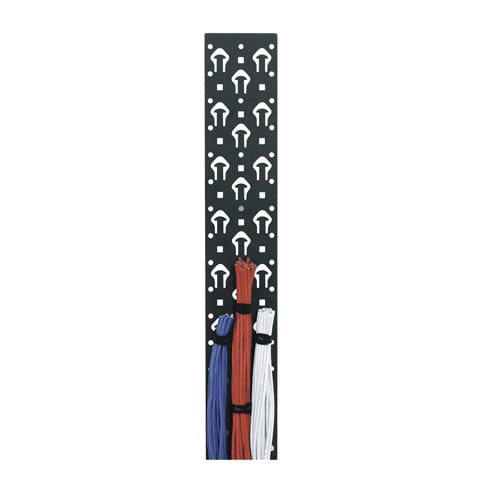

54 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-5254-OWP$511.20

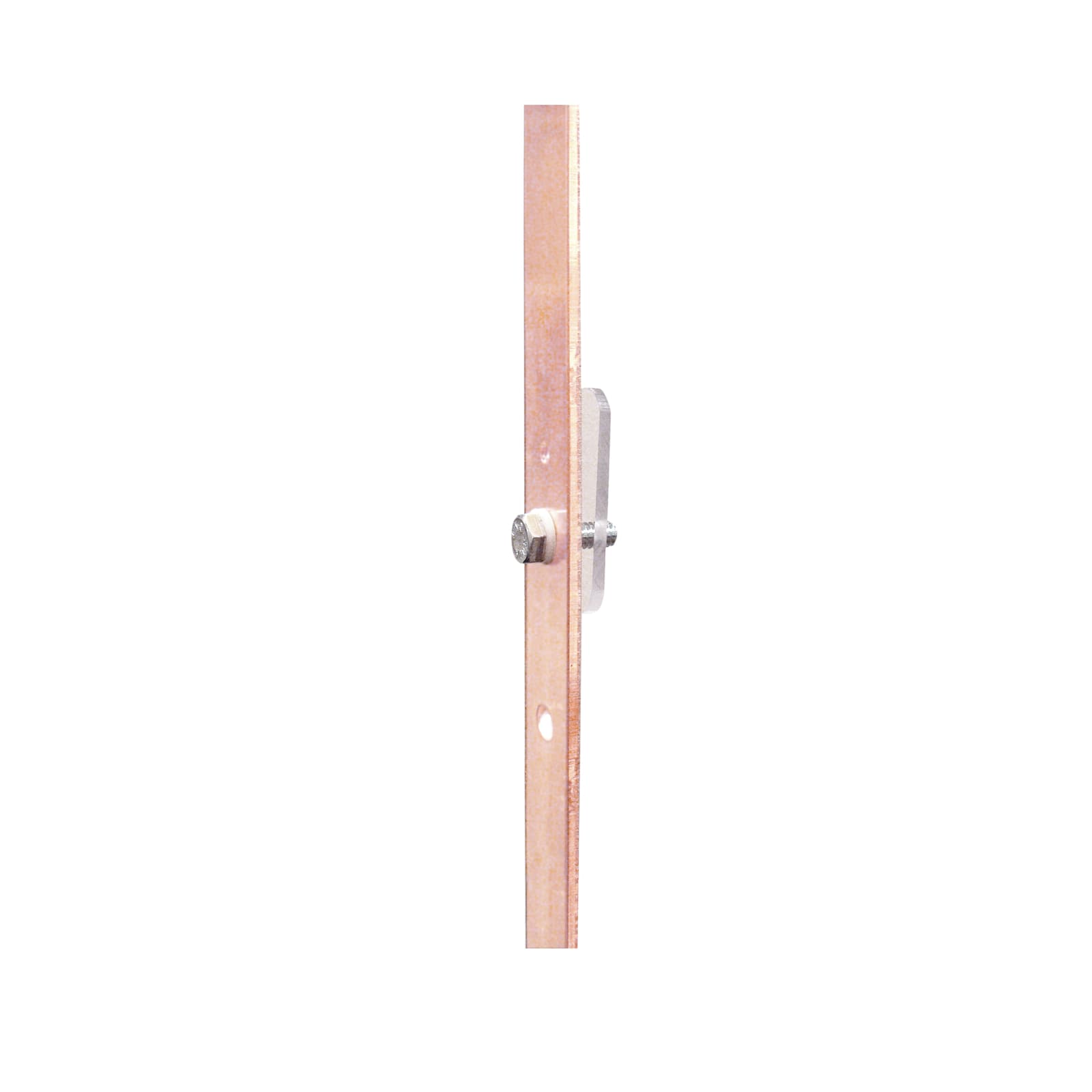

54 RU Copper Bus Bars, 1 Inch Wide
BB-5254-1$405.90

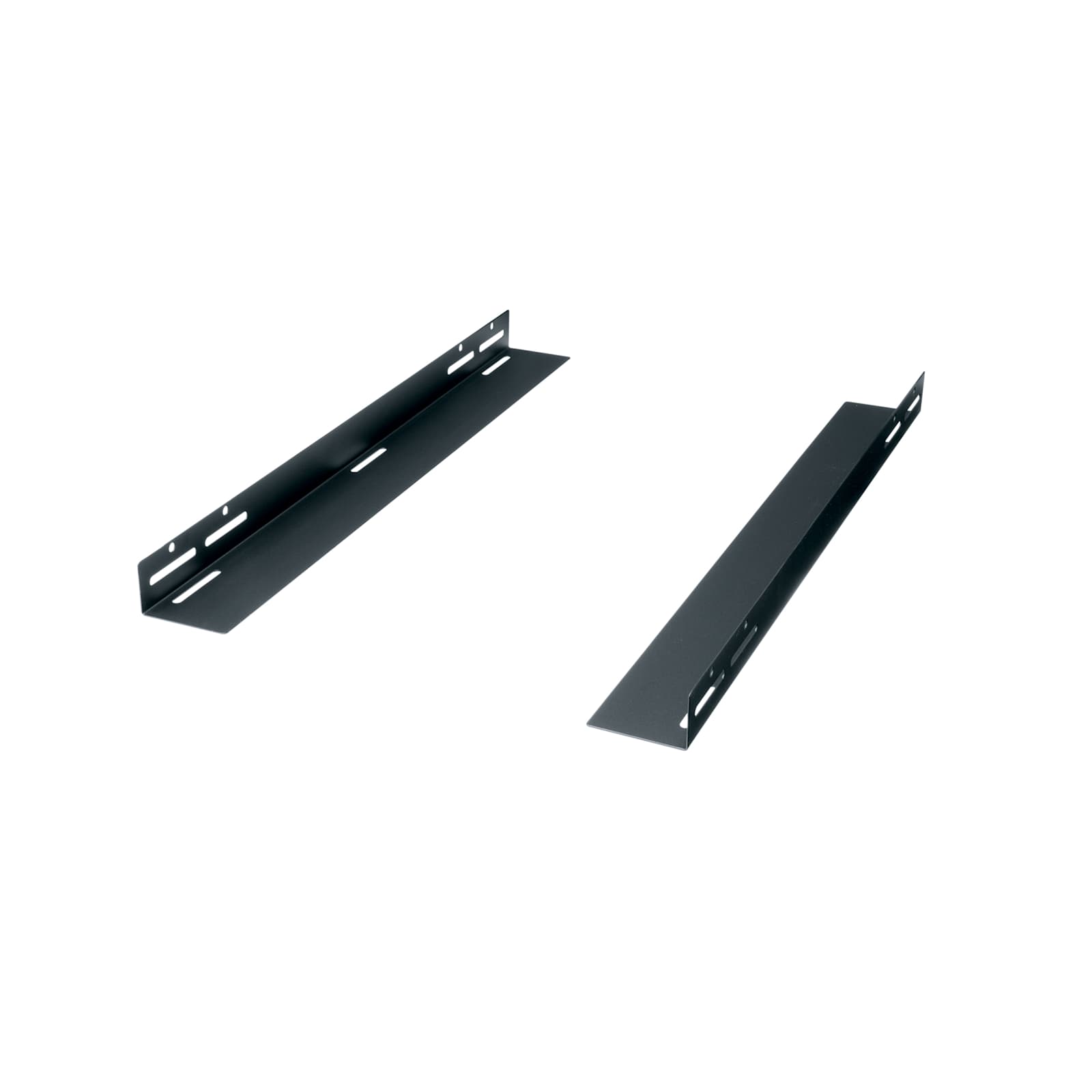

26 Inch Heavy Duty Chassis Brackets
CSA-26-H$135.00
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
Will the VMRK-54LRD fit my seismic requirements?
Yes, this rack is Seismic Rated with an ASCE 7-10 rating and a seismic load capacity of 640 lbs (290.3 kg).
What is the usable depth and height for equipment installation?
The VMRK-54LRD offers a usable height of 94.5 in (240 cm) and a usable depth of 29 in (73.7 cm).
Is this rack TAA compliant for government contracts?
Yes, the VMRK-54LRD is TAA compliant and manufactured in the USA.
What accessories are needed for side panels or cable management?
You can add 54 RU side panels designed for 31-32 inch deep racks (SKU: SPN-54-312) and use 54 RU Lace Strips (SKU: LACE-5254-OWP) for cable organization.
Can I mount multiple VMRK racks together?
Yes, the VMRK series is designed to be gangable, meaning the units can be joined together when they are fully loaded.
