VCM82X

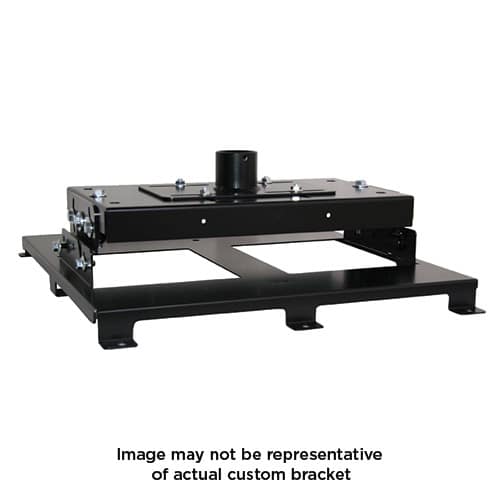

Ceiling mount for heavy LCD or CRT projectors with 250 lbs capacity and independent roll-pitch-yaw adjustability
The Chief VCM82X is a heavy-duty ceiling mount engineered to provide stable support for large, high-mass LCD or CRT projectors. Designed for professional installations, this mount handles a weight capacity of 250 lbs (113.4 kg). It features independent roll, pitch, and yaw adjustability to ensure precise projector alignment after installation. Specifically, you can achieve a 5° roll, a 20° pitch, and a full 360° yaw to correct the image angle. This TAA compliant and UL Listed solution uses a custom interface type and requires specific interface brackets to secure your particular projector model. Because this is a custom solution, installers should verify compatibility with the specific projector manufacturer and model before installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 24" x 14.5" x 12.5"(609.6 x 368.3 x 317.5 mm) |
| Shipping Weight | 22 lbs (10 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Interface Brackets |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | Roll: 5°, Pitch: 20°, Yaw: 360° |
| Application | Ceiling |
| Color | Black |
All other specifications 6
| Interface Type | Custom |
| Protective Glass | No |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167725 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
Truss Clamp
CMS380$138.40

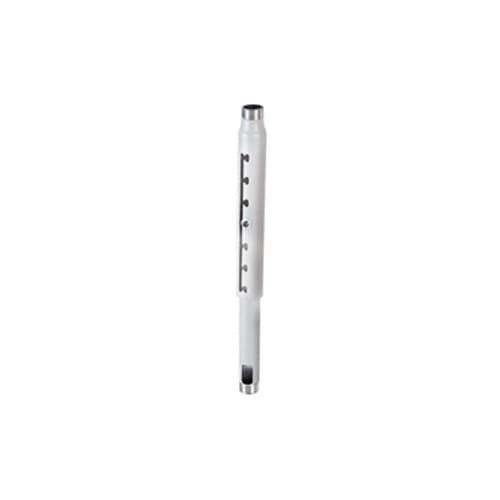

CMS1012W, 10-12' Adjustable Extension Column, Pole
CMS1012W$278.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Dual Electric Outlet Coupler
CMA504$106.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Questions about this part
Will the VCM82X fit my specific projector model?
This mount uses a custom interface type. You must select the correct interface brackets to ensure compatibility with your specific projector manufacturer and model.
How much weight can this projector mount support?
The VCM82X is designed for heavy-duty applications and has a weight capacity of 250 lbs (113.4 kg).
What kind of adjustments can I make once it is mounted?
The mount features independent adjustability including a 360° yaw, a 20° pitch, and a 5° roll to allow for precise image positioning.
What accessories do I need to complete the installation?
You will need appropriate interface brackets for your projector and may require ceiling plates such as the CMA115W, CMA330, or CMA105 depending on your mounting surface.
Which installation manual should I use for submittals?
For installation details, refer to the VCM Installation Manual (PDF) provided in the technical resources.
