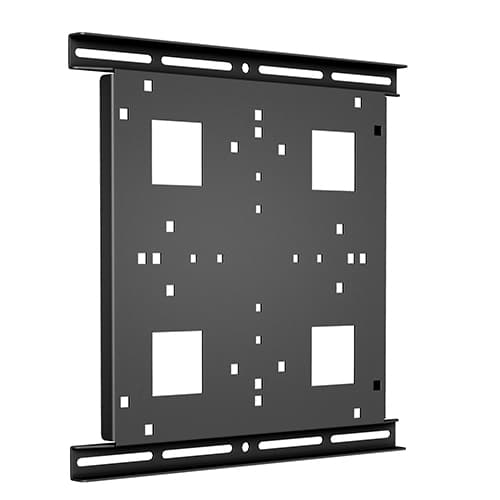

Variable Column Adapter
Variable column adapter for mounting displays to I-beams, trusses, or columns up to 19" (482 mm) wide
The FCAVCA Variable Column Adapter enables display installation on various structural surfaces, including I-beams, box-beams, trusses, and other column shapes. This adapter is designed for use with Fusion®, Fusion® Modular, and Thinstall Swing-Arm mounts. It is compatible with several Chief mount models, including MSM1U, LSM1U, MTMS1U, MTMP1U, MTM1U, LTM1U, FMSWM, TS118SU, TS218SU, and TS318SU. Capable of supporting both landscape and portrait orientations, this TAA compliant adapter can accommodate column widths up to 19" (482 mm). For specific mounting requirements, Chief offers the FCAVCSU80 U-Bolt Set for 8" x 6" I-Beams and the FCAVCU20 U-Bolt Set for 1.5-2.0" poles. This heavy-weight capacity solution is suitable for large venue applications involving steel or concrete columns.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 28.5" x 25" x 4"(723.9 x 635 x 101.6 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Typical Screen Size | Varies by mount used |
| Weight Capacity | 200 lbs (90.7 kg) |
| Accessory Type | InstallationMounting HardwareMulti-Display |
| Application | Variable Column |
| Material | Column Materials: SteelConcrete |
| Orientation | LandscapePortrait |
All other specifications 5
| Special Features | Large VenueMulti-Display |
| TAA Compliant | Yes |
| Tilt | Varies by mount used |
| UPC | 841872173016 |
| Certifications | TAA |
Resources
You'll need these with it

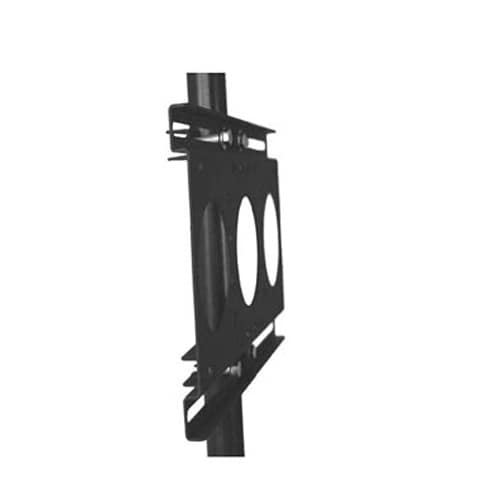

Pole Clamp Kit - 1 to 2 Inch OD (2 Pieces)
TPK1$50.40
Pole Clamp Kit - 2 to 3 Inch OD (2 Pieces)
TPK2$50.40
Truss Clamp Kit - 0 to 1 Inch OD (4 Pieces)
TPK3$77.60

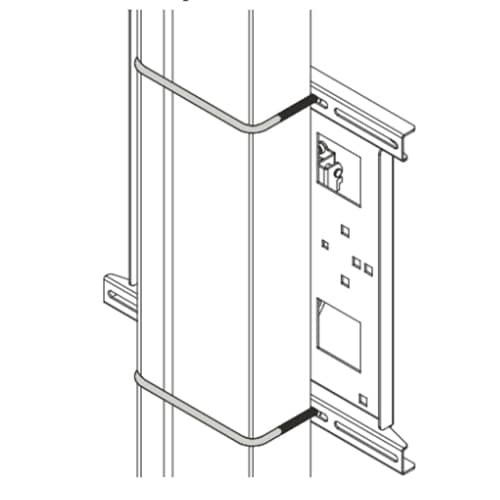

Square 8" x 6" U-Bolt Set
FCAVCSU80$76.00
2" U-Bolt Set
FCAVCU20$53.60

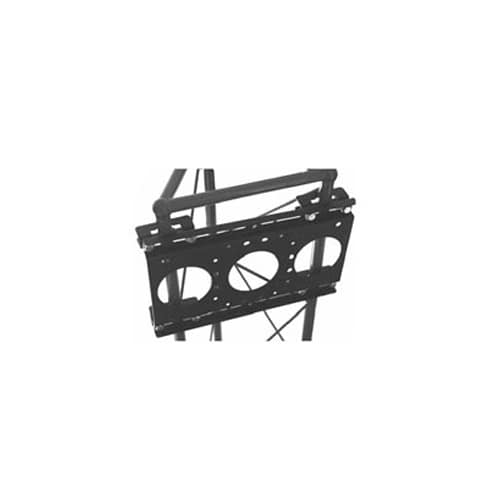

Truss Clamp Kit - 1 to 2 Inch OD (4 Pieces)
TPK4$80.00
Truss Clamp Kit - 2 to 3 Inch OD (4 Pieces)
TPK5$90.40
Questions about this part
Which Chief mounts are compatible with the FCAVCA adapter?
The FCAVCA works with Fusion®, Fusion® Modular, and Thinstall Swing-Arm mounts, specifically models MSM1U, LSM1U, MTMS1U, MTMP1U, MTM1U, LTM1U, FMSWM, TS118SU, TS218SU, and TS183SU.
What hardware do I need to mount to an 8x6 I-Beam?
To attach the FCAVCA to an 8" x 6" I-Beam, you will need the Chief FCAVCSU80 Square U-Bolt Set.
What hardware is required for 1.5 to 2 inch poles?
For installation on 1.5-2.0" poles, use the FCAVCU20 2" U-Bolt Set.
Can this adapter be used for portrait orientation?
Yes, the FCAVCA supports both landscape and portrait display orientations.
What is the maximum weight capacity for this adapter?
The FCAVCA is rated for a weight capacity of 200 lbs (90.7 kg).
