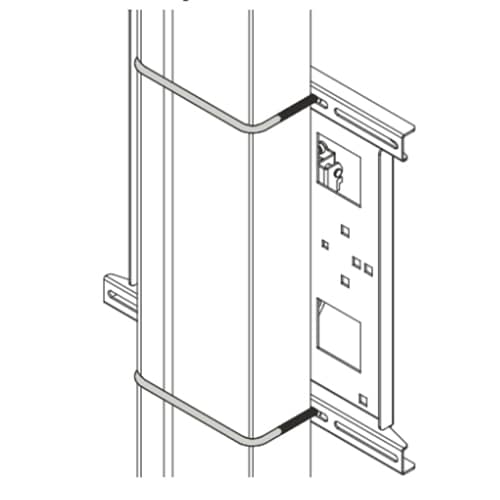

Square 8" x 6" U-Bolt Set
Square 8" x 6" U-Bolt Set for securing FCAVCA adapters to 8-inch rectangular columns or steel I-beams
The Chief FCAVCSU80 is a set of two U-Bolts designed to facilitate the mounting of FCAVCA adapters in large venue or multi-display environments. This hardware set allows installers to secure the FCAVCA adapter directly to rectangular structures, specifically 8” x 6” steel I-beams or 8” x 6” concrete columns. The kit is engineered to accommodate column dimensions with a maximum diameter of 2" (50 mm). By utilizing this U-bolt set, integrators can expand the mounting capabilities of the Column Mount Adapters series beyond standard circular profiles, providing more versatile installation options for complex architectural environments. This TAA compliant hardware ensures the components meet necessary procurement requirements for government or regulated projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9" x 9" x 4" (228.6 x 228.6 x 101.6 mm) |
| Shipping Weight | 1.71 lbs (0.8 kg) |
| Accessory Type | InstallationMounting BracketsMounting Hardware |
| Adjustability | AutomatedExtensionFixedHeight AdjustableLateral ShiftMicro-AdjustableSwivelTilt |
| Application | Square 8” x 6” U-Bolt Set |
| Special Features | Large VenueMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872173306 |
| Certifications | TAA |
Resources
Questions about this part
What do I need to purchase to use the FCAVCSU80?
The FCAVCSU80 is a mounting hardware set that requires the FCAVCA adapter to complete the installation.
Will this fit an 8-inch I-beam?
Yes, this set is specifically designed for 8” x 6” steel I-beams or 8” x 6” concrete columns.
Can this be used on circular columns?
This specific U-bolt set is for rectangular applications; it supports column diameters up to a 2" (50 mm) maximum.
Is this product TAA compliant?
Yes, the FCAVCSU80 is TAA compliant.
What documents are available for submittals?
You can access the FCAVCSU80 Technical Drawing (PDF) and the CAD Drawing (dwg) for your submittal package.
