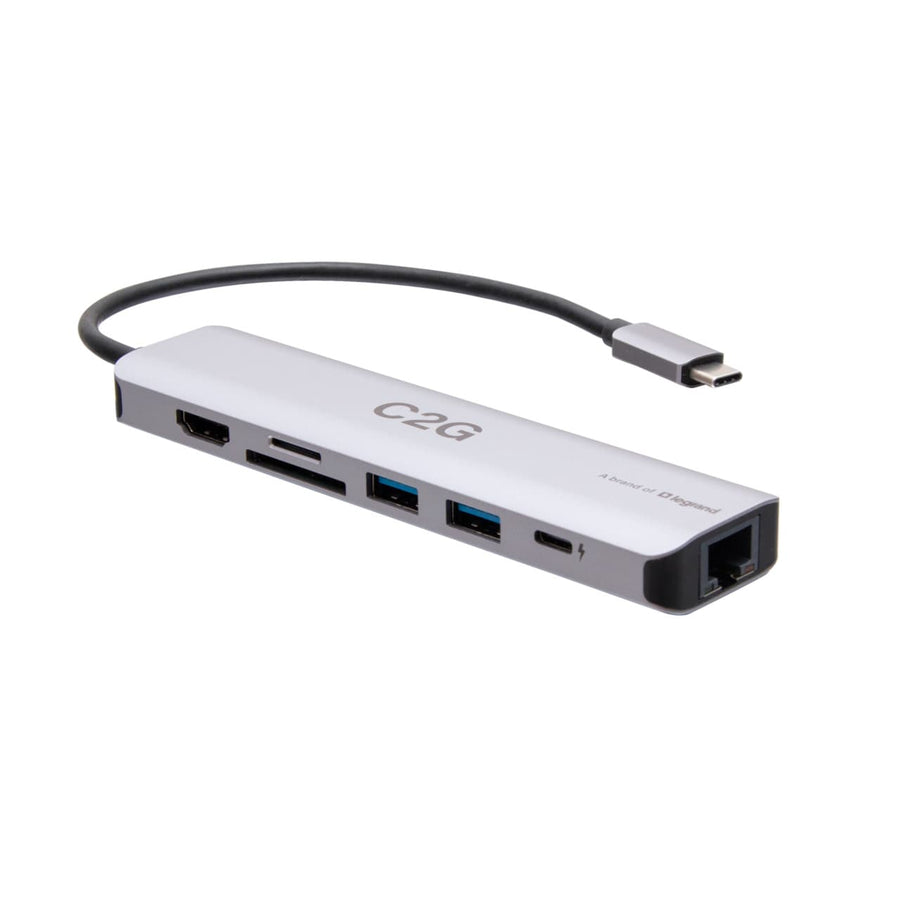

USB-C® to HDMI®, USB-A, SD Card Reader, Ethernet, and USB-C® Mini Docking Station – 4K 60Hz - Gray
6-in-1 USB-C mini docking station supporting 4K @ 60Hz video and 100W Power Delivery
The C2G C2G58888 is a versatile 6-in-1 mini docking station designed to expand the connectivity of your USB-C devices for professional or mobile use. This compact hub provides a high-resolution video output via HDMI, supporting resolutions up to 4K @ 60Hz for clear, fluid imagery. For data and peripherals, it features two USB 3.0 A female ports capable of a 10 GBPS data transfer rate and a USB-C 3.2 female port. The device includes an integrated SD card reader that allows for simultaneous operation of SD and Micro SD cards, making it efficient for media professionals. Networking is handled through an RJ-45 female Gigabit Ethernet port supporting 10M/100M/1000M speeds. Additionally, the hub supports USB-C Power Delivery, allowing you to charge your device with up to 100W (20V/5A) through the single USB-C male connector.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 6.6 in (16.8 cm) |
| Depth | 1.34 in (3.4 cm) |
| Height | 0.55 in (1.4 cm) |
| Length | 6.6 in (16.8 cm) |
| Power Delivery | 100 W |
| Product Weight | 0.22 lbs (0.1 kg) |
| Shipping Weight | 0.41 lbs (0.2 kg) |
| USB Wattage | 100 W |
All other specifications 14
| Voltage | 20 V |
| Width | 5.36 in (13.6 cm) |
| Color | Gray |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) HDMI Female(1) RJ-45 Female(1) SD Card Reader(1) USB-C 3.2 Female(2) USB 3.0 A Female |
| Connector Type | USB |
| Product Type | Docking Station |
| UPC | 757120588887 |
| Video Input Support | USB-C |
| Video Output Support | HDMI |
| Video Resolution | 4K @ 60Hz |
| Certifications | CEFCCREACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
6.6ft (2m) USB 2.0 A/B Cable - Black
CG28102$8.99
9.8ft (3m) USB 2.0 A/B Cable - Black
CG28103$9.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
12ft (3.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10379$89.99
25ft (7.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10382$139.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28832$26.99
1.5 ft Thunderbolt™ 3 Cable (40Gbps)
CG28840Discontinued
Questions about this part
Will the C2G58888 support 4K video output?
Yes, this docking station supports HDMI output with a maximum resolution of 4K @ 60Hz.
What is the maximum power delivery supported by this dock?
The C2G58888 supports USB-C Power Delivery charging up to 100W at 20V/5A.
Does this hub support simultaneous SD and Micro SD card usage?
Yes, the integrated card reader allows both SD and Micro SD cards to work simultaneously.
What data transfer speeds can I expect from the USB ports?
The device features a 10 GBPS data transfer rate and includes two USB 3.0 A female ports.
Can I use this for a wired network connection?
Yes, the hub includes an RJ-45 female port for Gigabit Ethernet, supporting 10M, 100M, and 1000M speeds.
