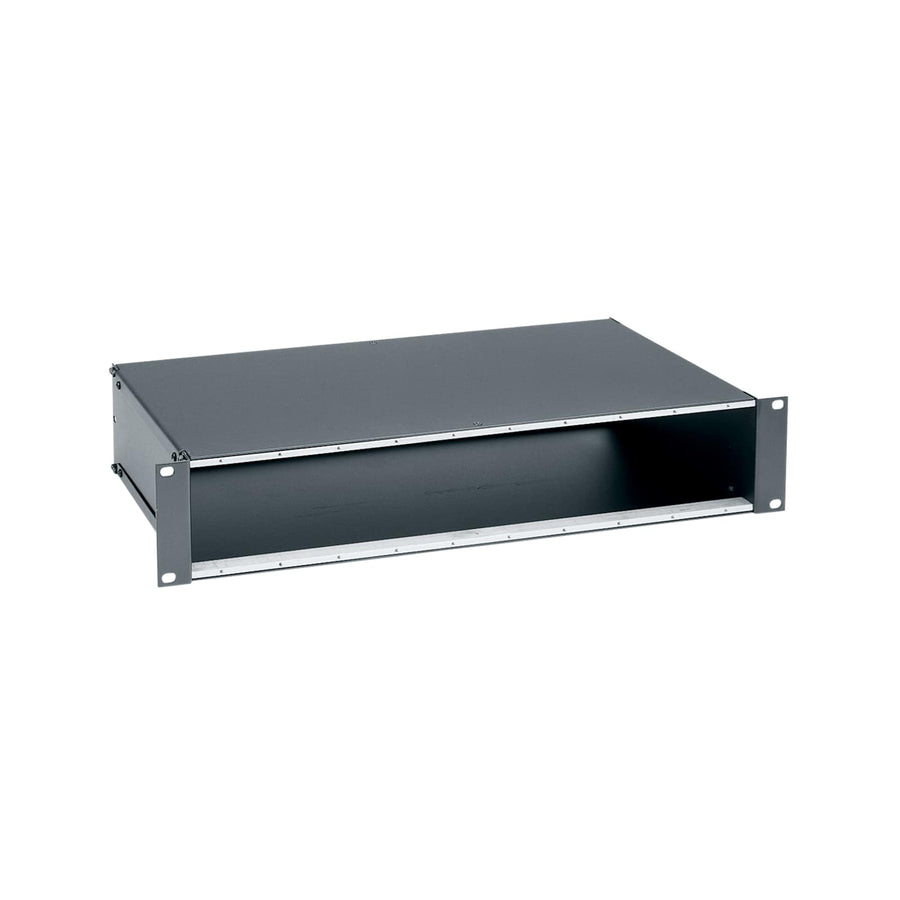

UCP Series Chassis Holds 10 UCP Modules
2 RU chassis for UCP modules, supporting 5 modules in the front and 5 in the rear for high-density connectivity
The Middle Atlantic UCP-CH is a 2 RU chassis designed to maximize rack space by housing up to 10 UCP modules. This chassis utilizes a dual-sided configuration, accommodating 5 modules in the front and 5 modules in the rear. It ships fully assembled, featuring four threaded FK bars and a pair of 9" deep ears at the top and bottom. To facilitate easier installation and maintenance, the top and bottom sections can be removed, leaving the main frame intact. This unit is TAA compliant and includes the necessary hardware required for module mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 9 in (22.9 cm) |
| Height | 3.5 in (8.9 cm) |
| Package Count | 1 |
| Rack Units | 2 RU |
| Shipping Weight | 8.35 lbs (3.8 kg) |
| Width | 19 in (48.3 cm) |
| Color | Black |
| UCP Module Capacity | 10 |
| UPC | 656747022852 |
Resources
You'll need these with it
UCP Module with Six XLR Female Punchouts
UNIV6$27.00
UCP Module with Three XLR Female Punchouts
UNIV3$27.00
UCP Module with Two XLR Female Punchouts
UNIV2$27.00
UCP Module with 3 Bolt Twistlock Punchout
TW3B$27.00
UCP Module without XLR Female Punchouts
UNIV1$27.00
UCP Blank Module Vented
UCP-VT$25.20
UCP Module with 2 Bolt Twistlock Punchout
TW2B$27.00

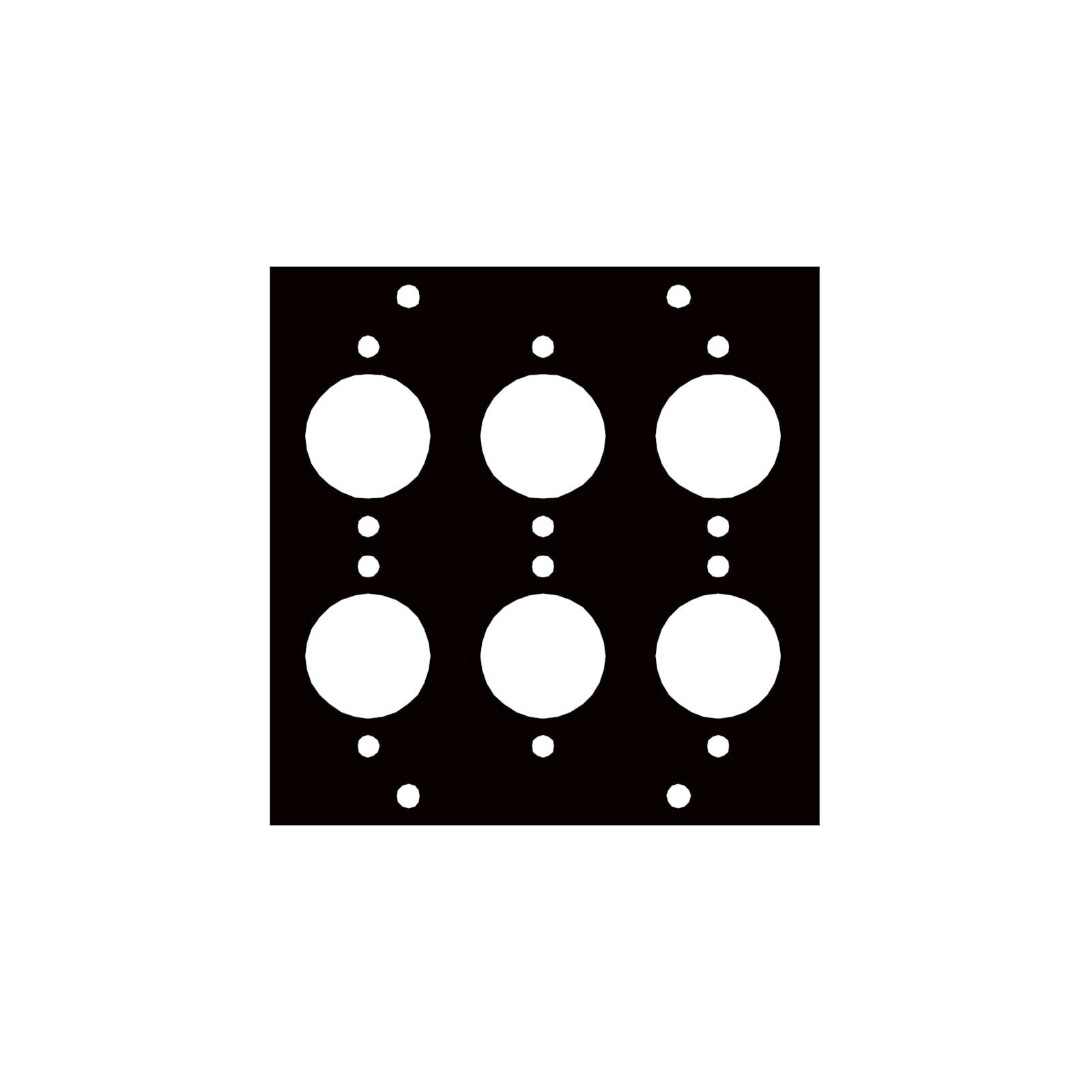

UCP Module with XLR Male Punchouts
XLRM6$27.00
UCP Module with Four XLR Female Punchouts
UNIV4$27.00

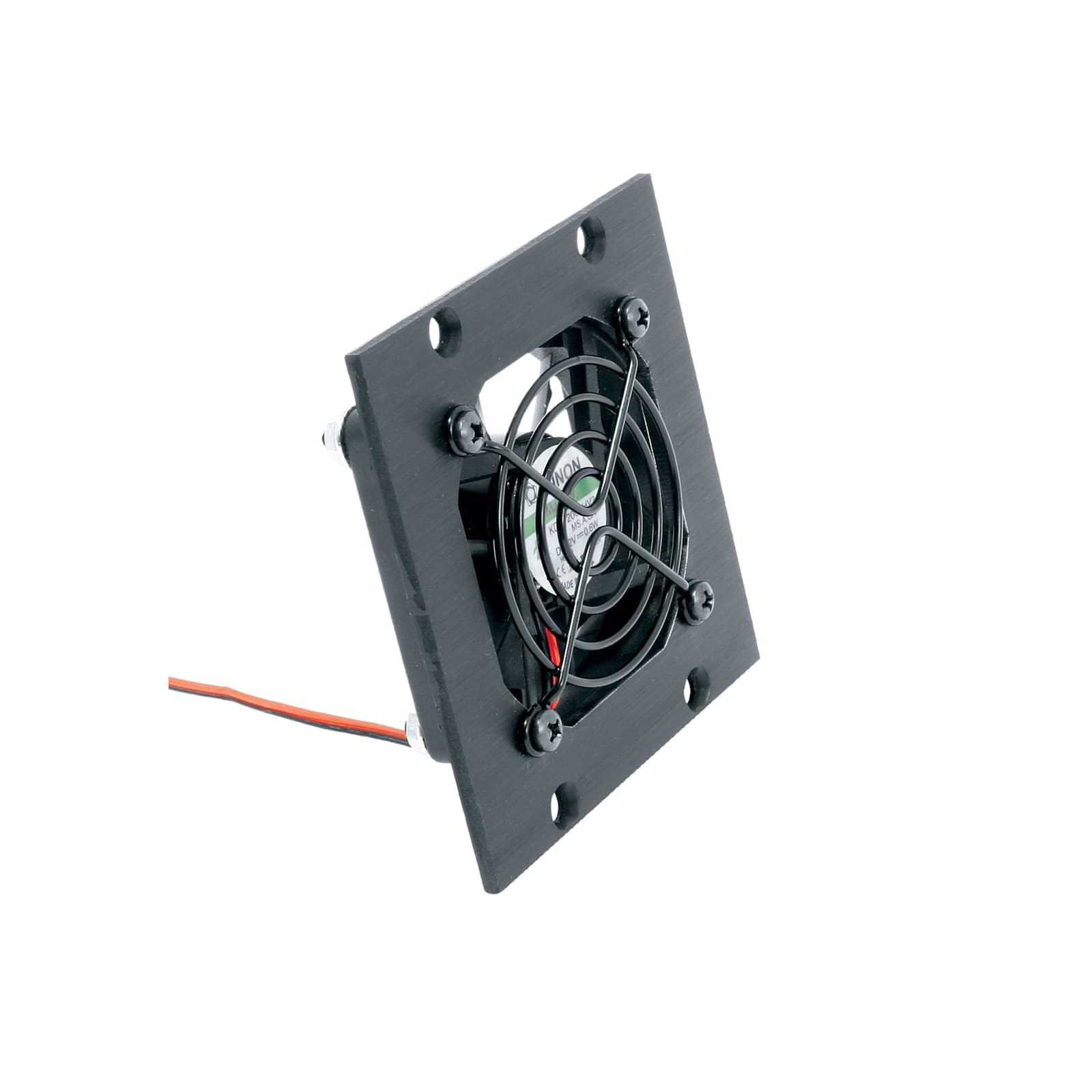

UCP Series Fan 15 CFM Mounts to Frame Kits
UCP-FAN$118.80
UCP Blank Module Triple Width
UCPB3$55.80
UCP Module with Socapex 19 Pin Punchout
SPX-19$27.90
Questions about this part
How many modules can I install in the UCP-CH?
The UCP-CH chassis holds a total of 10 modules, with 5 modules positioned in the front and 5 modules positioned in the rear.
What modules are compatible with this chassis?
This chassis is compatible with a wide range of UCP modules, including UNIV1 through UNIV6, KEY-1 through KEY-6, and various specialized punchout modules like the SPX-19 Socapex or TW2B/TW3B Twistlock modules.
Does the UCP-CH ship assembled?
Yes, the UCP-CH is shipped fully assembled and includes all the necessary hardware required to mount your modules.
How can I service the chassis once it is mounted?
The top and bottom of the chassis can be easily removed, which leaves the main frame intact for easier access during servicing.
Is this chassis TAA compliant?
Yes, the UCP-CH is TAA compliant.
