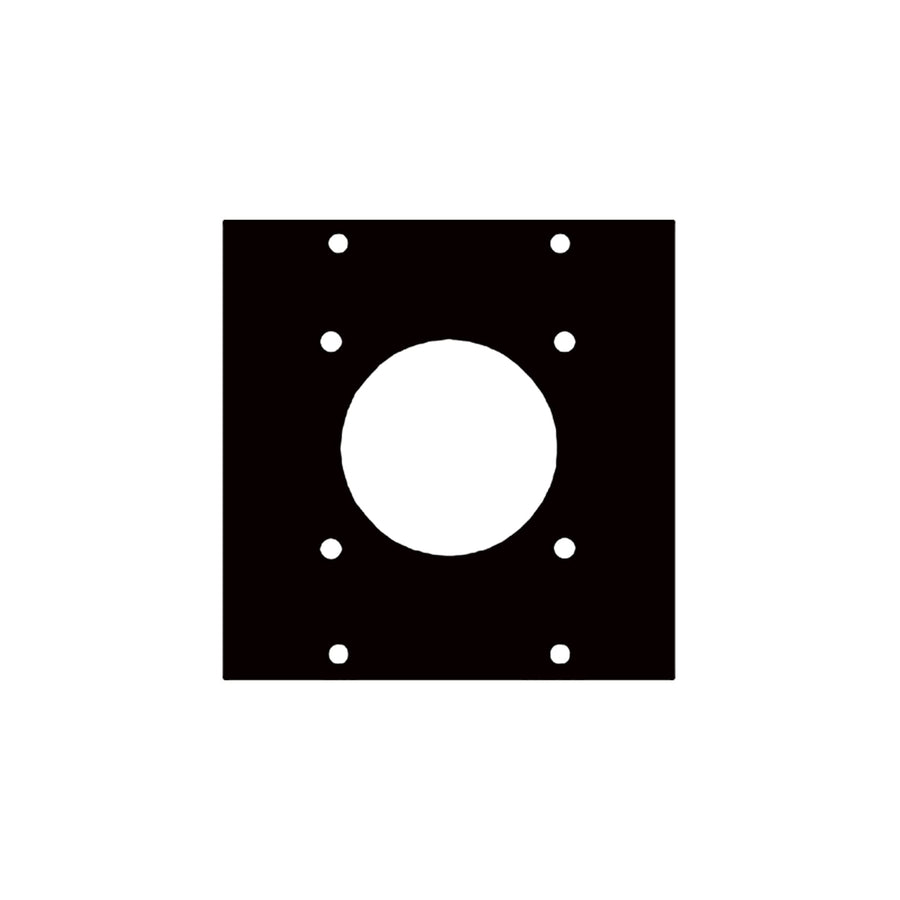

UCP Module with Socapex 19 Pin Punchout
UCP modular panel insert with Socapex 19-pin punchout for use in Middle Atlantic UCP series frames
The SPX-19 is a UCP Module with a Socapex 19-pin punchout designed for professional integration into modular panel systems. This specific module allows for the installation of 19-pin Socapex connectors within a customized rack or wall configuration. To utilize this module, it must be installed into one of the compatible Middle Atlantic base series, which includes the FK2, FK4, UCP-CH, UCP-CT, or UCP-SF. The module is constructed from aluminum with a black brushed and anodized finish. This component is TAA compliant and is intended for use within UCP Series frame kits, swinging frames, chassis, or cable trays. Please note that this product is scheduled to be discontinued on October 1, 2026.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 1 |
| UPC | 656747021800 |
Questions about this part
What series is the SPX-19 compatible with?
The SPX-19 is designed to fit within the FK2, FK4, UCP-CH, UCP-CT, or UCP-SF base series frames, including swinging frames and cable trays.
What is the purpose of the SPX-19 module?
The SPX-19 serves as a UCP module providing a punchout for a 19-pin Socapex connector within your modular panel system.
Is the SPX-19 TAA compliant?
Yes, the SPX-19 is TAA compliant, making it suitable for specific procurement requirements.
What are the dimensions of this module?
The module measures 3.39 in (8.6 cm) in width, 3.49 in (8.9 cm) in height, and 0.13 in (0.3 cm) in depth.
Has this part been discontinued?
This product is scheduled for discontinuation on October 1, 2026; Wiremold communication accessories are suggested as alternatives.
