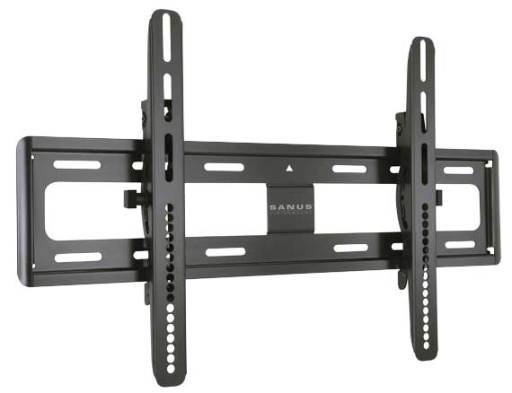

Tilting Wall Mount; For 32" - 85" flat-panel TVs - VMPL50A-B1
Tilting wall mount for 32" - 85" displays, 150 lbs capacity, with tilt, lateral shift, and leveling adjustments
The Sanus VMPL50A-B1 is a tilting wall mount designed for 32" - 85" flat-panel TVs, supporting displays up to 150 lbs (68 kg). This heavy-gauge steel mount utilizes the Virtual Axis® tilting system, which allows users to adjust the viewing angle with a finger-touch without needing tools. It features a 4.5 in (11.4 cm) distance from the wall, providing a clean profile while maintaining enough clearance for servicing. For installers managing off-center studs, the expandable TV brackets allow for lateral shift to ensure perfect horizontal placement. The ProSet® system provides both post-installation height and leveling adjustments to ensure the display is perfectly positioned after it is hung. The unit includes a locking system to secure the TV to the wall, and the connection is audible as the TV clicks into place for a safe, secure fit. This mount is UL Listed for safety.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 4.5 in (11.4 cm) |
| Height | 18.5 in (47 cm) |
| Product Weight | 11.55 lbs (5.2 kg) |
| Shipping Dimensions | 31.61" x 7.48" x 2.56" (802.9 x 190 x 65.1 mm) |
| Shipping Weight | 9.32 lbs (4.2 kg) |
| Typical Screen Size | 32" - 85" (82cm- 216cm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 30 in (76.2 cm) |
All other specifications 9
| Adjustability | Lateral ShiftTilt |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete InstallationsAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Tilt | +9° / -10° |
| Universal Mounting | Yes |
| UPC | 793795521965 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm600 x 100mm600 x 200 mm600 x 300mm600 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus VMPL50A-B1 fit my display?
This mount is verified to fit 32" - 85" displays with VESA patterns ranging from 100 x 100mm up to 600 x 400mm.
What tools do I need for installation?
Required tools include an electric drill, level, tape measure, stud finder, pencil, Phillips head screwdriver, hammer, 1/2" socket wrench, and a 3/8" masonry bit for concrete installations.
How do I adjust the TV once it is mounted?
The mount features tool-free adjustments for tilting (+9° / -10°) and lateral shifting, plus ProSet® height and leveling adjustments.
Can I adjust the TV if my wall studs are not centered?
Yes, the expandable brackets allow for lateral shift, enabling you to slide the TV left or right for perfect placement over off-center studs.
Which document should I use for the submittal?
The VMPL50A - Technical Drawing (PDF) is available for submittal and detailed dimensional reference.
