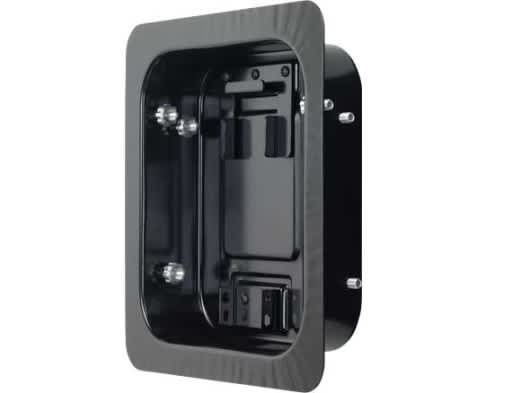

In-Wall Box for use with VSF415, LRF118 and MF215 - LR1A-B1
Recessed in-wall mounting box for 15"-65" displays, supports Sanus VSF415, LRF118, and MF215 mounts
The Sanus LR1A-B1 is an in-wall box designed to enable a flush-to-wall mounting profile for flat-panel TVs. By recessing the mounting hardware inside the wall, this solution allows a TV to sit as close to the surface as possible while concealing unsightly cables. This specific SKU is intended for use with Sanus VSF415, LRF118, and MF215 full-motion mounts. When these mounts are paired with the LR1A, they feature a 4.6" (11.68 kg) offset to the left of center. The box is constructed from heavy-gauge steel with a black finish and features integrated knockouts at the bottom for 110-Volt outlets and power cables. For installation, the box is designed to be set into a cutout in sheetrock between wood studs. It utilizes Sanus Quick Shims® to allow the installer to level the box and secure it firmly in place during the installation process. This UL Listed component is rated for a weight capacity of 130 lbs (59 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 17.5 in (44.5 cm) |
| Package Depth | 17 in (43.2 cm) |
| Package Height | 3.75 in (9.5 cm) |
| Package Width | 18.5 in (47 cm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Typical Screen Size | 30" - 65" (76cm - 165cm) |
| Weight Capacity | 130 lbs (59 kg) |
| Width | 16.75 in (42.5 cm) |
All other specifications 8
| Accessory Type | Mounting Hardware |
| Application | Wall |
| Color | Black |
| Installation Items | 1/8" Drill Bit7/16" Socket WrenchAwlDrywall SawElectric DrillHand SawLevelPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Universal Mounting | No |
| UPC | 793795362186 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm |
| Certifications | UL Listed |
Resources
Questions about this part
Which Sanus mounts are compatible with the LR1A-B1?
The LR1A-B1 is designed specifically for use with the Sanus VSF415, LRF118, and MF215 mount models.
What is the weight capacity of this in-wall box?
This recessed box is rated for a weight capacity of 130 lbs (59 kg).
What tools are required for installing the LR1A-B1?
Installation requires an electric drill, 1/8" drill bit, 7/16" socket wrench, wrench, awl, drywall saw, hand saw, level, pencil, Phillips head screwdriver, and a stud finder.
Does this box support VESA mounting patterns?
Yes, it is compatible with VESA patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm.
How does the mount offset change when using this box?
When using the LR1A with compatible mounts, the assembly has an offset of 4.6" to the left of center.
